High Voltage Transformer Bobbin 5+5 Pin EE19 Horizontal Bobbin

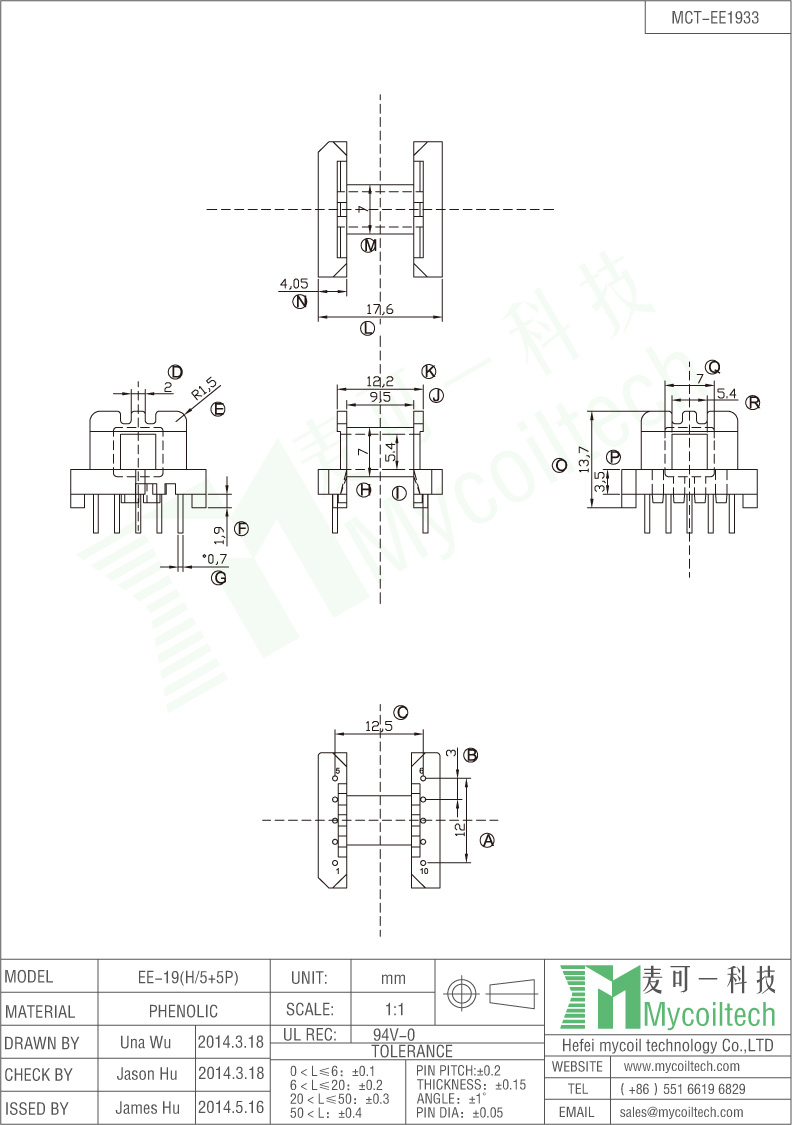

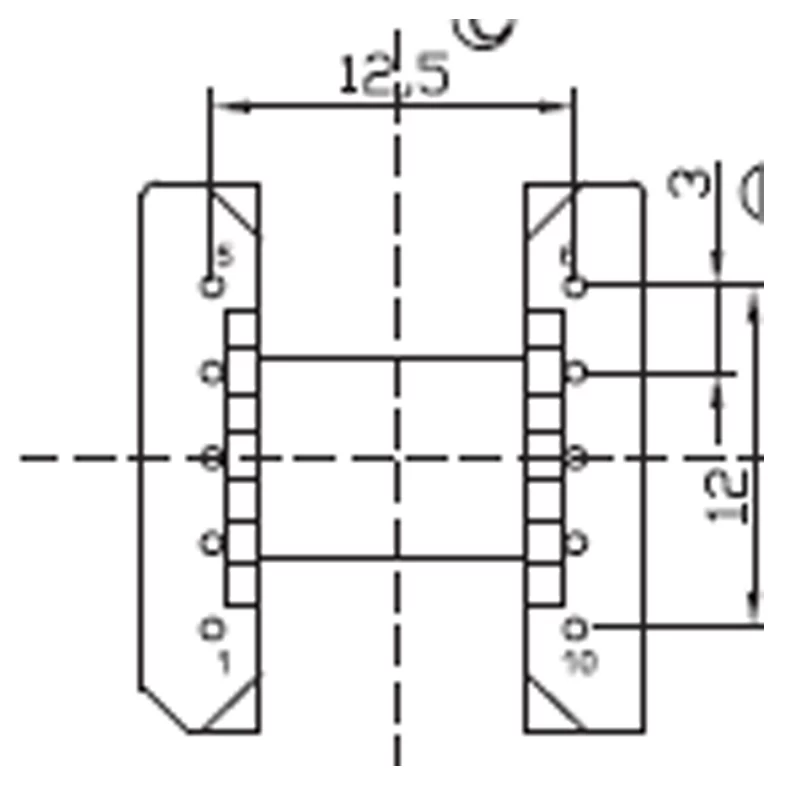

EE type EE19 transformer bobbin. Horizontal EE19 transformer bobbin. 5+5 pin coil former. Phenolic material bobbin. Pin Pitch=3mm, Parallel Distance=12.5mm. DIP bobbin. UL REC:94V-0.



China bobbin factory hot selling EE19 series transformer bobbins, 5+5 pin EE19 horizontal transformer bobbinIf you need customized bobbins, we can design for you and samples also available.


Quick Details

Part Number: MCT-EE1933(H5+5P)

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity


Part Information

Product Name: High Voltage Transformer Bobbin 5+5 Pin EE19 Horizontal Bobbin

Product Range: Transformers, filter inductors, coils, bobbins, magnetic cores.

Applications: switching power supply transformers, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.


Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu


Product Specification

EE19 horizontal coil former 5+5 pin transformer bobbin
