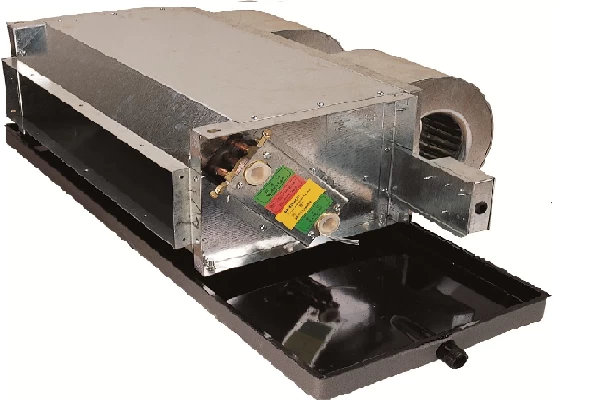

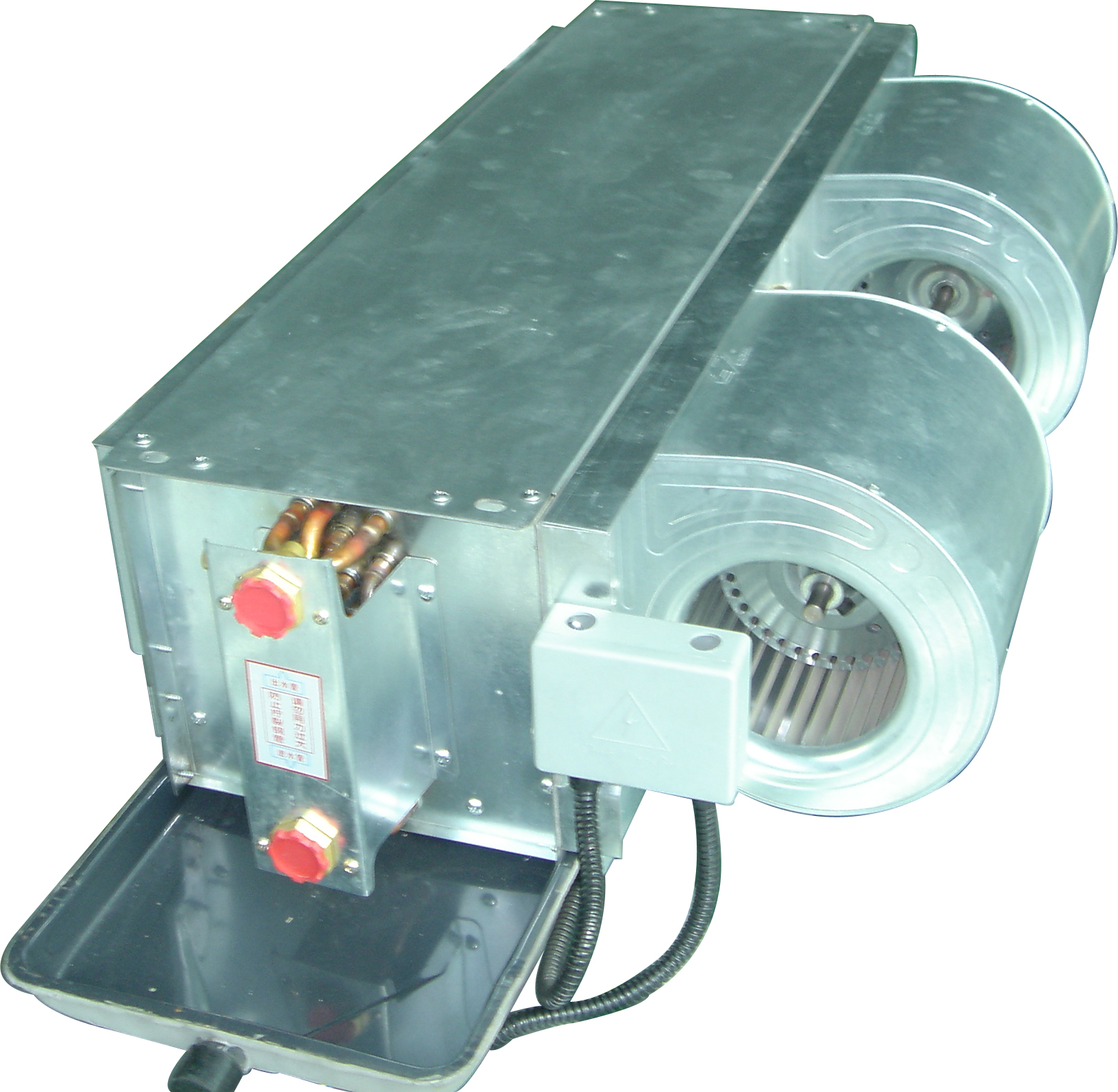

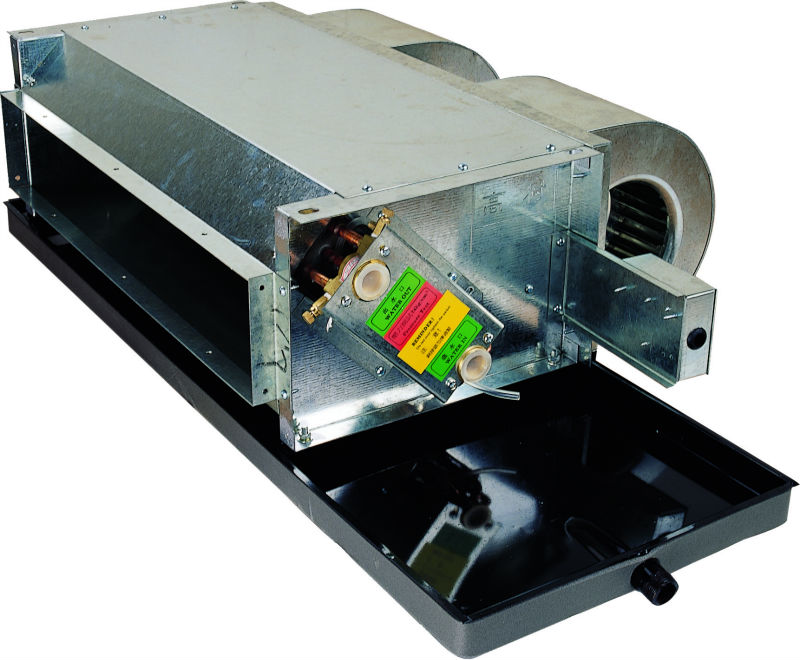

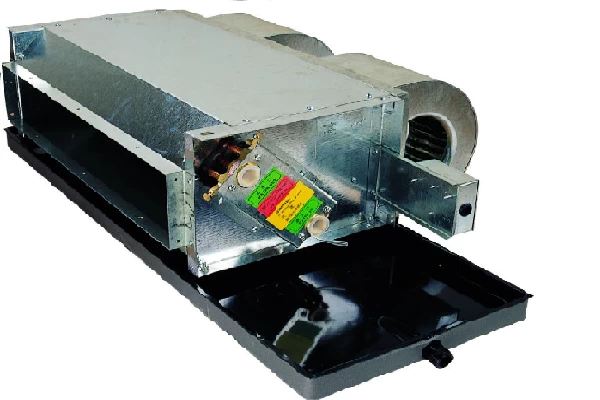

Horizontal Ceiling Concealed Mounted Fan Coil Unit

chiller water fan coil unit for heating and cooling

1. Cooling capacity scope: 3kw -----14kw

Air flow volume: 470m3/h-----3070m3/h



Horizontal Ceiling Concealed Mounted Fan Coil Unit

HStars Fan Coil Unit include 10 standard models, each model has 2 kinds of products (standard and high static type). The products can meet the requirement of different installation environments as hotels, supermarket, villas, hospitals, airports, underground, broadcasting stations. It is the first choice for terminal devices of Air conditioning system.

Horizontal Ceiling Concealed Mounted Fan Coil Unit


Features:-Horizontal Ceiling Concealed Mounted Fan Coil Unit

1. Cooling capacity scope: 3kw -----14kw

Air flow volume: 470m3/h-----3070m3/h

2. Products are load changeable, equipped with automatic temperature-control systems as electric valve, temperature-controllers.

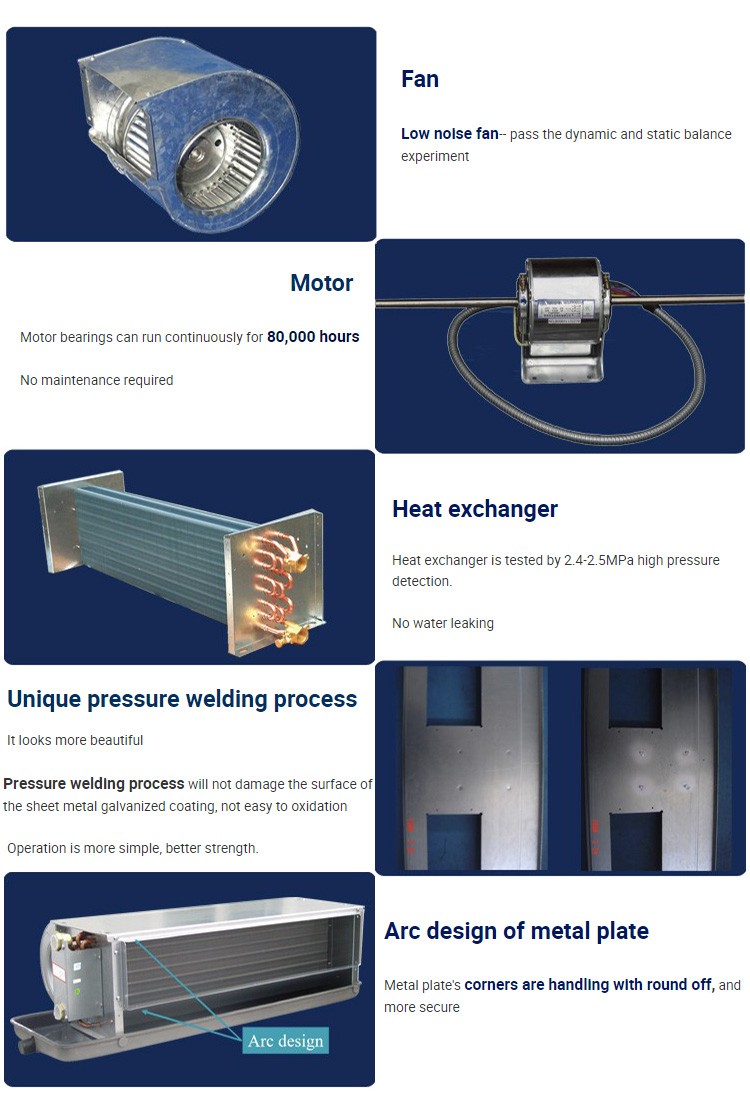

3. The unit is made of rigid galvanized steel sheet; the blade of fan is metal, forward curved, centrifugal type with double inlet, PCS motor and oil-less ball bearings. It can run smoothly with low noise and power consumption. It has a normal operation life of more than 10 years with convenience of maintenance.

4. The coil tubes are made of seamless copper tubes and aluminum fins through mechanical expansion and rolling process. The coils are made with the fins in the shape that can effectively stir and air flow.

5. Easy to dissemble and convenient to clear and maintenance .Direction of in-out water pipe installation can be easily changed.

6. The stand two-pipe system adopts 3-row coil, while the four-pipe separated system adopts 3-row coil

7. A model with return-air pipe is available.


Horizontal Ceiling Concealed Mounted Fan Coil Unit





 Horizontal Ceiling Concealed Mounted Fan Coil Unit
