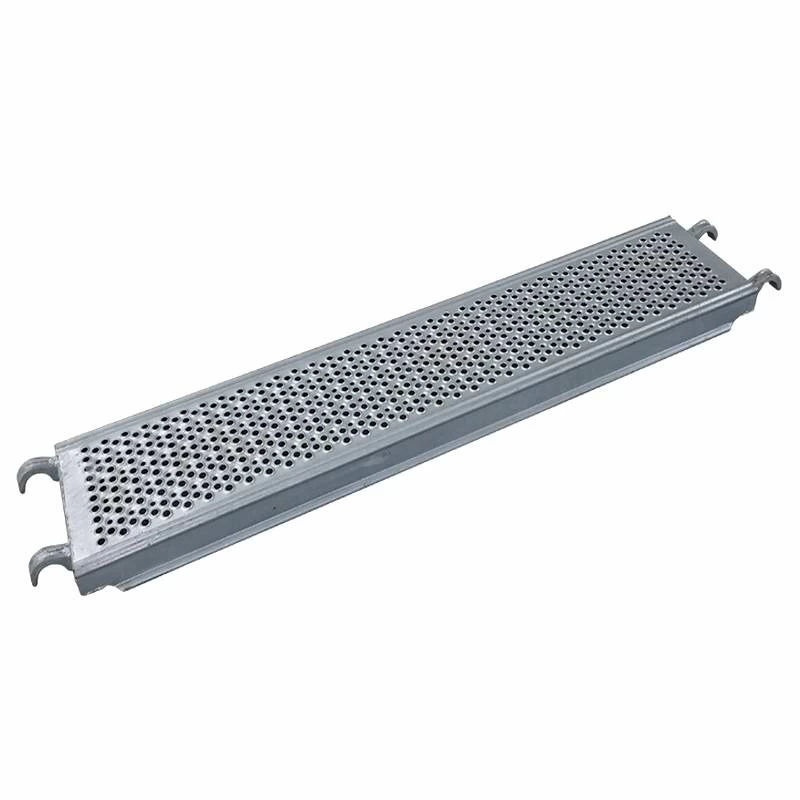

European Type Steel Plank, 320mm wide, for O-ledger
|
Code
|
Size (Metric)
|
Size (Imperial)
|
Weight(kg)
|
Weight(lbs)
|
|
SP4.32307
|
320x3072mm
|
12.6" x 10'-31/32"
|
27.96
|
61.65
|
|
SP4.32257
|
320x2572mm
|
12.6" x 8'-5 1/4"
|
23.83
|
52.55
|
|
SP4.32207
|
320x2072mm
|
12.6" x 6'-9 9/16"
|
19.70
|
43.44
|
|
SP4.32157
|
320x1572mm
|
12.6" x 5'-1 7/8"
|
15.58
|
34.35
|
|
SP4.32140
|
320x1400mm
|
12.6" x 4'-7 1/8"
|
14.16
|
31.22
|
|
SP4.32129
|
320x1286mm
|
12.6" x 4'-2 5/8"
|
13.22
|
29.15
|
|
SP4.32109
|
320x1088mm
|
12.6" x 3'-6 27/32"
|
11.58
|
25.53
|
|
SP4.32104
|
320x1036mm
|
12.6" x 3'-4 25/32"
|
11.15
|
24.59
|
|
SP4.32102
|
320x1020mm
|
12.6" x 3'-4 3/16"
|
11.02
|
24.3
|
|
SP4.32088
|
320x880mm
|
12.6" x 2'-10 21/32"
|
9.87
|
21.76
|
|
SP4.32073
|
320x732mm
|
12.6" x 2'-4 13/16"
|
8.65
|
19.07
|
Material: Steel grade Q235. Plank width 320mm, height 76mm,thickness 1.8mm.
Surface Treatment: Hot dip galvanized is recommended, pre-galvanized, powder coated or painted is also available.
Other thickness 1.5mm is available by request.
Beside, this plank has another width 190mm, which to be combined with 320mm wide planks to fill up the working platform.
European Type Steel Plank, 190mm wide, for O-ledger
|
Code
|
Size (Metric)
|
Size (Imperial)
|
Weight(kg)
|
Weight(lbs)
|
|
SP4.19307
|
190x3072mm
|
7.5" x 10'-31/32"
|
21.95
|
48.4
|
|
SP4.19257
|
190x2572mm
|
7.5" x 8'-5 1/4"
|
18.74
|
41.32
|
|
SP4.19207
|
190x2072mm
|
7.5" x 6'-9 9/16"
|
15.54
|
34.27
|
|
SP4.19157
|
190x1572mm
|
7.5" x 5'-1 7/8"
|
12.33
|
27.19
|
|
SP4.19140
|
190x1400mm
|
7.5" x 4'-7 1/8"
|
11.22
|
24.74
|
|
SP4.19129
|
190x1286mm
|
7.5" x 4'-2 5/8"
|
10.49
|
23.13
|
|
SP4.19109
|
190x1088mm
|
7.5" x 3'-6 27/32"
|
9.22
|
20.33
|
|
SP4.19104
|
190x1036mm
|
7.5" x 3'-4 25/32"
|
8.89
|
19.6
|
|
SP4.19102
|
190x1020mm
|
7.5" x 3'-4 3/16"
|
8.79
|
19.38
|
|
SP4.19088
|
190x880mm
|
7.5" x 2'-10 21/32"
|
7.89
|
17.4
|
|
SP4.19073
|
190x732mm
|
7.5" x 2'-4 13/16"
|
6.94
|
15.3
|
Material: Steel grade Q235. Plank width 190mm, height 76mm,thickness 1.8mm.
Surface Treatment: Hot dip galvanized is recommended, pre-galvanized, powder coated or painted is also available.
Other thickness 1.5mm is available by request.
