The HOWO Dry Powder Fire Truck is a professional firefighting vehicle specifically engineered to tackle special-class fires. It integrates a dry powder suppression system, high-pressure water pump, and nitrogen propulsion system, making it ideal for industrial settings such as chemical plants, power stations, and oil depots. Based on the Sinotruk SITRAK ZZ5356 heavy-duty chassis, the vehicle measures 10.01 meters in length with a 6×4 drivetrain configuration. Powered by a robust 460 HP MC11.46 engine and boasting a gross weight of 23,800 kg, it stands as a formidable force in industrial firefighting.

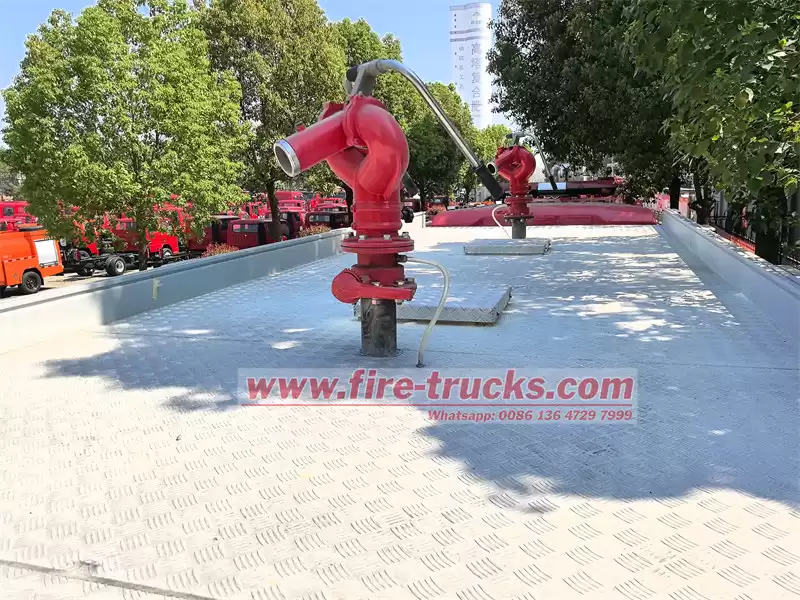

The superstructure of this HOWO Powder Fire Truck is its defining feature. The dual-tank design is a standout innovation—two 3-cubic-meter dry powder tanks can hold a total of 6 tons of extinguishing agent, pressurized by 12 nitrogen cylinders. The PF5-14/40 dry powder cannon serves as the primary firefighting tool, delivering a high-capacity discharge of 40 kg/s within an operational pressure range of 0.5–1.4 MPa. With 360° horizontal rotation and a vertical adjustment range of -45° to 70°, it ensures full fireground coverage. A 30-meter hose reel with a dry powder gun provides flexible close-range firefighting capabilities.
This HOWO heavy-duty fire truck is primarily suited for extinguishing fires in high-risk environments such as petrochemical plants, lithium battery warehouses, and airports. Its dry powder extinguishing agent, being non-conductive and non-corrosive, is particularly effective against electrical fires and chemical blazes. Compared to conventional fire trucks, its advantages include superior extinguishing efficiency, lower reignition risk, and minimal secondary damage.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu road sweeper truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
Product Specifications
|
Vehicle description
|
|
Overall dimension
|
10010×2510×3840 mm
|
|
GVW
|
23800kg
|
|
Curb weight
|
17350kg
|
|
Rated payload
|
25000 kg
|
|
Chassis brand
|
SINOTRUK SITRAK
|
|
Traction type
|
6*4 left hand drive
|
|
Approach/Departure angle
|
19/11°
|
|
Front/rear overhang
|
1492/2418 mm
|
|
Chassis description
|
|
Chassis model
|
ZZ5356
|
|
Cab
|
Double row cabin, 2+4 seats, with A/C
|
|
Wheelbase
|
4300+1400 mm
|
|
Tire specification
|
315/80R22.5 18PR
|
|
Tire quantity
|
10+1
|
|
Engine
|
Engine model
|
MC11.46
|
|
Displacement/output
|
10518 ml
|
|
Output
|
341 kw
|
|
Horse power
|
460 hp
|
|
Max. torqued
|
2200 N.m
|
|
Rated speed
|
1900 rpm
|
|
Gear box
|
Model
|
HW19710
|
|
Number of gears
|
10 forward gears& 2 reverse
|
|
Brake system
|
Type
|
Drum
|
|
Service brake
|
Dual-circuit compressed air brake
|
|
Park brake
|
Power spring brake acting on rear wheel
|
|
Auxiliary brake
|
WEVB
|
|
Axle load
|
Front
|
6280kg
|
|
Rear
|
8760kg/8760kg
|
|
Fuel tanker
|
Type
|
Steel fuel tanker
|
|
Capacity
|
400 L
|
|
Superstructure description
|
|
Powder tank
|
Number of tank
|
2
|
|
Tank capacity
|
3CBM×2
|
|
Fire pump
|
Model
|
CB10/60, normal pressure pump
|
|
Flow
|
60L/s
|
|
Pressure
|
1.0Mpa
|
|
Suction depth
|
7m
|
|

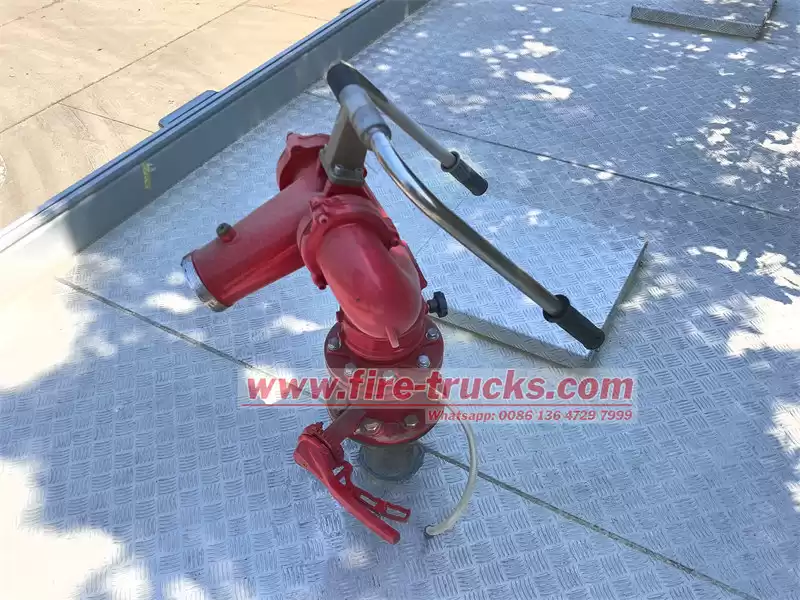

Powder monitor
|
Model
|
PF5-14/40
|
|
Number of monitors
|
2
|
|
Max. working pressure
|
1.4 Mpa
|
|
Working pressure range
|
0.5~1.4 Mpa
|
|
Jetting flow
|
40 kg/s
|
|
Rotation angle
|
Horizontal: 360°
Pitch: -45°~70°
|
|
Hose reel
|
30 meters, DN25, with powder gun
|
|
Number of nitrogen cylinders
|
12
|

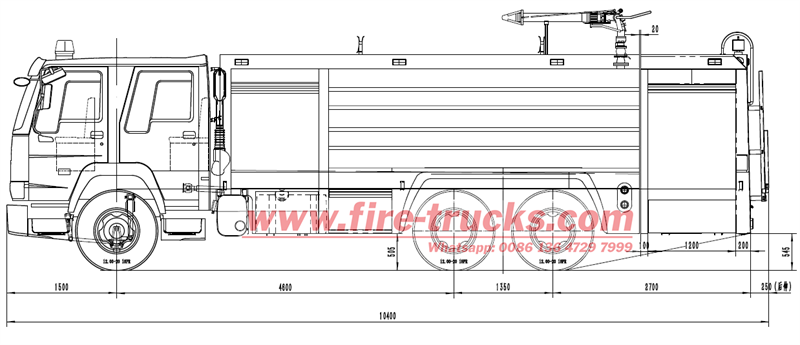

Product Drawing
Product Features
Powerful Performance
Equipped with a high-efficiency engine, it delivers robust power to handle various emergencies with ease.
Professional Design
Engineered in compliance with firefighting standards, its optimized structure ensures efficient and safe rescue operations.
Durable & Reliable
Constructed with wear-resistant materials for long-lasting performance, reducing long-term operational costs. Primarily used for extinguishing fires in power plants, chemical facilities, and oil fields.
