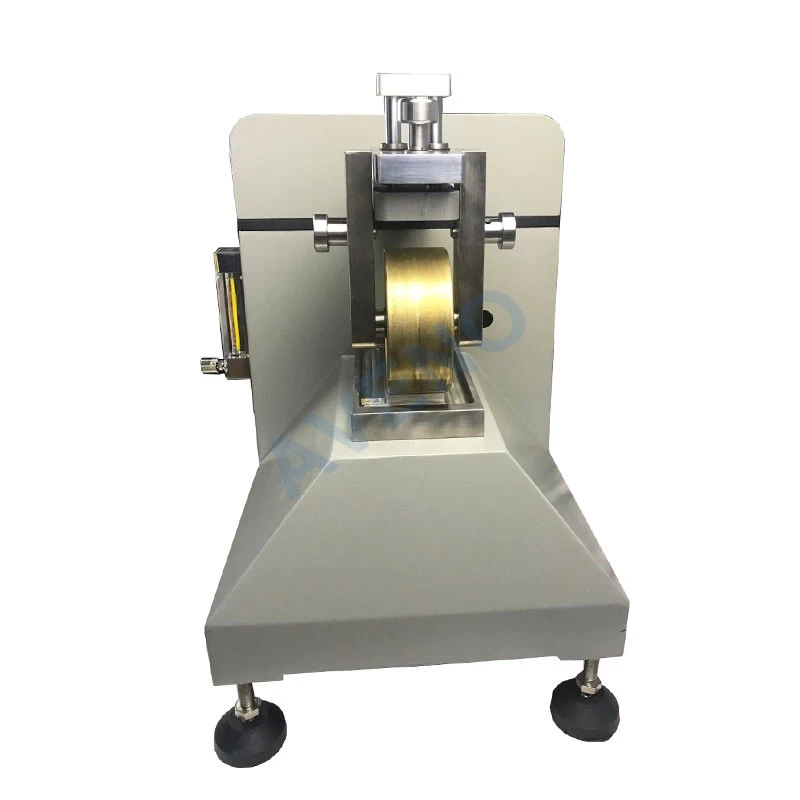

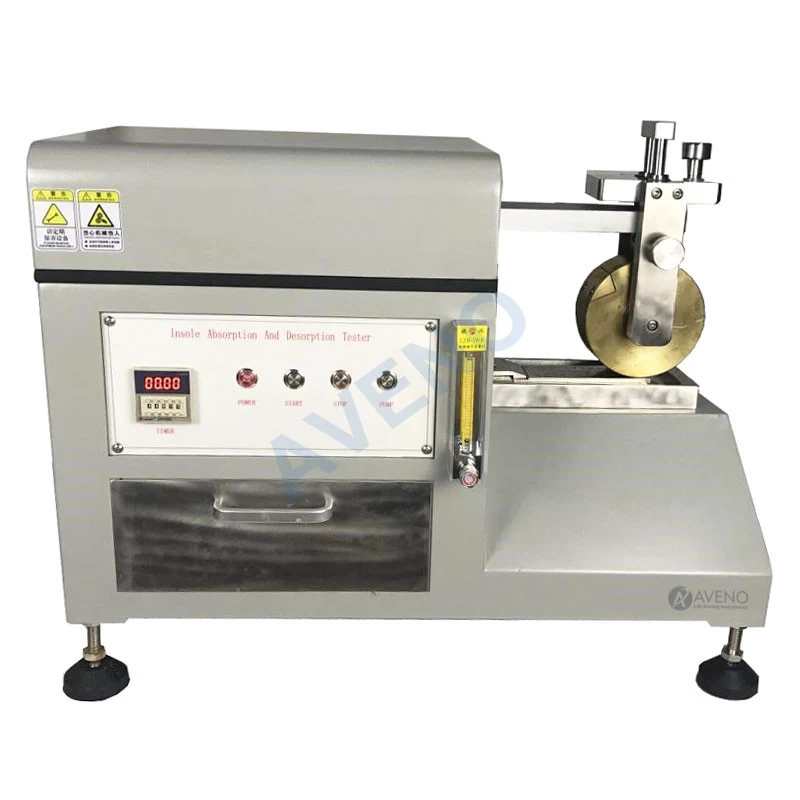

AF39-Insock Absorption And Desorption Tester
Application Of Insock Absorption And Desorption Tester

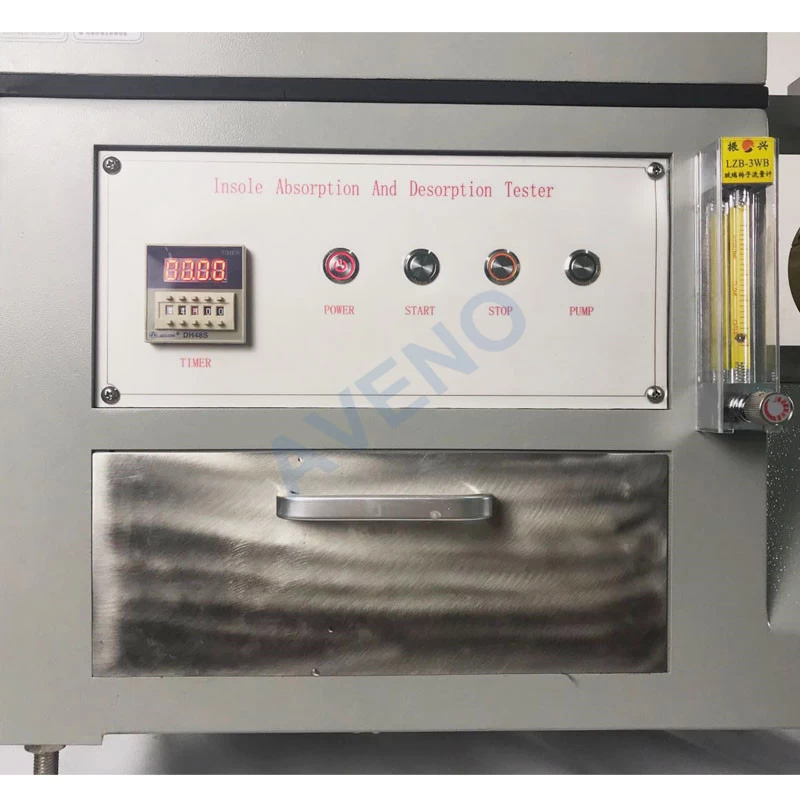

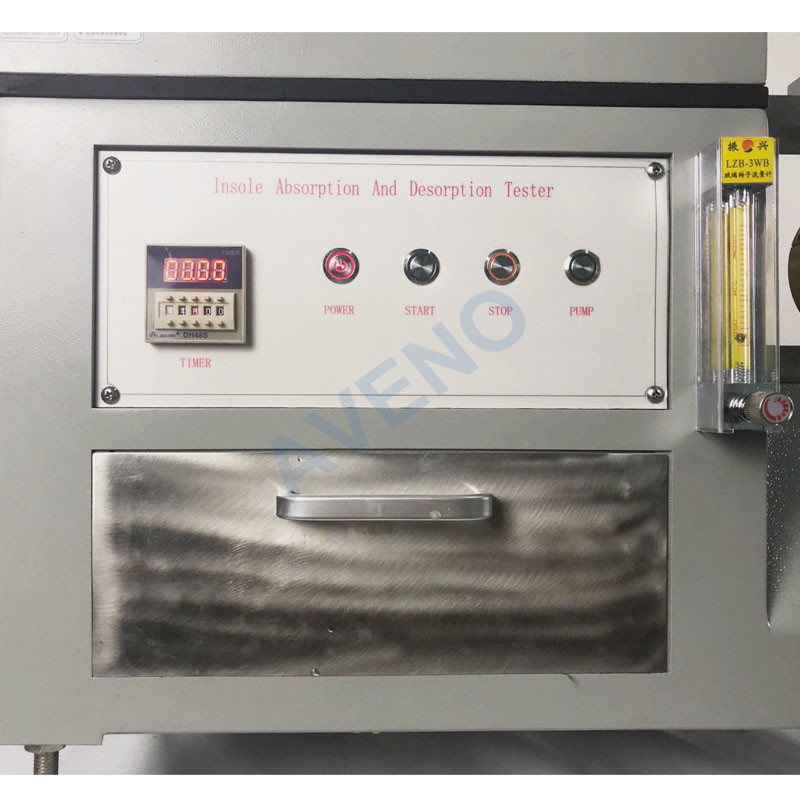

Insock Absorption And Desorption Tester used to test the water absorption and hydrolysis adsorption of the inner soles and linings of shoes. Simulates the flexing process experienced by the insole of the shoe during walking. Lever pressurization, reasonable structural design and easy processing of spare parts, which provides the basis for the improvement material. The water flow rate can be adjusted and the water flow rate can be displayed by the flow meter; the test time can be set, and the machine will stop automatically after the time arrives.
Standards Of Insock Absorption And Desorption Tester
EN ISO20344, EN ISO 20347, GB/T 20991, QB/T 2225, EN 12746:2000, GB/T 3903.33, ISO 22649:2003, ISO 5404, AS/NZS 2210.2
Key Specification Of Insock Absorption And Desorption Tester
|
Model
|
AF39 Insock Absorption
And Desorption Tester
|
|

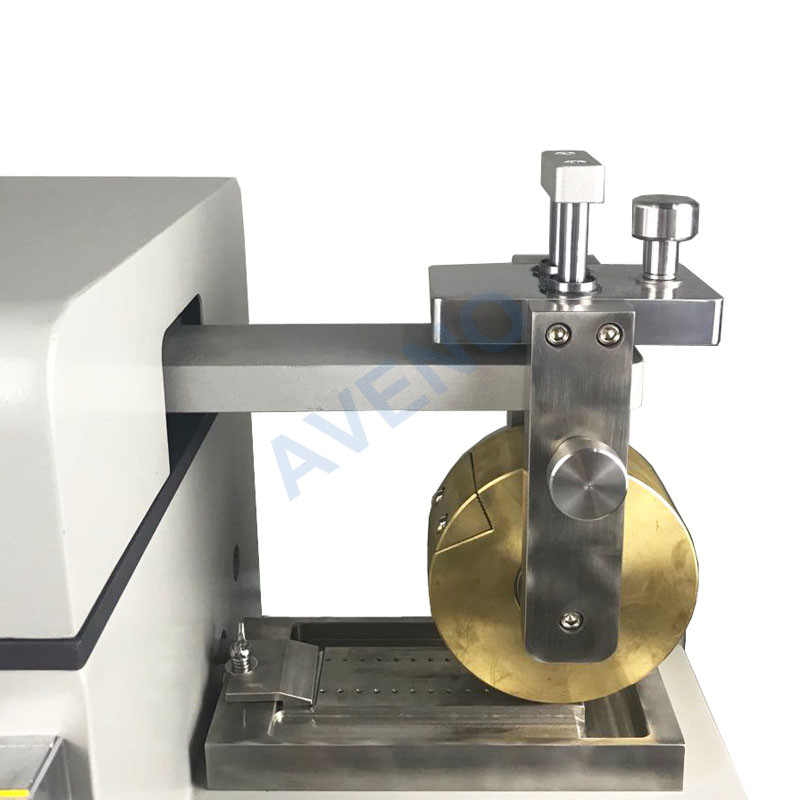

Roller
|
Diameter (120±1)mm;
|
|
Width (50±1)mm
|
|
Sample
size
|
(110±1)mm×(40±1)mm
|
|
Speed
|
20±1 times/min
|
|
Roller
shaft movement distance
|
50 mm or 100 mm
(optional)
|
|
Water
flow rate
|
(7.5±2.5)ml/min (water
outlet)
|
|
Timer
|
0~999h59m59s
|
|
Power
supply
|
AC 220V 50/60Hz
|
|
Dimension
|
55x65x70 cm (W*D*H)
|
|
Weight
|
100kg
|
