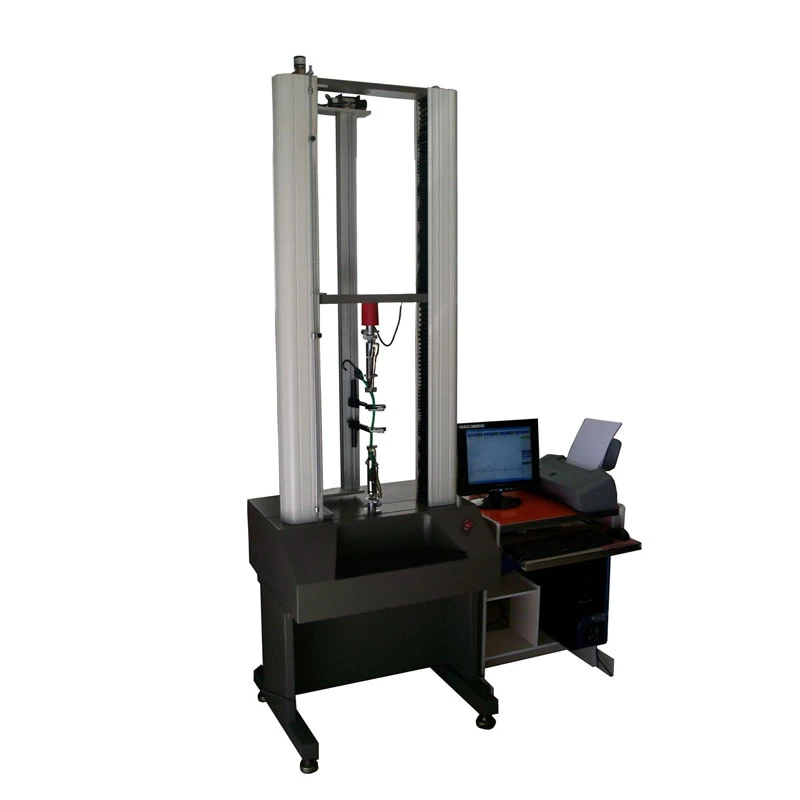

AF01-Universal Testing Machine (Dual Column)
Application Of Universal Testing Machine (Dual Column)
Universal Testing Machine (Dual Column) is widely use to test tensile strength, elongation, tear, adhesive force, tensile stress, peel, shear, adhesive force and etc. of different kinds of material such as soles, tires, rubber tubes, triangular tape, plastic sheets, plastic plates, metal, packaging films, acrylic, FRP, ABS, EVA and etc..
Structure Principle Of Universal Testing Machine (Dual Column)
The AC servo motor is driven by the belt and gear to make the transverse load rise or drop. After tension or compression, the specimen is analyzed by the computer system to analyze the data of the power sensor.
Feature Of Universal Testing Machine (Dual Column)
-
Intelligent hardware control system, with closed-loop (constant force, constant deformation) control system capability.
-
With manual and computer automatic control modes.
-
Customized fixture according to different test requirements, standardized specifications, make the replacement of various fixture convenient and fast.
-
Adopting no clearance and no wear ball screw, can eliminate noise and machine resonance.
-
Use servo motor control, it has the effect of resisting heat, bass and earthquake and positioning function of high speed and high frequency.
Key Specification Of Universal Testing Machine (Dual Column)
|
Model
|
AF01 Universal Testing Machine
(Dual Column)
|
|
Max.
Capacity
|
5KN, 10KN, 20KN (option)
|
|
Control mode
|
Computer servo
control system
|
|
Display mode
|
Computer display
mode
|
|
Force resolution
|
1/200000
|
|
Force accuracy
|
±0.25%
|
|
Maximum stroke
|
1160㎜(the stroke no
including gripers)
Can be customized
according to customer needs
|
|
Test speed
|
0.001-500mm/min, 0.001-1000mm/min (option)
|
|
Speed accuracy
|
±0.5%
|
|
Displacement resolution
|
0.00003mm
|
|
Data sampling frequency
|
200times/sec
|
|
Power supply
|
AC220V,50/60HZ (can
custom made)
|
|
Dimension
|
128×70×210㎝
|
|
Weight
|
417kg
|
Accessories Of Universal Testing Machine (Dual Column)
|
Standard
Accessories
|
Manual
gripers
|
1set
|
|
Extensometer
|
1set
|
|
Metal
baseplate
|
1pc
|
|
English
software
|
1set
|
|
PC cable
connect line
|
1pc
|
|
Option
Accessories
|
Desk top
computer
|
|
|
More gripers
|
|
