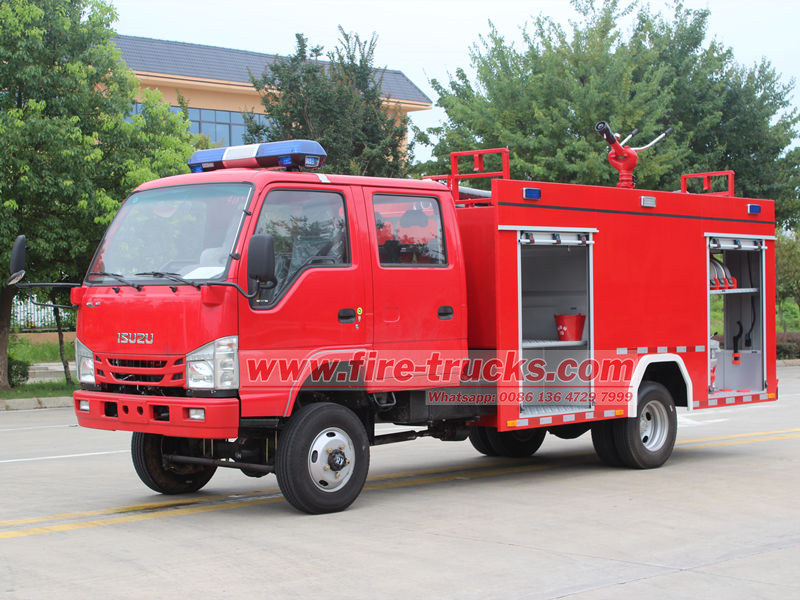

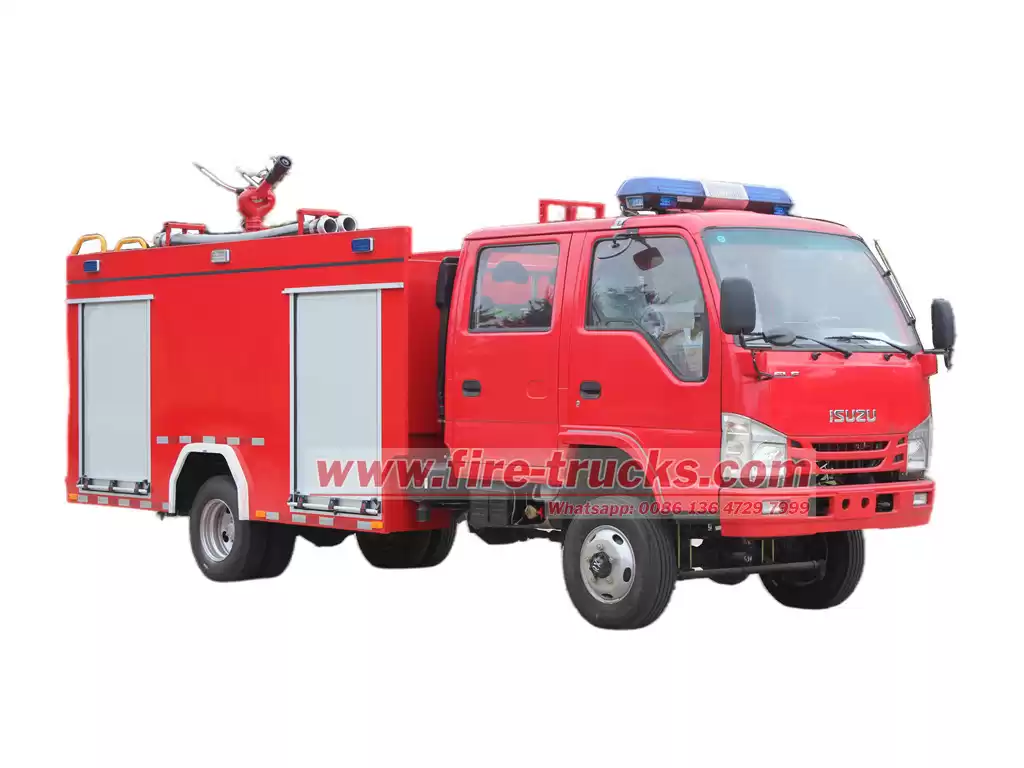

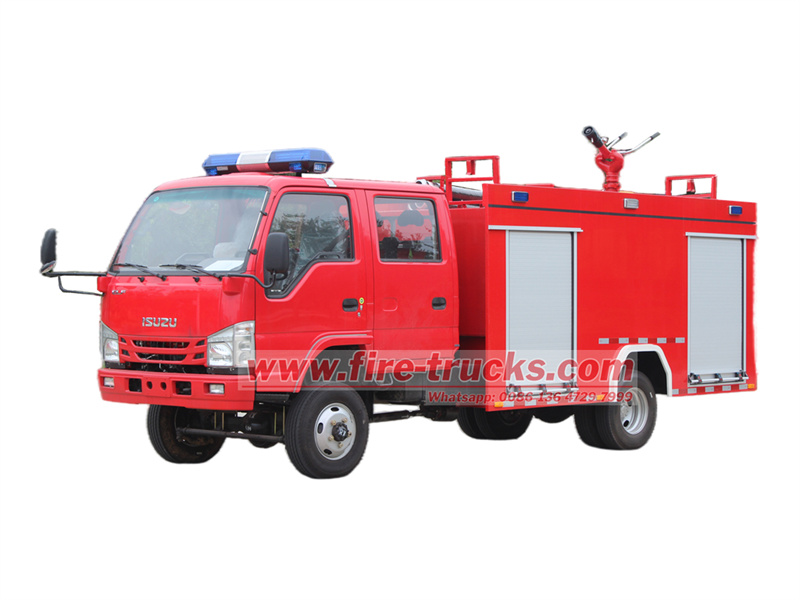

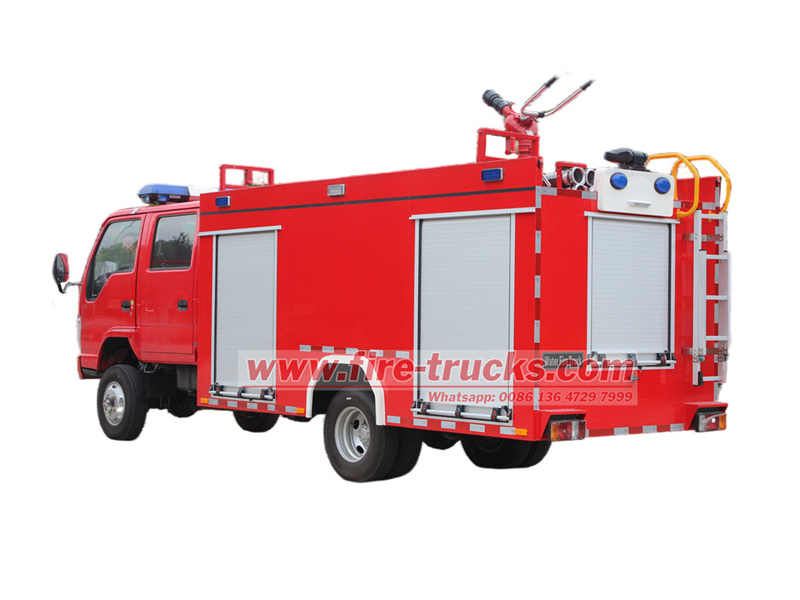

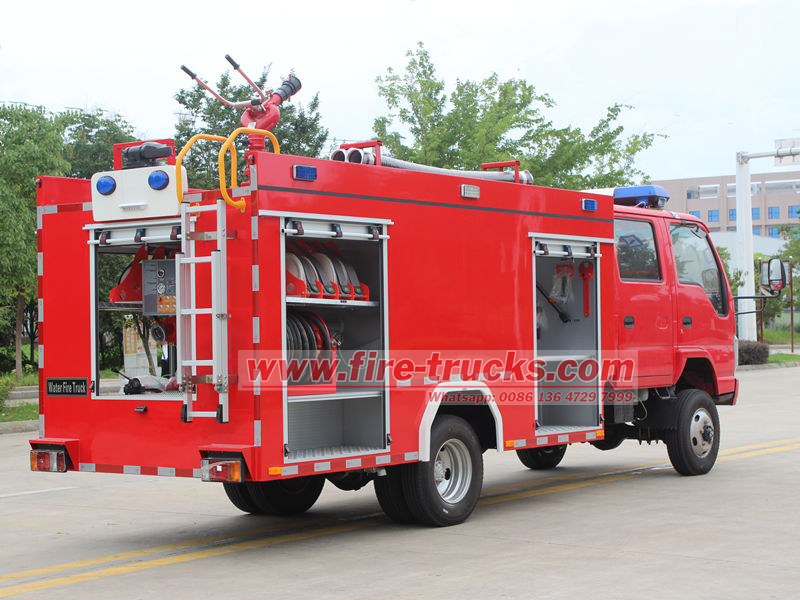

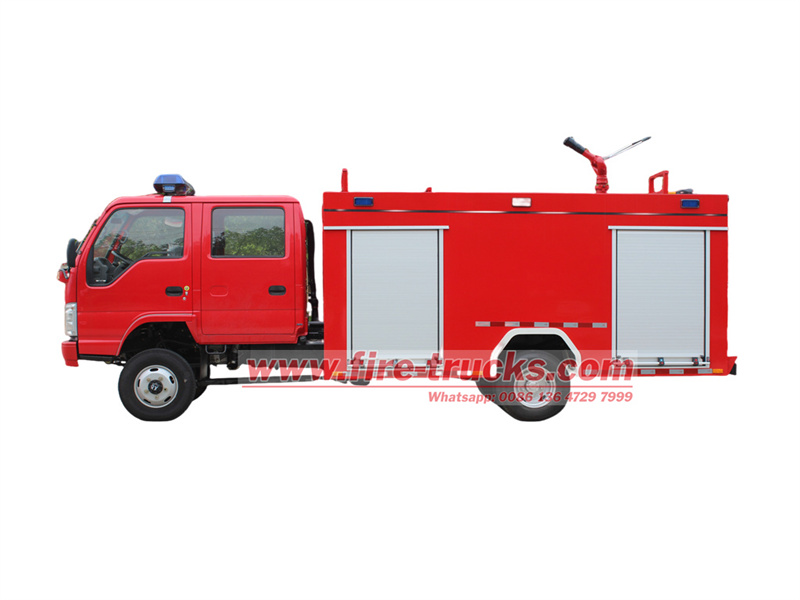

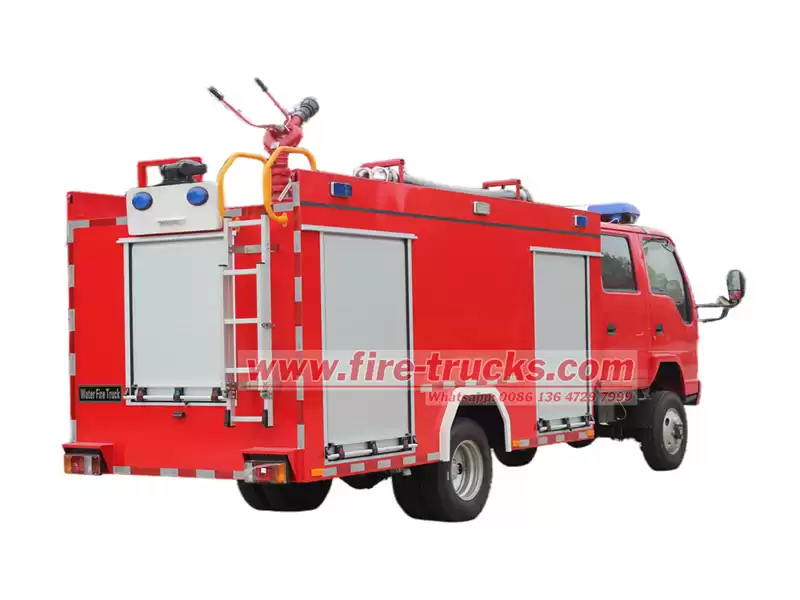

The ISUZU 4×4 Mini Tanker Fire Truck is a professionally modified, lightweight firefighting vehicle that perfectly combines the reliability of ISUZU's chassis with the high efficiency of specialized firefighting equipment. Powered by ISUZU's original 4KH1CN6LB turbocharged diesel engine, this 3.0L engine delivers a robust 120 horsepower. Paired with an MSB 5-speed manual transmission and a part-time 4WD system, the vehicle excels in challenging terrains. Its compact yet efficient dimensions (6220mm long × 1960mm wide × 2800mm high) ensure ample water capacity and operational space while maintaining agility in narrow urban streets and rough environments.

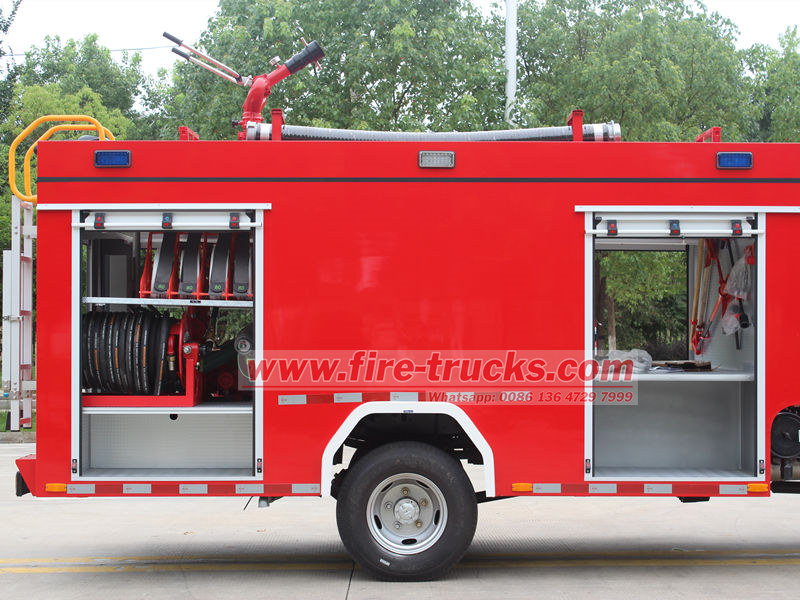

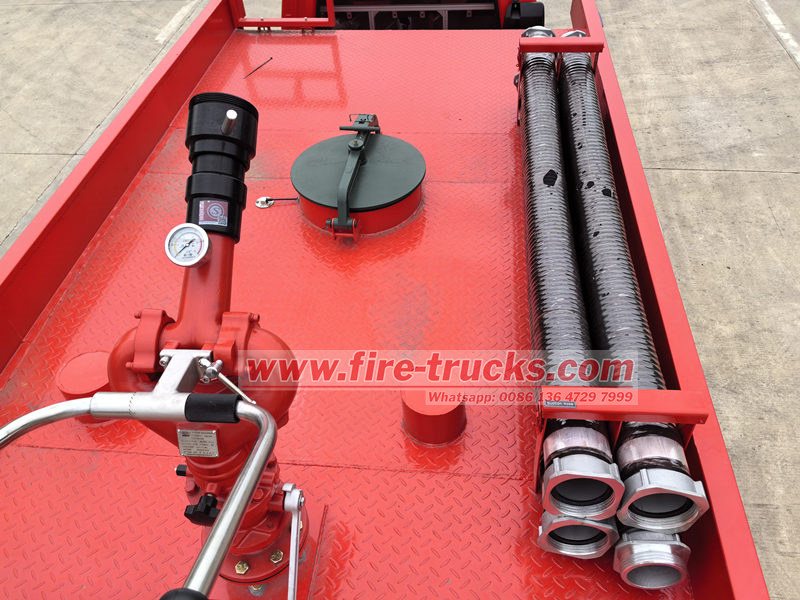

At the heart of this ISUZU 4×4 Pumper Fire Truck lies its advanced firefighting system. The 3000-liter water tank is constructed from carbon steel, with a 4mm-thick base/end plate and 3mm-thick side/top plates, ensuring durability. The welded structure incorporates internal anti-sloshing baffles to minimize water movement during transit, enhancing stability. The tank features a top-mounted manhole with a quick-lock mechanism for easy maintenance, along with an overflow device, level indicator, and drain port for safe and convenient operation.

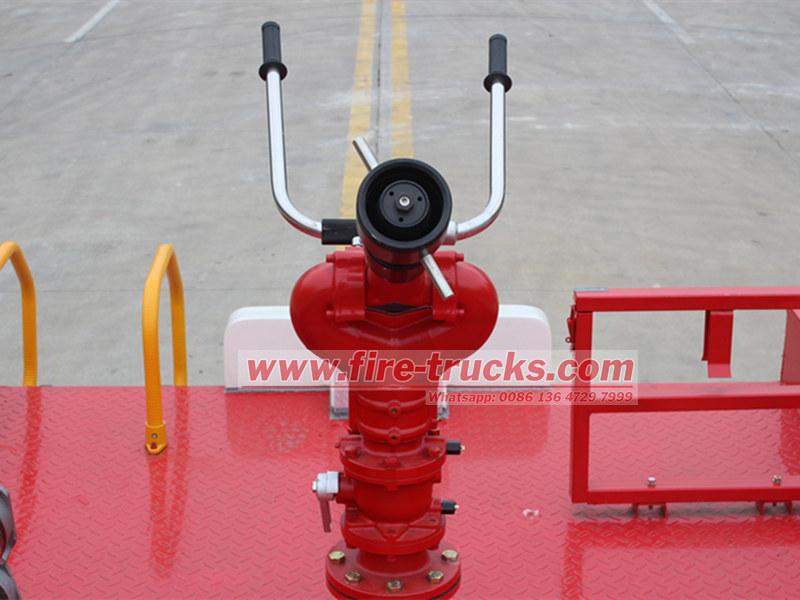

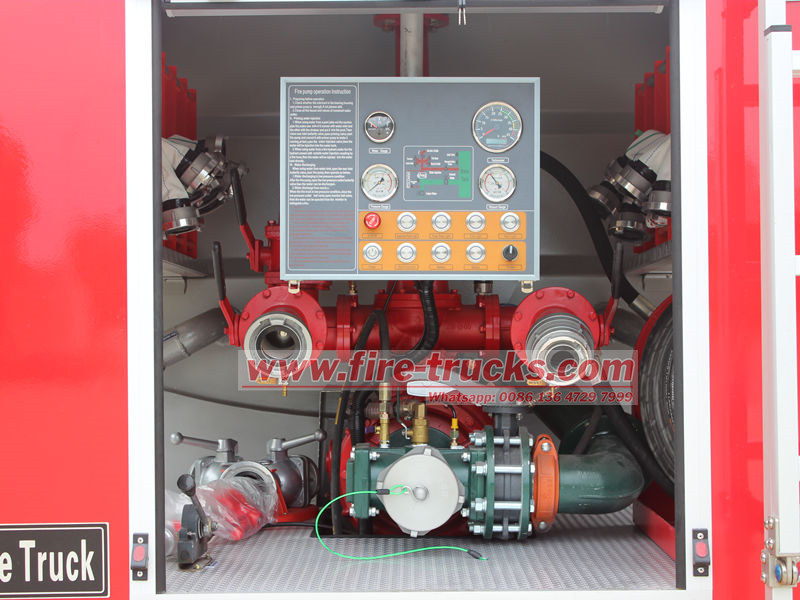

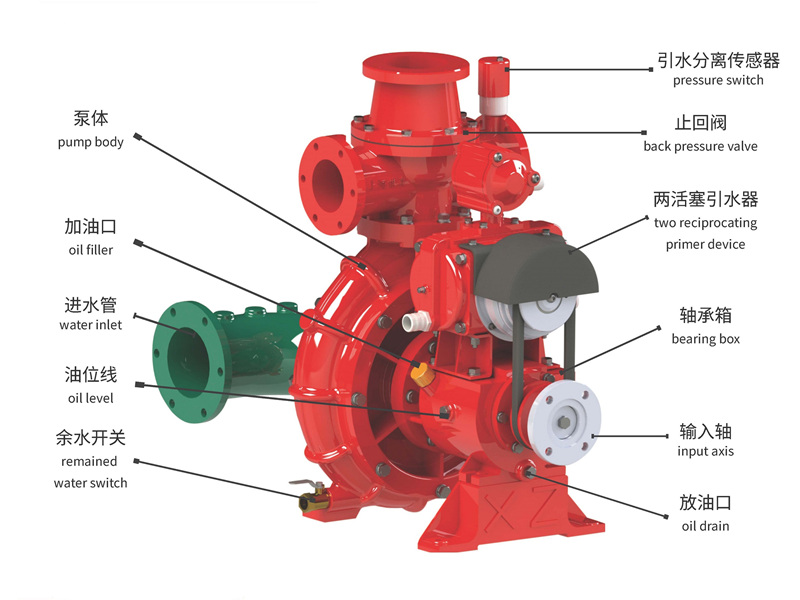

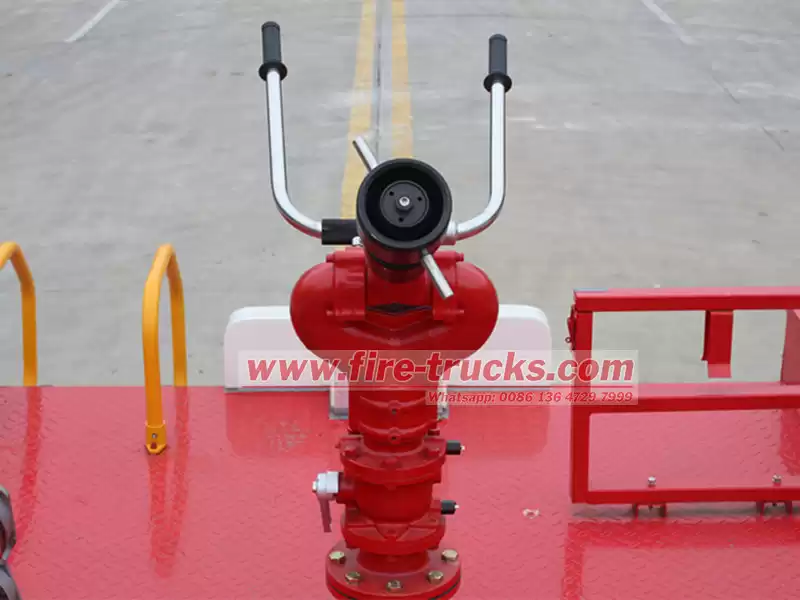

The fire pump, model CB10/30, delivers a flow rate of 20L/s at 1.0MPa pressure, enabling rapid deployment of water to fire scenes. With a suction time of less than 50 seconds (at a 7m suction depth), it ensures swift emergency response. The rear-mounted pump is designed for easy maintenance and operation. The PS8/30W fire monitor operates at a rated pressure of 0.8MPa (max 1MPa), with a flow rate of 30L/s and a range exceeding 65 meters. Its 360° horizontal rotation and -30° to 80° vertical tilt allow precise fire suppression, while the manual control system ensures intuitive operation even for novice firefighters.

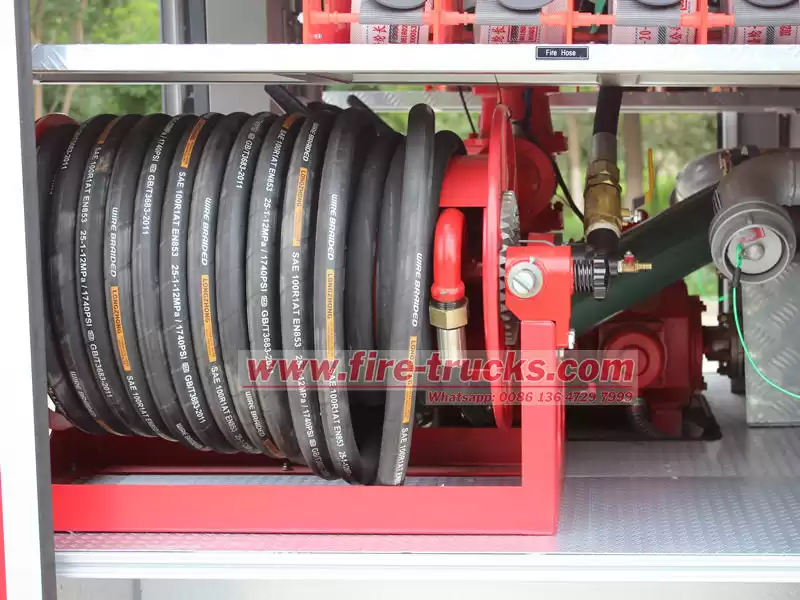

Upon request, this ISUZU 4×4 fire engine truck is also equipped with an additional 30-meter high-pressure hose reel, complete with a high-quality fire hose for extended-range firefighting. The reel is ergonomically designed for quick deployment, significantly improving firefighting efficiency.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu fire truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
Product Specifications
|
ISUZU 4×4 mini pumper fire truck specifications
|
|
Dimensions
|
Length/mm
|
6220
|
|
Width/mm
|
1960
|
|
Height/mm
|
2800
|
|
Wheelbase/mm
|
3360
|
|
Front/Rear Thread/mm
|
1504/1425
|
|
Approach/Departure Angle/°
|
24/13
|
|
Front/Rear Overhang/mm
|
1130/1735
|
|
Chassis
|
Brand
|
ISUZU
|
|
Driven Mode
|
4x4, LHD
|
|
Front Axle Load/kg
|
2500
|
|
Rear Axle Load/kg
|
4800
|
|
Braking System
|
Air Brake
|
|
Tyre
|
7.00R16, 6 pcs and one spare
|
|
Gear Box
|
ISUZU MSB, manual, 5 forward and 1 reverse gears
|
|
Max Speed/ km/h
|
95
|
|
GVW/kg
|
7300
|
|
Cab
|
Four doors, double cab, 3+3 passengers
|
|
Engine
|
Model
|
4KH1CN6LB
|
|
Horsepower/HP
|
120
|
|
Output/KW
|
88
|
|
Displacement/L
|
3.0
|
|
Max Torque
|
290N·m
|
|
Emission standard
|
Euro 6
|
|
Fire Fighting System
|
|
Water Tank
|
Tank Capacity
|
3000 L
|
|
Material
|
Carbon Steel
|
|
Thickness
|
Baseboard and Endplate: 4mm
Side plate and top plate: 3mm
|
|
Structure
|
Welded Type, Anti-swing Plate Inside
-One Manhole, with fast lock & unlock device
-One Overflow Device
-One Level Indication Device
-One Drain Hole, controlled by manual valve
|
|
Fire Pump
|
Model
|
CB10/30
|
|
Flow/ L/s
|
20
|
|
Pressure/MPa
|
1.0
|
|
Water Suction Time/s
|
Less than 50s (when height is 7m)
|
|
Installation Mode
|
Rear-mounted
|
|
Fire Monitor
|
Model
|
PS8/30W
|
|
Rated Working Pressure
|
0.8 Mpa
|
|
Max. Working Pressure
|
1 Mpa
|
|
Flow
|
30 L/s
|
|
Range
|
More than 65m
|
|
Horizontal Rotating Angle/°
|
360
|
|
Pitching Rotating Angle/°
|
-30~80
|
|
Operation Mode
|
Manual
|
|
Pipeline Systems
|
Material
|
High quality seamless steel pipe
|
|
Water injection pipeline
|
There is a DN65 water injection port on each side of the water tank, and a DN65 pipeline is set in the pump room for the water pump to inject water into the tank.
|
|
Outlet pipe
|
There is a DN65 normal pressure outlet on each side of the pump room, with a stop valve and a cover.
|
|
Cooling Water Pipeline
|
Equipped with stainless steel ball valve
|
|
Hose reel
|
Equipped with high quality hose reel with 30m high pressure pipe for water jetting
|
Fire pump of ISUZU 4WD firefighting truck
|
Model
|
Working condition
|
Flow
(L/s)
|
Outlet pressure
(MPa)
|
Rated speed
(r/min)
|
Shaft power
(kw)
|
Suction depth
(m)
|
|
CB10/30-XZ
|
1
|
30
|
1.0
|
3045±50
|
48
|
3
|
|
2
|
21
|
1.3
|
3365±50
|
52
|
3
|
|
3
|
15
|
1.0
|
2992±50
|
34
|
7
|
Key Features of ISUZU 4×4 water tender fire truck:
• 4WD Capability: Conquers rough terrains like mud, snow, and steep slopes
• Compact Design: Navigates narrow urban alleys with a tight turning radius
• High-Efficiency Firefighting: 3000L water tank + 30L/s pump + 65m-range monitor
• Durable Construction: Reinforced carbon steel tank with anti-sloshing design
• Versatile Configuration: Optional foam system, lighting tower, or rescue module upgrades
