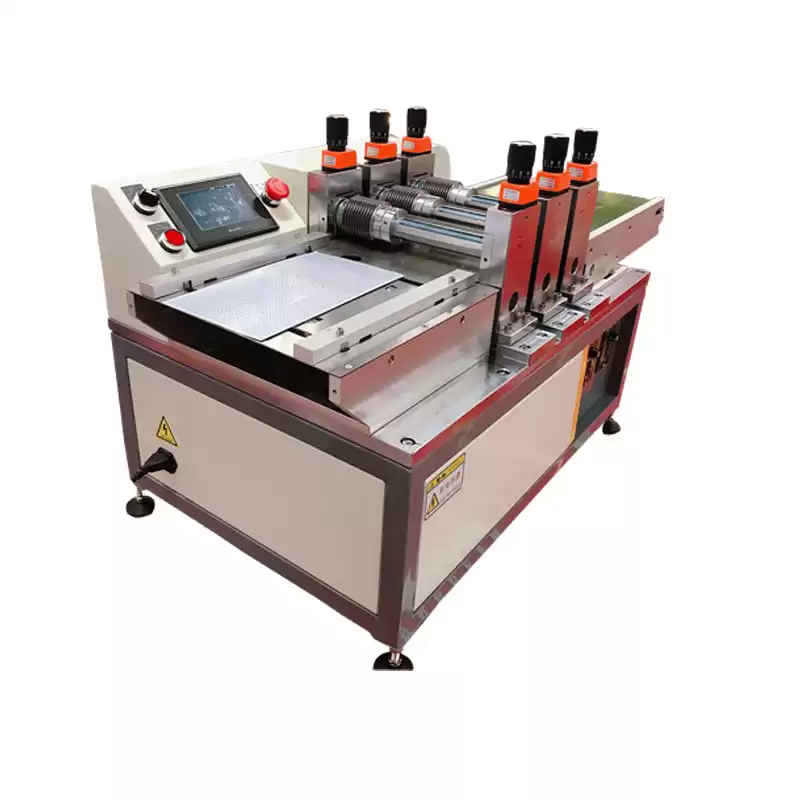

LED Multi-slicer PCB Separator Cutting 5mm Width PCB

The multi-slicer pcb separator is available for 5mm width PCB strip depaneling, separate 3-11 single boards per time.



LED Multi-slicer PCB Separator Cutting 5mm Width PCB

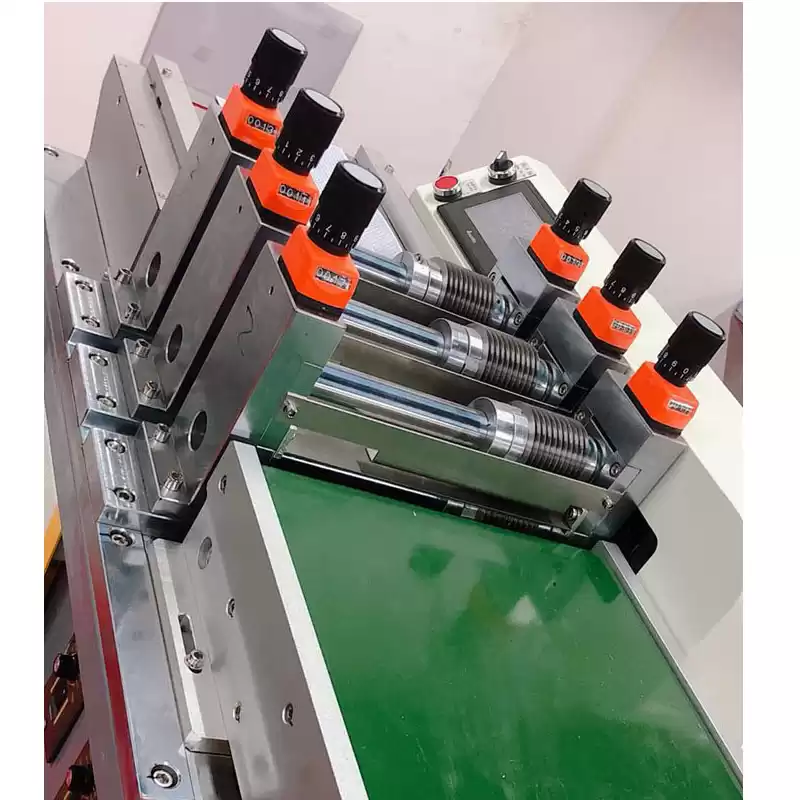

The upper and below blade of this multi-slicer PCB separator can be adjusted accuracy. The cutting thinness shall be in the range of 0.6-3.5mm

The space of upper and below blade can be adjusted between 8-25mm. Control the accuracy around 0.1mm

The distance of border upon 2 group blades can be adjusted from 8mm to 25mm.

Speed of transport belt can be adjustable.

Multi-blades for cutting several pcbs at same time.



LED Multi-slicer PCB Separator Features:

1. The multi-slicer PCB separator can cut many boards with multiple sets of knives work at the same time..

2. The knife distance can be adjustable by spacer.

3. The distance between knives is regulable as well, satisfy to cutting the single PCB width from 5mm-100mm.

4. The blade is made of Japan imported high speed and high precision steel material, which is durable and have a long life time.

5. It is convenient to adjust the cutting speed through rotary knob.

6. No limits of the cutting length for the multi-slicer PCB separator machine.

7. Thickness range of PCB: 0.3-3.0mm

8. The multi-slicer pcb cutting machine adopts 3 blade sets to separate boards with simple operation and high efficiency to avoid bending issue.

;

LED Multi-slicer PCB Separator Specs:

Model SMTAD3 
Max cutting length No limit
Min cutting length 200mm
Max panel width 250mm
Custom cutting width 300mm
Min PCB width 5mm
PCB thickness 0.3-3.0mm
Feeding speed 0-500mm/s
Working tem. 10-35℃
Blade material(auto-lock function) Imported high precision steel
Storge tem. -20-50℃
Voltage 110-220V
Dimension 610x370x400mm
Packaging weight 80kgs


Spare Parts Available:

1. Spare blades(could be cusomized)

2. Customized spacer


;

Our Certificate:

PCB Separator certificate


Company Profile:

hot bar soldering machine manufacturer

2008, Dongguan factory established, and start producing standard v-cut PCB separators and hot bar soldering machines.

2010, Our products are widely sold in local market.

2012, Start producing customized v-cut depaneling and PCB router.

2014, ;Expand our sales team for providing better service to more customers.

2015, Start manufacturing laser depaneling machines.

2017, Start manufacturing ;soldering robot and screwdriver machines.

2018, HK company established.
2019, Huizhou factory established, due to expansion.

2020, Business expansion again, products covering PCB depaneling, PCB soldering, screwdriver system, etc. ;

2021, Our machines cover all Chinese market and also popular in America, Europe, South Asia, East Asia, etc.


Our Service:

1. Guarantee for 12 months.

2. Maintenance for whole life.

3. We ;will ;provide ;the ;consumable ;parts ;at ;an ;resonable price.

4. 24 ;hours x 7days online ;service, ;free ;technical ;support.

5. Machine ;has ;been tested before ;delivery.

6. We ;have ;manual ;instruction ;and Guiding ;Videos for installation, ;operation ;and machine's ;using ;and ;maintenance.

7. Oversea on-site installation and trainning is available.

8. Vacuum & wooden case packaging is provided free of charge for sea shipment.
