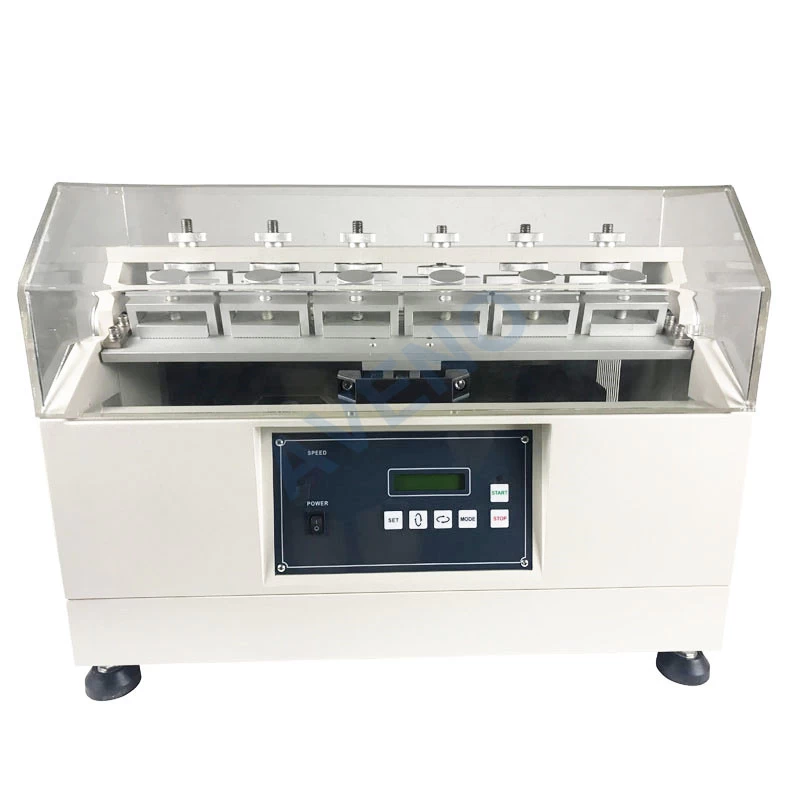

AF23B-Low Temperature ROSS Flexing Tester
Application Of Low Temperature ROSS Flexing Tester
Low Temperature ROSS Flexing Tester is used to test the vertical flex resistance of rubber products, sole of shoes, and Foamed material suce PU, PVC, TPR. After flexing a certain times under low temperature environment, then check the attenuation, damage and cracking degree to get the flexing resistance of the sample.
Feature Of Low Temperature ROSS Flexing Tester
-
The interior of the chamber is made of SUS 304# mirror stainless steel
-
The outside of the chamber is baking finish (can choose SUS 304 stainless steel)
-
Whole machine equipped with a safety protection system, the end of the test automatically stops
Standards Of Low Temperature ROSS Flexing Tester
ASTM-D1052, ISO5423, 4643, HG/T2411, BS513, ASTRA TM60.
Key Specification Of Low Temperature ROSS Flexing Tester
|
Model
|
AF23B Low Temperature
ROSS Flexing Tester
|
|
Control mode
|
Programmable
microprocessor control
|
|
Temperature range
|
-30~100℃
|
|
Test
position
|
10 position
|
|

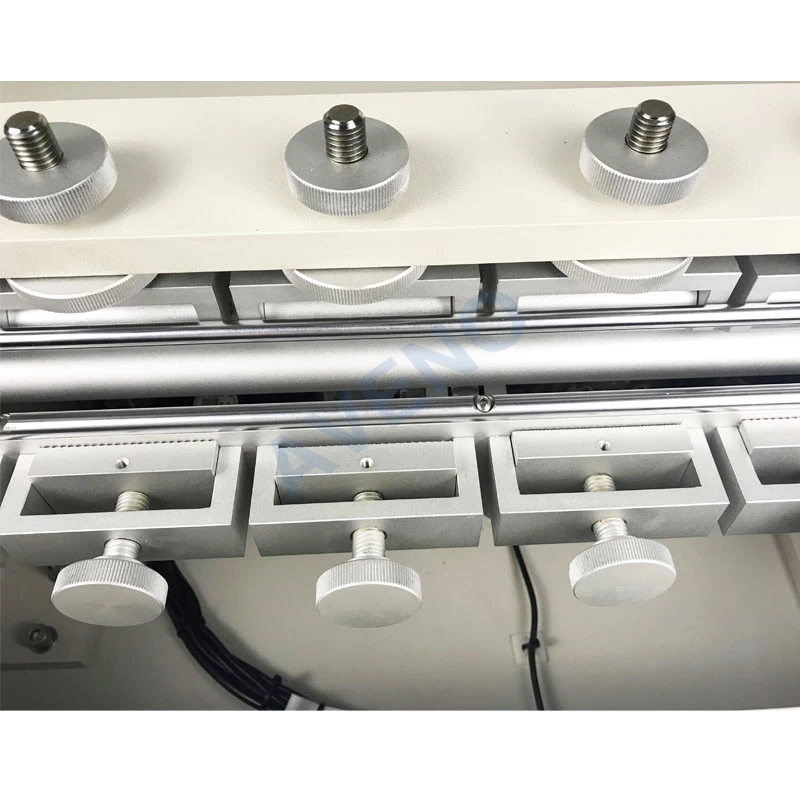

Fixture
|
6 sets, can test 12pcs
sample at the same time
|
|
Bending speed
|
0~110cpm, can be set
|
|
Bending angle
|
90±2°
|
|
Counter
|
LCD, 0~99,999,999
|
|
Dimension
|
100*100*150 cm
|
|
Weight
|
195 kg
|
