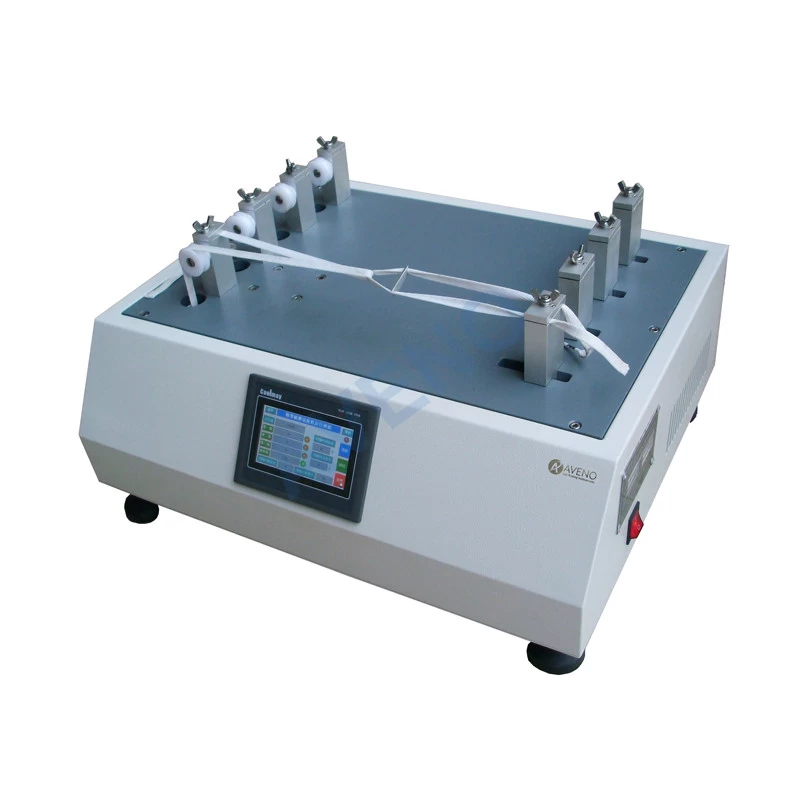

AF48-Shoelace Rubbing Tester
Application Of Shoelace Rubbing Tester
Shoelace Rubbing Tester is suitable for measuring the wear resistance of woven shoelace of cotton, hemp and chemical fiber.
Standards Of Shoelace Rubbing Tester
SATRA TM154, ISO 22774, DIN 4843, QB/T 2226, GB/T 3903.36
Test Principle Of Shoelace Rubbing Tester
The two shoelaces cross each other, one end is fixed on the movable gripper which can move in a reciprocating straight line, the other is fixed on the corresponding gripper, one end is fixed and the other end is fixed by fixing the pulley. When the reciprocating movement of the movable gripper, the two shoelaces that cross horizontally with each other can rub each other, and the intermittent time can be set. When the set number of times is reached, the machine stops the action, and the intermittent time reaches the interval time to continue the action, So repeated until the set number or sample fracture stop count, to achieve the purpose of testing wear resistance.
Key Specification Of Shoelace Rubbing Tester
|
Model
|
AF48 Shoelace Rubbing Tester
|
|
Control mode
|
Touch screen control
|
|
Test position
|
4 groups
|
|
Load weight
|
1000 ± 3g
|
|
Test speed
|
60±1 cpm
|
|
Min. distance between movable
holder and fixed holder
|
280±50mm
|
|
Movable stock
|
35±2mm
|
|
Power supply
|
AC220V, 50/60HZ
|
|
Dimension
|
65*60*40cm
|
|
Weight
|
60kg
|
Accessories Of Shoelace Rubbing Tester
|
Standard Accessories
|
250g weight
|
4pcs
|
|
Clamp
|
4pcs
|
|
Sample loading device
|
1pc
|
|
Power line
|
1pc
|
