Low Transmission Loss EP Series Ferrite Cores

EP ferrite core has good magnetic shielding, small distributed capacitance, low transmission loss. Bobbin equipped multiple connectors, easy to design multiple output transformers.



Quick Details

Part Number: EP Series Ferrite Core

Brand Name: MCT

Material: Mn-Zn/Ni-Zn ferrite core

Logo: Can be customized

Type: Power core  High permeability

OEM: Available

Core Materials: M10P, M7P, M5P, MP4

MOQ: Any quantity

Packing: Carton, can be customized

Custom Made: Available

Lead Time: 25 days after payment

Certification: ISO9001,ROHS,CE



Part Information

Product Name: Low Transmission Loss EP Series Ferrite Cores

Products Range: Electronic transformers,filters,chokes,bobbins,relays,magnetic cores.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts

Applications: Broadband transformers,isolation transformers,matching transformers,program-controlled switchboard terminals and sophisticated electronic equipment.

Shipping Details: By air, By ship, etc.



Product Details

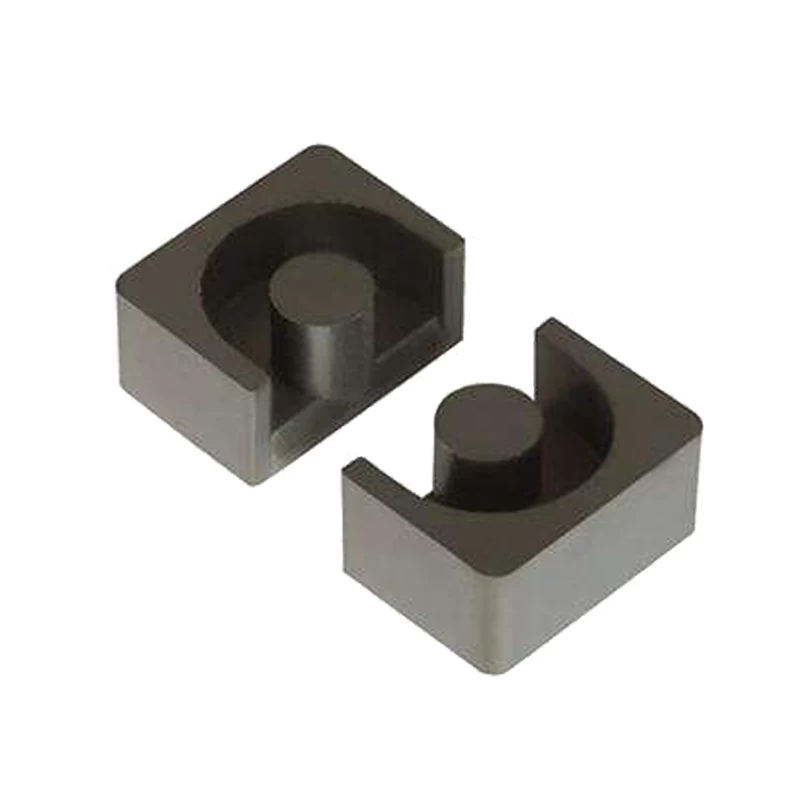

EP13 electronic transformer ferrite core for LED transformers

Professional Supplier for Transformer Core EP Series Ferrite Core


TYPE

Dimension:mm

Weight:g

A

B

C

D

F

G

H

EP5

6.0±0.15

4.4±0.15

   1.80+0

-0.15

3.9+0

-0.25

2.15+0

-0.1

2.8±0.1

0.9±0.1

1.1

EP7

9.2±0.2

7.4±0.2

3.40-0.2

6.5-0.3

2.5+0.3

3.75±0.1

18.-0.2

1.4

EP10

11.5±0.3

9.4±0.2

3.45-0.3

7.85-0.4

3.6+0.2

5.2-0.4

1.95-0.25

2.8

EP13

12.5±0.3

10.0±0.3

4.50-0.3

9.0-0.4

4.5mim

6.5-0.4

2.5-0.2

5.1

EP17

18.0±0.4

12.0±0.4

5.85-0.35

11.25-0.5

5.5+0.3

8.5-0.4

3.25±0.2

13.0

EP20

24.0±0.5

16.5±0.4

9.0-0.5

15.3-0.7

7.0+0.3

10.8-0.4

4.5±0.2

32.0

EP30

30.0±0.5

24.1±0.3

14.55±0.25

23.1±0.5

15.0+0.2

11.8±0.2

7.6±0.25

75.0


TYPE

Effective parameter

AL(nH/N2)(AL±35%)

C1

(mm-1)

Ae

(mm2)

Le

(mm)

Ve

(mm3)

MP4

MP5

M5P

M5PL

M10P

M10PL

M12PL

EP5

3.154

3.09

9.73

30

400

380

530

600

1900

2050

EP7

1.52

10.3

15.7

163

1100

1000

1600

3500

2045

5210

2050

EP10

1.70

11.3

19.3

218

1000

950

1600

3400

2050

4800

3950

EP13

1.24

19.6

24.3

476

1400

1430

2800

4400

3300

7000

5800

EP17

0.84

33.9

28.5

964

2500

2300

3870

11000

12600

EP20

0.51

78.3

39.8

3110

4000

4000

4000

EP30

0.35

179.0

39.8

11200

6600


Accept custom made transformer, welcome to contact us..
