MDBP series split core current transformers are designed for easy installation in the circuit system or power grid transformation system. MDBP is improved from MDP of split type transformer. The shell material is PA66 flame-retardant reinforced nylon, and the temperature resistance and flame-retardant performance are better than MDP series. Conform to standards: iec6004-1, bs7626, vde0414-44-1, UL94.
Low Voltage Current Transformer Feature

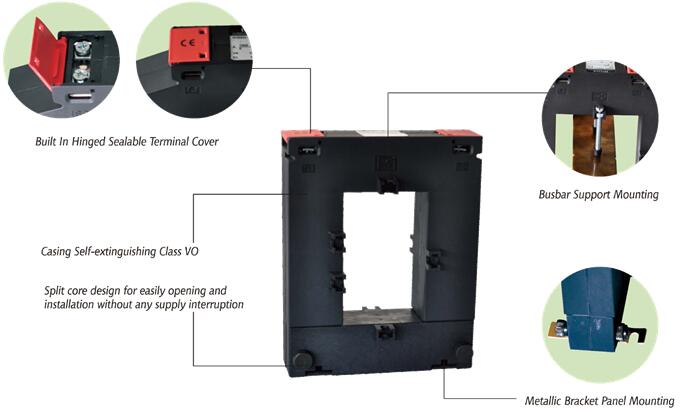

I. Special terminal design, quick and convenient secondary wiring,firm wiring and not easy to loosen.
II. Primary line: installed without disconnecting cables or busbars,saving installation time and convenient maintenance.

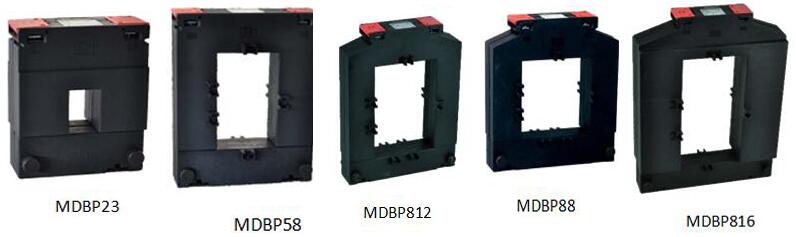

Split Core Current Transformer MDBP Models
MDBP-23 Series
|
MODEL
|
RATIO(A)
|
BURDEN(VA)
|
SPQ:PCS
|
ORDER CODE
|
|
CLASS:0.5
|
CLASS:1.0
|
|

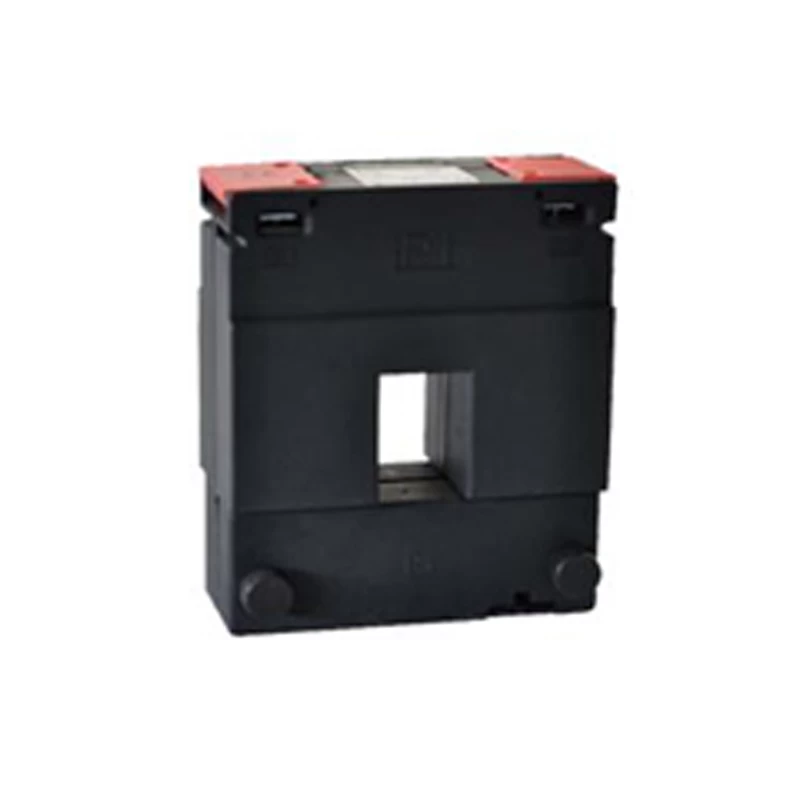

MDBP-23
|
100/5
|
1.5
|
2.5
|
20
|
402101005
|
|
MDBP-23
|
150/5
|
1.5
|
2.5
|
20
|
402101505
|
|
MDBP-23
|
200/5
|
2.5
|
3.75
|
20
|
402102005
|
|
MDBP-23
|
250/5
|
2.5
|
5
|
20
|
402102505
|
|
MDBP-23
|
300/5
|
5.0
|
5
|
20
|
402103005
|
|
MDBP-23
|
400/5
|
5.0
|
5
|
20
|
402104005
|
MDBP-58 Series
|
MODEL
|
RATIO(A)
|
BURDEN(VA)
|
SPQ:PCS
|
ORDER CODE
|
|
CLASS:0.5
|
CLASS:1.0
|
|
MDBP-58
|
250/5
|
1.5
|
2.5
|
20
|
325002505
|
|
MDBP-58
|
300/5
|
2.5
|
5
|
20
|
325003005
|
|
MDBP-58
|
400/5
|
3.75
|
5
|
20
|
325004005
|
|
MDBP-58
|
500/5
|
5.0
|
7.5
|
20
|
325005005
|
|
MDBP-58
|
600/5
|
5.0
|
7.5
|
20
|
325006005
|
|
MDBP-58
|
750/5
|
5.0
|
10
|
20
|
325007505
|
|
MDBP-58
|
800/5
|
5.0
|
10
|
20
|
325008005
|
|
MDBP-58
|
1000/5
|
7.5
|
10
|
20
|
325010005
|
MDBP-88 Series
|
MODEL
|
RATIO(A)
|
BURDEN(VA)
|
SPQ:PCS
|
ORDER CODE
|
|
CLASS:0.5
|
CLASS:1.0
|
|
MDBP-88
|
250/5
|
1.5
|
2.5
|
12
|
3281025005
|
|
MDBP-88
|
300/5
|
2.5
|
3.75
|
12
|
3281030005
|
|
MDBP-88
|
400/5
|
3.75
|
5
|
12
|
3281040005
|
|
MDBP-88
|
500/5
|
5.0
|
5
|
12
|
3281050005
|
|
MDBP-88
|
600/5
|
5.0
|
7.5
|
12
|
3281060005
|
|
MDBP-88
|
750/5
|
5.0
|
7.5
|
12
|
3281075005
|
|
MDBP-88
|
800/5
|
5.0
|
7.5
|
12
|
3281080005
|
|
MDBP-88
|
1000/5
|
7.5
|
10
|
12
|
3281100005A
|
MDBP-812 Series
|
MODEL
|
RATIO(A)
|
BURDEN(VA)
|
SPQ:PCS
|
ORDER CODE
|
|
CLASS:0.5
|
CLASS:1.0
|
|
MDBP-812
|
500/5
|
2.5
|
5
|
10
|
3280050005
|
|
MDBP-812
|
600/5
|
2.5
|
5
|
10
|
3280060005
|
|
MDBP-812
|
750/5
|
5.0
|
10
|
10
|
3280075005
|
|
MDBP-812
|
800/5
|
5.0
|
10
|
10
|
3280080005
|
|
MDBP-812
|
1000/5
|
7.5
|
10
|
10
|
3280100005
|
|
MDBP-812
|
1200/5
|
7.5
|
10
|
10
|
3280120005
|
|
MDBP-812
|
1250/5
|
7.5
|
10
|
10
|
3280125005
|
|
MDBP-812
|
1500/5
|
7.5
|
10
|
10
|
3280150005
|
MDBP-816 Series
|
MODEL
|
RATIO(A)
|
BURDEN(VA)
|
SPQ:PCS
|
ORDER CODE
|
|
CLASS:0.5
|
CLASS:1.0
|
|
MDBP-816
|
1000/5
|
10
|
15
|
6
|
3281100005B
|
|
MDBP-816
|
1500/5
|
10
|
15
|
6
|
3281150005
|
|
MDBP-816
|
2000/5
|
15
|
20
|
6
|
3281200005
|
|
MDBP-816
|
2500/5
|
20
|
25
|
6
|
3281250005
|
|
MDBP-816
|
3000/5
|
20
|
30
|
6
|
3281300005
|
|
MDBP-816
|
4000/5
|
20
|
30
|
6
|
3281400005
|
|
MDBP-816
|
5000/5
|
20
|
30
|
6
|
3281500005
|
|
MDBP-816
|
6000/5
|
20
|
30
|
6
|
3281600005
|
Note: Class/VA rating must be mentioned when ordering.

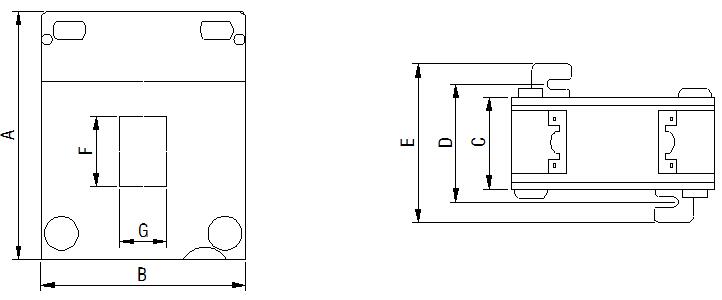

MDBP Series CT Dimension:mm
|
Model
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
|
MDBP-23
|
115
|
89
|
40
|
52
|
70
|
32
|
21
|
|
MDBP-58
|
145
|
116
|
32
|
52
|
70
|
80
|
50
|
|
MDBP-88
|
153
|
145
|
32
|
52
|
70
|
80.5
|
80.5
|
|
MDBP-812
|
196
|
145
|
32
|
52
|
70
|
120.5
|
80
|
|
MDBP-816
|
250
|
186
|
51
|
71
|
57
|
120.5
|
81
|
