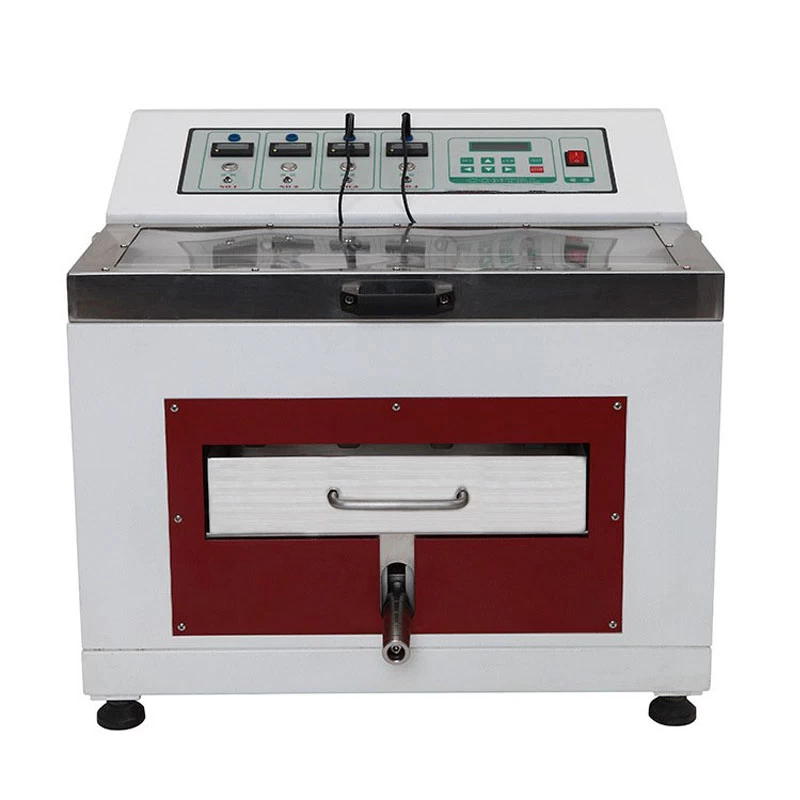

AF37- Maeser Water Penetration Tester
Application Of Maeser Water Penetration Tester
Maeser Water Penetration Tester is used to test the shoe permeation resistance index of footwear including leather, artificial leather, fabric material and etc..
Standards Of Maeser Water Penetration Tester
ASTM-D2099, SATRA TM34, ISO 5403-2
Key Specification Of Maeser Water Penetration Tester
|
Model
|
AF37
Maeser Water Penetration Tester
|
|
Test
position
|
4
|
|
Standards
|
SATRA
TM34 type1
|
SATRA
TM34 type2
ISO
5403-2
|
ASTM
D2099
|
|
Bendig
angle
|
type1
: 30 ± 1 °;
|
type2
: 32 ± 1 °, option
|
No request
|
|
Clamps
tip radius
|
7.5±0.5mm
|
7.5±0.5mm
|
4mm
|
|
Moving
clamp flexing displacement
|
No
request
|
No
request
|
25.4±1.3mm
|
|
Sample
size
|
114*114mm
|
114*114mm
|
101.6*101.6mm
|
|
Test
speed
|
90±5
r/min
|
|
Clamps
|
V-shape
|
|
Control
method
|
Touch
screen control
|
|
Power
supply
|
AC220V,
50/60HZ
|
|
Dimension
|
49x45x42
cm
|
|
Weight
|
60
kg
|
