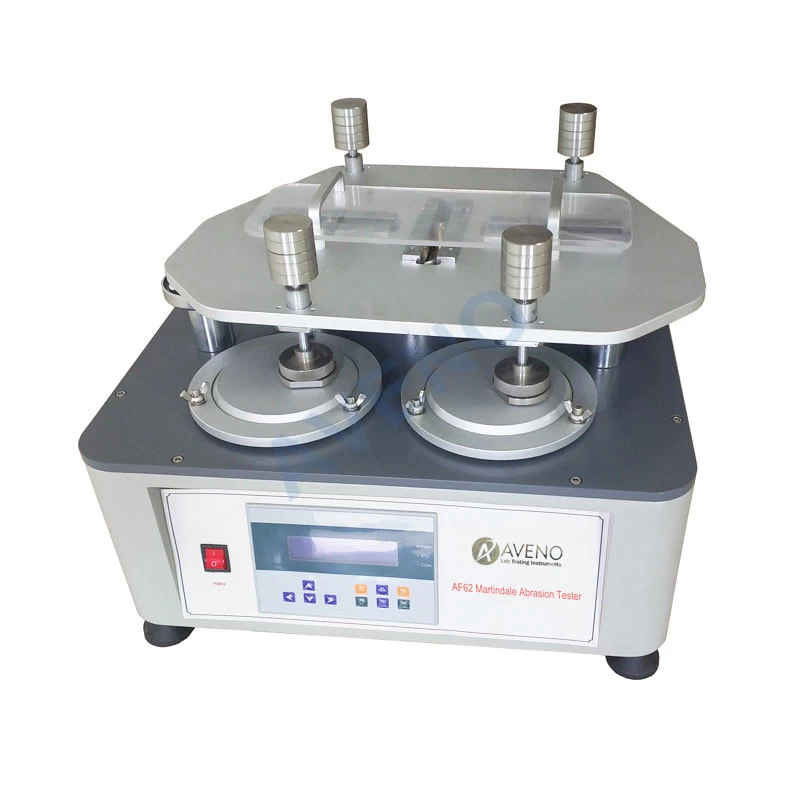

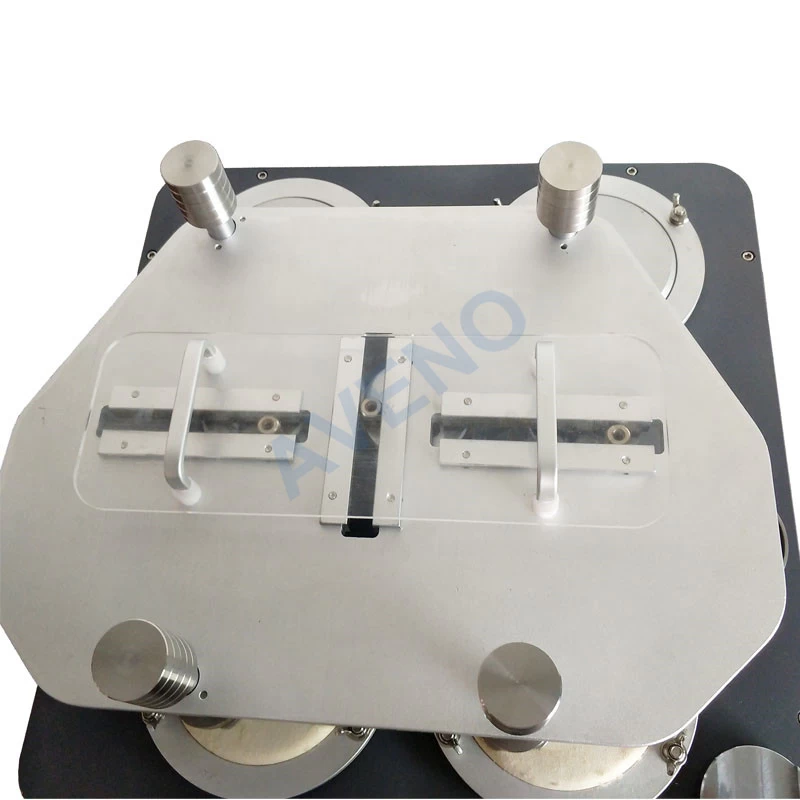

AF62-Martindale Abrasion Tester
Application Of Martindale Abrasion Tester
Martindale Abrasion Tester is used to test the abrasive resistance ability of different kinds of footear such as shoe’s vamp, lining, substrate and etc.. Can test 4pcs samples at same time. when test, the rubbing head running according Lissajous Curve, repeated friction test piece at a certain number of times, then evaluate the abrasive resistance ability.
Standards Of Martindale Abrasion Tester
EN388-2003, ASTM D4966, BS 3424, DIN 53863, ISO EN20344, GB/T20991, SATRA TM31, AS/NZS 2210.2, EN344
Key Specification Of Martindale Abrasion Tester
|
Model
|
AF62 Martindale Abrasion
Tester
|
|
Control
mode
|
LCD control
|
|
Test
position
|
4 position
|
|
Test
speed
|
(47.5±5) CPM
|
|
Pressure
weight
|
795±5g (12Kpa)
595±5g (9Kpa)
|
|
Sample
size
|
φ (44±1)mm
|
|
Power
supply
|
AC220V, 50/60HZ
|
|
Dimension
|
57*64*34cm
|
|
Weight
|
78KG
|
Accessories Of Martindale Abrasion Tester
|
Standard Accessories
|
Sample cutting die
|
1 pc
|
|
Abrasion weight and
holder
|
1 set
|
|
Pressure weight
|
1 pc
|
|
Standard
Backing Foam (60pcs/box)
|
1box
|
|
Standard Woven Felt
|
10 pcs
|
|
Standard Abradent Fabric
|
20 pcs
|
|
Power line
|
1 pc
|
