Modular Type Combined Air Conditioning Unit

Modular Type Combined Air Conditioning Unit ooling capacity: 25-169(kw) kw

Applications: Chemical, photovoltaic, pharmaceutical, food industry



Ⅰ) Modular Type Combined Air Conditioning Unit profile:

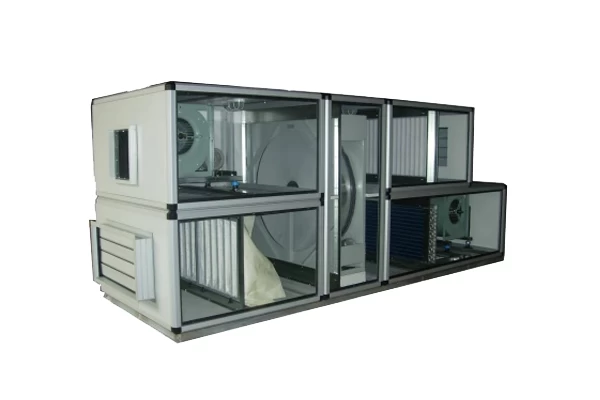

Modular Type Combined Air Conditioning Unit

In terms of refrigeration, chilled water can be used as a carrier, or a refrigerant can be used as a carrier (direct expansion type) for cooling and dehumidification: through the combination of different functional segments, the supply air of air working condition can be adjusted to meet the indoor air temperature and humidity,and cleanliness requirements.



Brand: H.Stars

Cooling capacity: 25-169(kw) kw

Applications: Chemical, photovoltaic, pharmaceutical, food industry

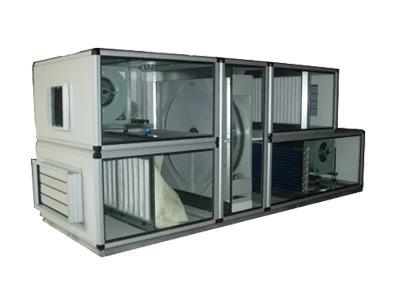

Modular Type Combined Air Conditioning Unit



Ⅱ)Modular Type Combined Air Conditioning Unit features:

1.Modular Type Combined Air Conditioning Unit parameters:

Application areas: chemical, optoelectronics, pharmaceutical, food industry.

Product Type: cleaning air conditioning equipment

Structure type: clean air conditioning equipment

Cooling capacity: 25-169(kw) kw

Applications: Chemical, photovoltaic, pharmaceutical, food industry

Product Categories

Constant temperature dehumidification combined air conditioning unit

Anti-corrosion combined air conditioning unit

Roof combined air conditioning unit

Large air volume air conditioning unit

Direct expansion combined air conditioning unit



2.Modular Type Combined Air Conditioning Unit Feature

Modular Type Combined Air Conditioning Box structure:

Using the cold-bridge type aluminum alloy frame, and the frame is made of built-in material for heat insulation. The surface of the aluminum profile is anodized, and it can be coated with anti-corrosion coating to make it look beautiful and corrosion resistant. The air valve is an aluminum alloy air valve with a built-in sealing strip for manual or electric operation. The overall structure is modular in design for easy field connection and component assembly.



Modular Type Combined Air Conditioning Panel:

The standard thickness of the panel is 25mm, 50mm or 70mm. The double-panel structure is adopted, and the inner and outer plates can be selected from galvanized plates, slush plates, color plates, stainless steel plates, and so on. The interlayer is a high-pressure perfusion polyurethane foam insulation material, which enables the unit to have better performance in terms of heat preservation, strength, rigidity, cleanliness and sound insulation and sealed with moisture-proof material at the gap between the panel and the frame to prevent air leakage and energy efficiency loss.


Ⅲ)Products application -Modular Type Combined Air Conditioning Unit

H’stars has done successful solutions to energy saving for Hotel hot water system by applying our heat recovery and hot water units. Industrial cooling chiller for plastic extruder and injection machine is one of our major chiller business. Our industrial chiller with built-in single or double circulating water pumps and insulated water tank are widely applied in industries for cooling of Laser generator, Welding electrodes, Cutting machines, Electric spark machine, Extrusion process, Hydraulic System, Electroplating, Ultrasonic Cleaning, Ion Plating film, Electronic facility, Electrical appliance components, Compressed Gas Dehumidification, Dairy and Beverage Cooling processing, Pharmaceutical and Biological product, Medical equipment, Glass Coating, Tempered Glass and Cultivation Sea Food.

Air Source Intelligent Hot Water Unit usage


Ⅳ) Company Information -Modular Type Combined Air Conditioning Unit

Modular Type Combined Air Conditioning Unit

HStars(Guangzhou) Refrigerating equipment Manufacturing Co.,Ltd. Was established in 1992,is a foreign-invested enterprise, is specializing in cooling towner ,Heating Ventilation Air conditioning and cooling,industrial cooling and heating equipment manufacturing ,with all kinds of special equipment designe technology and manufacturing capabilities.In the course of more than 20 years of development, H.stars group has always been firmly convinced that quality is the first and win by quality, has obtained relevant certification in the refrigeration industry at home and abroad.Since its inception, H.stars group has been awarded many patents in the field of air conditioning refrigeration through a number of technical appraisals, and is the first enterprise to win the patent of heat recovery technology.

Air Source Intelligent Hot Water Unit Factory

Ⅴ) FAQ--Modular Type Combined Air Conditioning Unit

Places of origin

  Guangzhou ,Guangdong, China

Production

Manufactuer
Lead-Time

Usually 35days after order details confirmed and deposit received;

Stock available in factory: 3-5days after full payment received;

Payment Term

We accept T/T,WESTERN UNION, L/C at sight etc.

(T/T: 30% deposit in advance, 70% balance before delivery.)

Packing

 Standard export packing / According to customer's requirement.

Carton with Batten Solid



Transportation

1) EXW

2) Sea Shipping

FOB   Guang Zhou      Port:  Huang Pu Port

CIF  CY To CY        Port: Huang Pu Port

 3).Express:

 It will always take 5-7 working days.

 4).Air shipping.

Certification

  ISO9001,SGS,CE

Advantages

Popular OEM heat exchanger  for world big brand fitness company , durable, high eyes appreciate, unique

Business range

  Italy, German, France, Russia more than 10 European Countries ,all middle east countries, India, Malaysia , more  than 10  Asian  countries and brazil and so on, total more than 40  Countries , etc.

Places of origin

  Guangzhou ,Guangdong, China

Certification

  ISO9001, CE
