Hefei Mycoil Technology Co.,LTD is specialized in
manufacturing coil type products and filters products, precision current
transformer is our new products, we produce different types current
transformers. If you are interested in our current transformers, you can send specification
to us, our engineers can design according to your requirements. We also can
send free current transformer samples in 5 days, if our samples approved your
testing, then we can began from small order to big order!
Quick Details
|
Part No: MCT06A30 Precision Current Transformer
|
|
Brand name:
MCT
|
|
Operating
temperature：-40°C~50°C
|
|
Custom made:
Available
|
|
Storage
temperature:-40°C~70°C
|
|
Logo: Can be
customized
|
|
Relative
humidity:10~95%
|
|
Packing:
Carton, can custom
|
|
Rated input
current:30A
|
|
MOQ: Any
quantity
|
|
Certification:
ISO9001,ROHS,CE
|
|
OEM:
Available
|
|
Lead time:
25 days after payment
|
|
Shipping:
Air, Ship, etc
|
Part Information

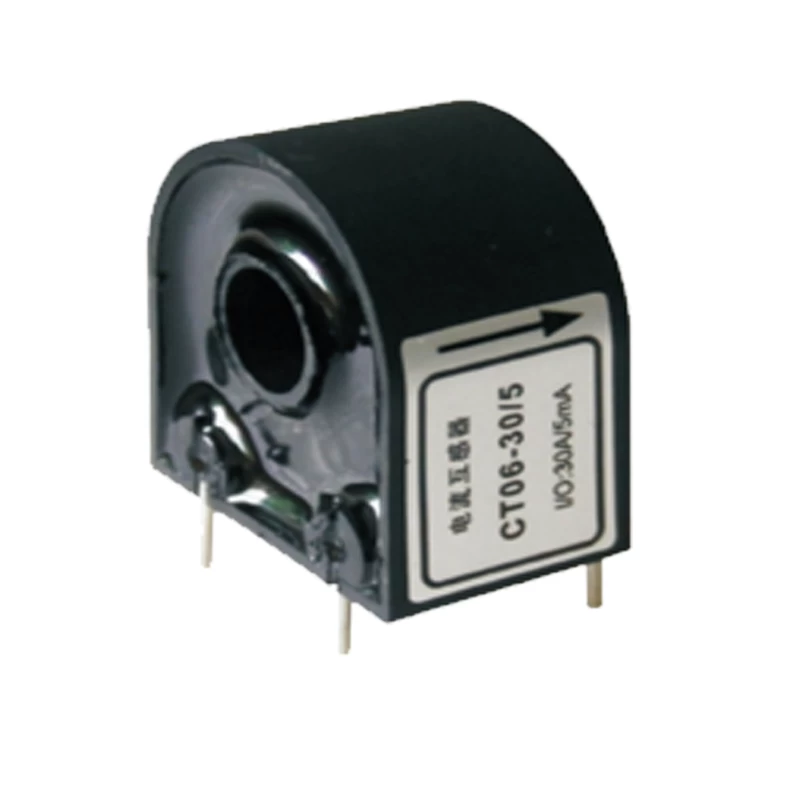

Product Name: PCB Mounting Mini Precision Current
Transformer
Products Range:
Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Power Systems. Measuring instruments. Relay
protection, metered. High frequency switching power supplies.
Packing Details: PP packing belt + Outer packing hard paper carton + inner
packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for
standard parts.
Advantages: Our Factory is made up of 500 people, huge output can be
finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected
and UL certified. We accept custom made and design service.
Product Specification
|
MCT PN
|
Rated IN/OUT
|
Accuracy
|
Linearity Range
|
Phase shift
|
Load resistance
|
Isolated withstand voltage
|
Threading aperture,
Unit:mm
|
|
MCT06A30
|
30A/5mA
|
0.2
|
0~60A
|
≤10’
|
≤800Ω
|
3000V
|
Φ8.80
|
|
MCT06A50
|
50A/10mA
|
0.2
|
0~100A
|
≤10’
|
≤500Ω
|
3000V
|
Φ8.80
|

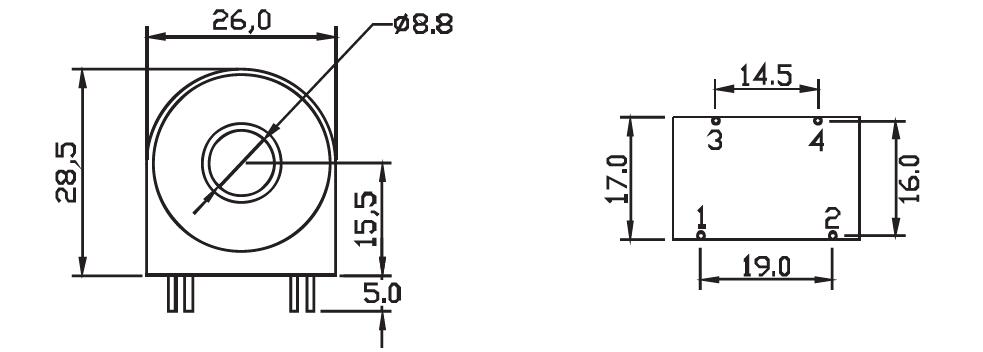

Dimension：mm
Notification
Power supply is needed when operational amplifier is added
to the transformer. ±15V，±12V or according to the actual operation.
OP07 series of operational amplifier is recommended.
The fixed temperature coefficient of resistance in the
circuit must be over 50PPM.
Welcome customized type requirements.
If you have any questions, please contact us or leaving your comments, we will
give you fast reply.
