PCB Power Transformer UI Series Low Frequency Encapsulated Transformer

UI48 Printed Circuit Board Flat type transformers Output Power: 40.0 VA – 60.0 VA. Vacuum-encapsulated, bobbin type with dual chamber Windings. Excellent temperature fluctuation resistance properties. High electrical safety and long service-life features. Self-extinguishing cast housing and sealing material. RoHS Directive-compliant.



New designing UI48 flat type electronic encapsulated transformers from Hefei Mycoil Technology Co., LTD. High quality and factory price, all materials are environmental protected, we accept small order, we can make tooling to meet customer's different specifications.


Quick Details

Part No: UI48 40.0 VA – 60.0 VA

Brand name: MCT

Output Power up to 60.0 VA

Custom made: Available

Temperature class ta 70 °C/B

Logo: Can be customized

High voltage resistance

Packing: Carton, can custom

Bobbin: Dual chamber windings

MOQ: Any quantity

Certification: ISO9001,ROHS,CE

OEM: Available

Lead time: 25 days after payment

Shipping: Air, Ship, etc



Part Information

Product Name: PCB Power Transformer UI Series Low Frequency Encapsulated Transformer

Product Range: Transformers, Inductors, Choke coils, Transformer bobbins, Magnetic cores.

Applications: Household appliances, printed circuit boards, low power industrial control products, meters and other industries.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.



Product Part Number

Frame size/Core height

Output Power

ta 70°C/B

Size(h)

Weight

Packaging unit

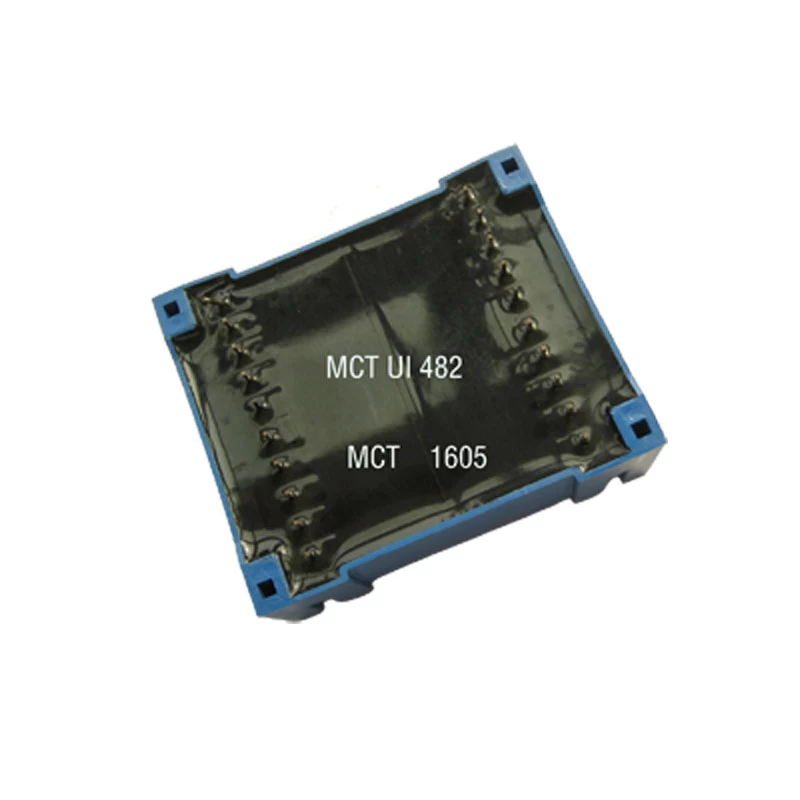

MCT UI 481/17.0mm

40.0V/A

38.7mm

0.780kg

10pieces

MCT UI 482/26.0mm

60.0V/A

47.9mm

1.100kg

10pieces


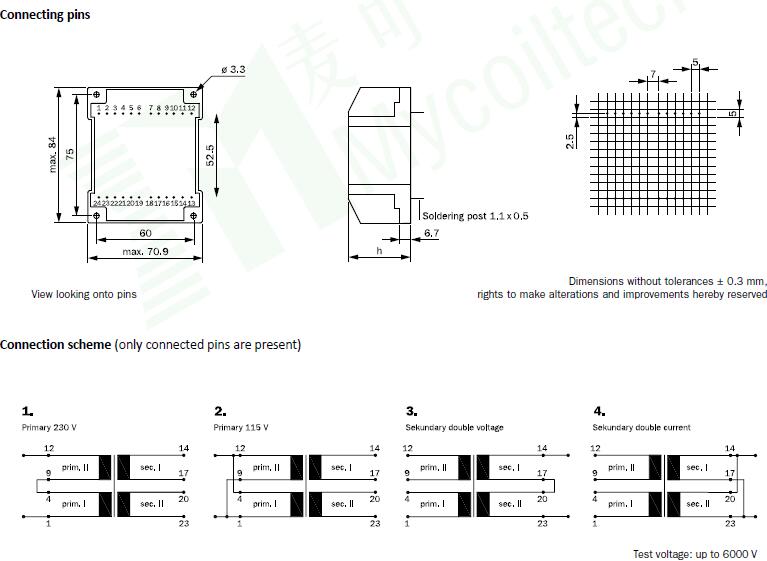

40.0 VA ta 70 °C. Frame size/Core height: MCT UI 481./17.0mm. No short-circuit proof
.

Order No.

Primary

Voltage V

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

Connection

scheme

MCT UI 481 0001

2×115

1-4/9-12

2×6

3333

14-17/20-23

2×7.3

1-4

MCT UI 481 0002

2×115

1-4/9-12

2×9

2222

14-17/20-23

2×10.8

1-4

MCT UI 481 0003

2×115

1-4/9-12

2×12

1666

14-17/20-23

2×14.3

1-4

MCT UI 481 0004

2×115

1-4/9-12

2×15

1333

14-17/20-23

2×17.7

1-4

MCT UI 481 0005

2×115

1-4/9-12

2×18

1111

14-17/20-23

2×21.7

1-4


60.0 VA ta 70 °C. Frame size/Core height: MCT UI 482./26.0mm. No short-circuit proof.

Order No.

Primary

Voltage V

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

Connection

scheme

MCT UI 482 0007

2×115

1-4/9-12

2×6

5000

14-17/20-23

2×7.3

1-4

MCT UI 482 0008

2×115

1-4/9-12

2×9

3333

14-17/20-23

2×10.5

1-4

MCT UI 482 0009

2×115

1-4/9-12

2×12

2500

14-17/20-23

2×14.0

1-4

MCT UI 482 0010

2×115

1-4/9-12

2×15

2000

14-17/20-23

2×17.5

1-4

MCT UI 482 0011

2×115

1-4/9-12

2×18

1666

14-17/20-23

2×21.1

1-4

MCT UI 482 0012

2×115

1-4/9-12

2×21

1428

14-17/20-23

2×24.5

1-4


Product Specification

Best quality UI Type Encapsulated Power Transformer from China factory MCT


If you have any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

TEL: +86 551 6619 6829
