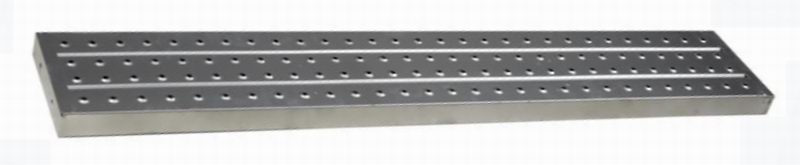

Pre-galvanized South-east Asia Type Steel Planks without Hooks

South-east Asia Type Plain End Steel Plank is the kind of plank without hook ends, it is a light weight and economical scaffolding plank that made by 1.5mm or 1.2mm thickness of steel plate. The plank shall be fixed to the scaffolding tube or transom by board retainer clamps.


  • MaterialSteel


South-east Asia Type Steel Plank, 240mm (9.5") wide, t=1.5mm, without hooks

Code Size (Metric) Size (Imperial) Weight(kg) Weight(lbs)
SP5.24400 240x4000mm 9.5" x 13'-1 1/2" 19.06  42.03
SP5.24350 240x3500mm 9.5" x 11'-5 13/16" 16.72  36.87
SP5.24300 240x3000mm 9.5" x 9'-10 1/8" 14.38  31.71
SP5.24250 240x2500mm 9.5" x 8'-2 7/16" 12.04  26.55
SP5.24200 240x2000mm 9.5" x 6'-6 3/4" 9.70  21.39
SP5.24150 240x1500mm 9.5" x 4'-11 1/16" 7.37  16.25
SP5.24100 240x1000mm 9.5" x 3'-3 3/8" 5.03  11.09
SP5.24050 240x500mm 9.5" x 1'-7 11/16" 2.69  5.93
* Material: Steel grade Q235. Plank thickness 1.5mm,width 240mm, height 45mm.

Surface Treatment: Pre-galvanized is recommended, hot dip galvanized , powder coated or painted is also available.



South-east Asia Type Steel Plank, 210mm (8.26") wide, t=1.5mm, without hooks

Code Size (Metric) Size (Imperial) Weight(kg) Weight(lbs)
SP5.21400 210x4000mm 8.26" x 13'-1 1/2" 17.46  38.50
SP5.21350 210x3500mm 8.26" x 11'-5 13/16" 15.32  33.78
SP5.21300 210x3000mm 8.26" x 9'-10 1/8" 13.17  29.04
SP5.21250 210x2500mm 8.26" x 8'-2 7/16" 11.03  24.32
SP5.21200 210x2000mm 8.26" x 6'-6 3/4" 8.89  19.60
SP5.21150 210x1500mm 8.26" x 4'-11 1/16" 6.74  14.86
SP5.21100 210x1000mm 8.26" x 3'-3 3/8" 4.60  10.14
SP5.21050 210x500mm 8.26" x 1'-7 11/16" 2.45  5.40
* Material: Steel grade Q235. Plank thickness 1.5mm,width 240mm, height 45mm.

* Surface Treatment: Pre-galvanized is recommended, hot dip galvanized , powder coated or painted is also available.
