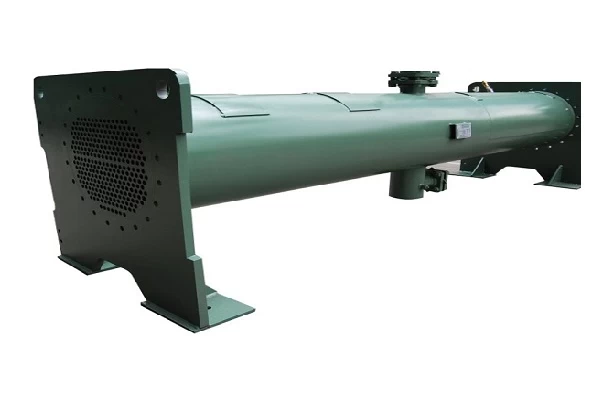

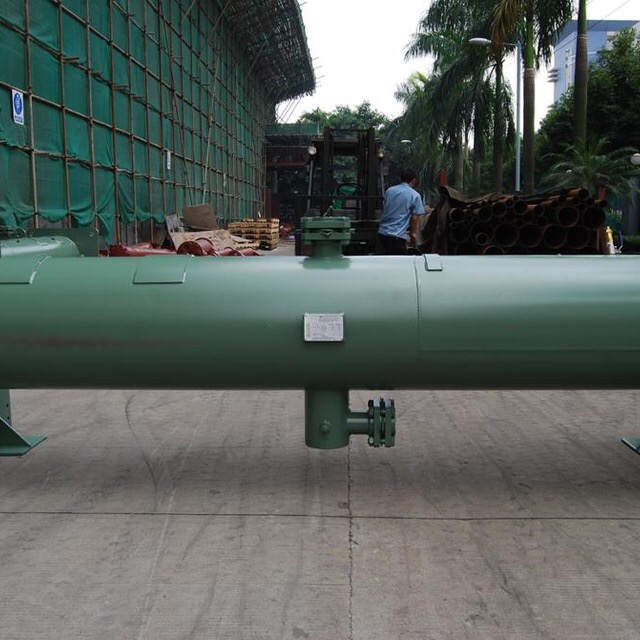

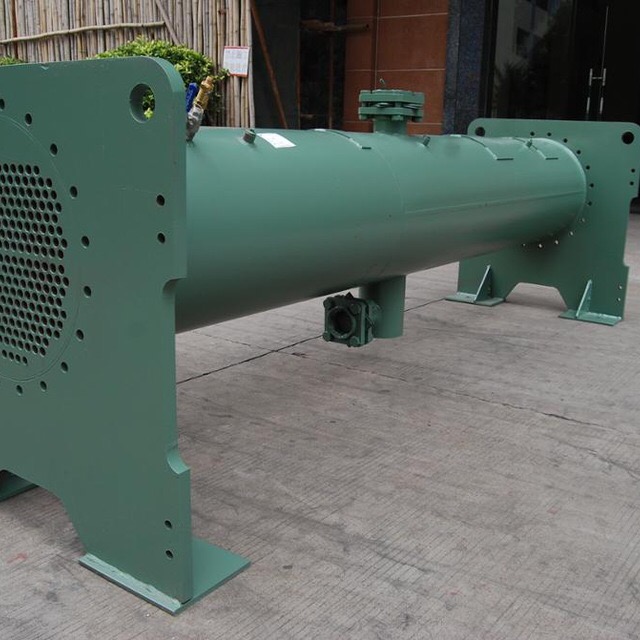

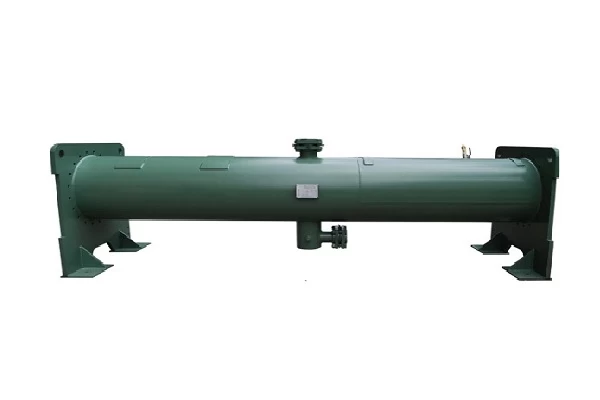

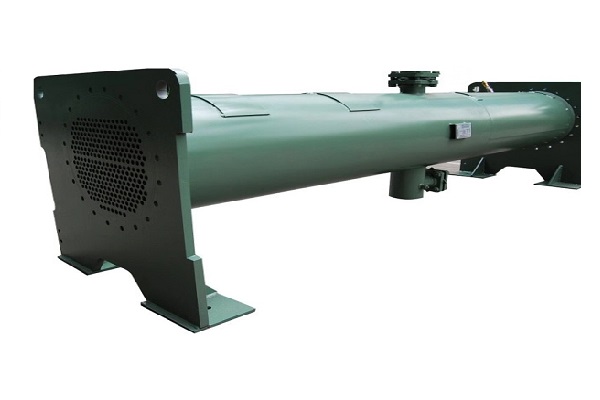

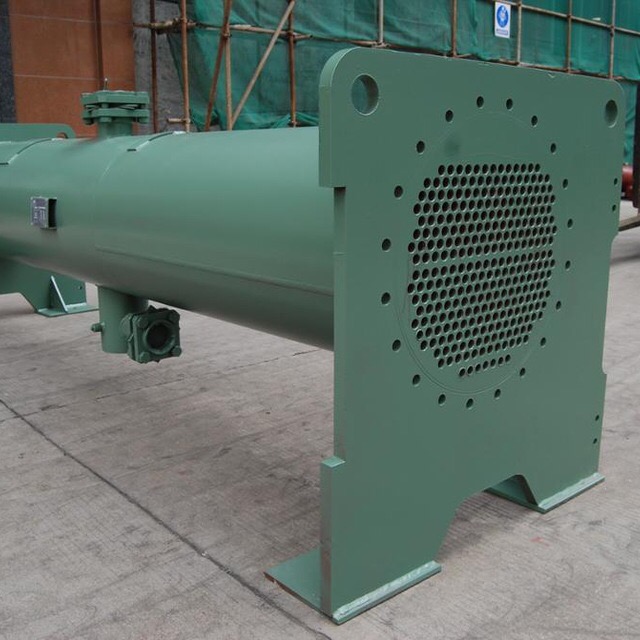

Shell And Tube Steam Heat Exchanger

Shell and tube evaporators are specially designed for systems such as air conditioning systems, cooling systems, and heat pump machining. Its convenient maintenance, high heat transfer performance, is widely used in chemical processes, power plants, refrigeration machinery and other occasions.



Shell And Tube Steam Heat Exchanger


Profile

  • Shell and tube evaporators are specially designed for systems such as air conditioning systems, cooling systems, and heat pump machining. Its convenient maintenance, high heat transfer performance, is widely used in chemical processes, power plants, refrigeration machinery and other occasions.
  • Internal & external enhanced groove, ensure high heat transfer efficiency;
  • Al-brass and Ni/Cu tubes are available for seawater application;
  • Cooling capacity from 2.5TR to 1,000TR;
  • One to eight refrigerating circuits available;
  • CE ,ASME and BR1 certificate are optional;
  • Specification and performance can be customized as per requirements.

Shell And Tube Steam Heat Exchanger

Shell And Tube Steam Heat Exchanger


Descriptions
1. Self-made ASME high performance evaporator, condenser and patent heat recovery condenser upon request.
2. Fabricated from raw metal sheets, cutting, bending, rolling are self made under China Authority D1, D2 Certification.
3. All associated parts including covers, tube sheet, eliminator, flanges, sensor wells, are all made within the
4. production line.
5. X-ray Leakage test, Water Bath Leakage Test, N2 Pressure Test with third party certification for each heat exchanger before shipment.

Shell And Tube Steam Heat Exchanger
 Shell and Tube heat Exchanger

Parameters

  • Evaporator: i) Dry Type, ii) Flooded Type, iii) Spray Falling Film type;
  • Condenser: Multi-circuits, Cu/Ni sea water application, Stainless, Titanium;
  • Shell and Tube Heat Exchanger / Sea Water Heat Exchanger / Marine Heat Exchanger / Water Heat Exchanger
  •  Cooling Capacity:
1. UCH A series (15,120Kcal/h to 604,800Kcal/h):    Matched with single compressor unit.
2. UCH B series (24,192Kcal/h to 1,330,560Kcal/h): Matched with double compressors unit.
3. UCH C series (72,576Kcal/h to 181,440Kcal/h): Matched with three compressors unit.
Suitable for R22, R134A, R407C, R410A, R404A, etc.



please contact me


Ann
Sales Engineer

H'Stars (Guangzhou) Refrigerating Equipment Group Ltd.
No.1 Guoyuan 4th Road,the Northern Part of the Eastern Section of Guangzhou Econmic &Technology Development District,Guangzhou,China.
Tex : +86 -20-62266755 ext 673| Fax:  +86 -20-62266081
Mobile/WhatsApp/Wechat: +8615800240365
Web:  www.hstarschiller.com   www.heatexchangermaker.com
