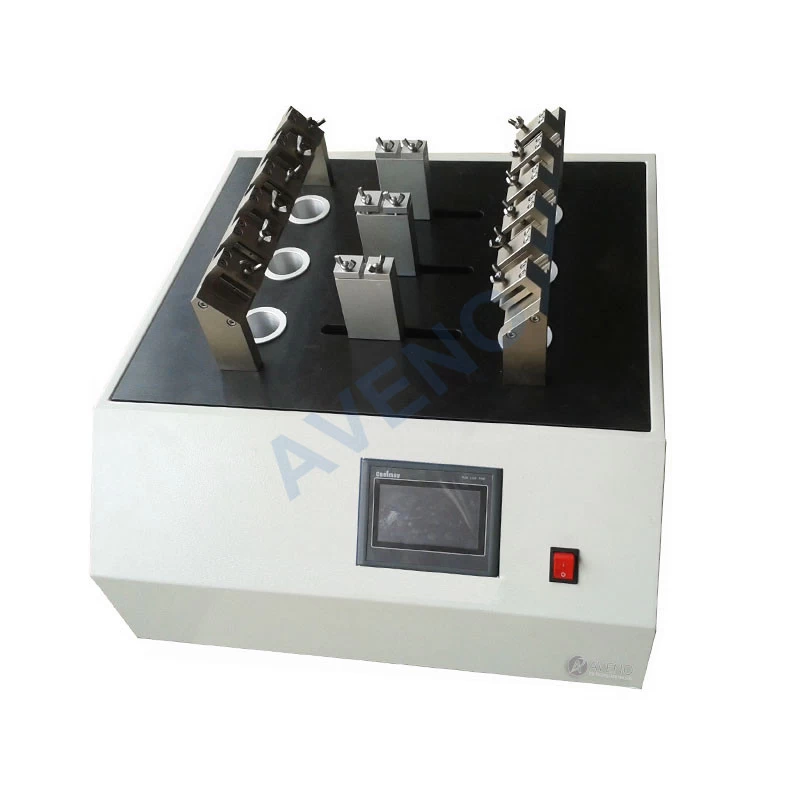

AF35-Shoelace And Eyelets Abrasion Tester
Application Of Shoelace And Eyelets Abrasion Tester
Shoelace And Eyelets Abrasion Tester is used to measure the frictional property of shoelaces that repeated abrade the eyelet, or measure the frictional property of standard eyelet that repeated abraded by shoelaces.
Standards Of Shoelace And Eyelets Abrasion Tester
SATRA TM93
Key Specification Of Shoelace And Eyelets Abrasion Tester
|
Model
|
AF35 Shoelace And Eyelets
Abrasion Tester
|
|
Test
position
|
4
and 6 groups option
|
|
Load
weight
|
455g±5g
|
|
Reciprocating
stroke
|
76±2
mm
|
|
Test
speed
|
100±5cpm
|
|
Standard
eyelet
|
Brass,
inner diameter 4.5mm
|
|
Counter
|
Touch
screen, 0～99,999,999
can be set
|
|
Power
supply
|
AC220V,
50/60HZ
|
|
Dimension
|
55× 58×41
cm
|
|
Weight
|
60
kg
|
Accessories Of Shoelace And Eyelets Abrasion Tester
|
Standard
Accessories
|
Standard shoe
eye
|
6pcs
|
|
455g load
weight
|
6pcs
|
|
Power line
|
1pc
|
