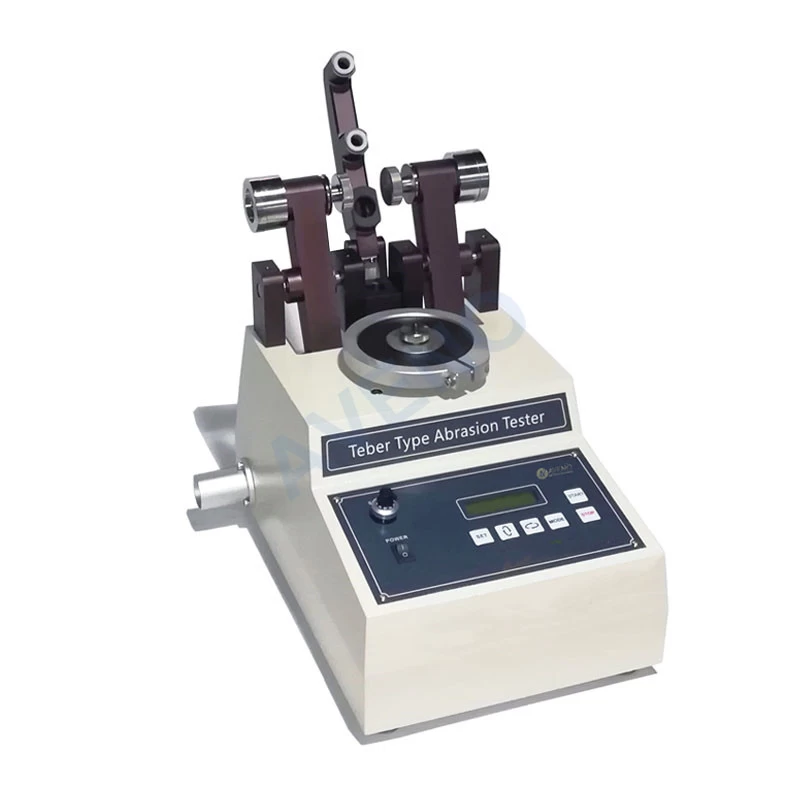

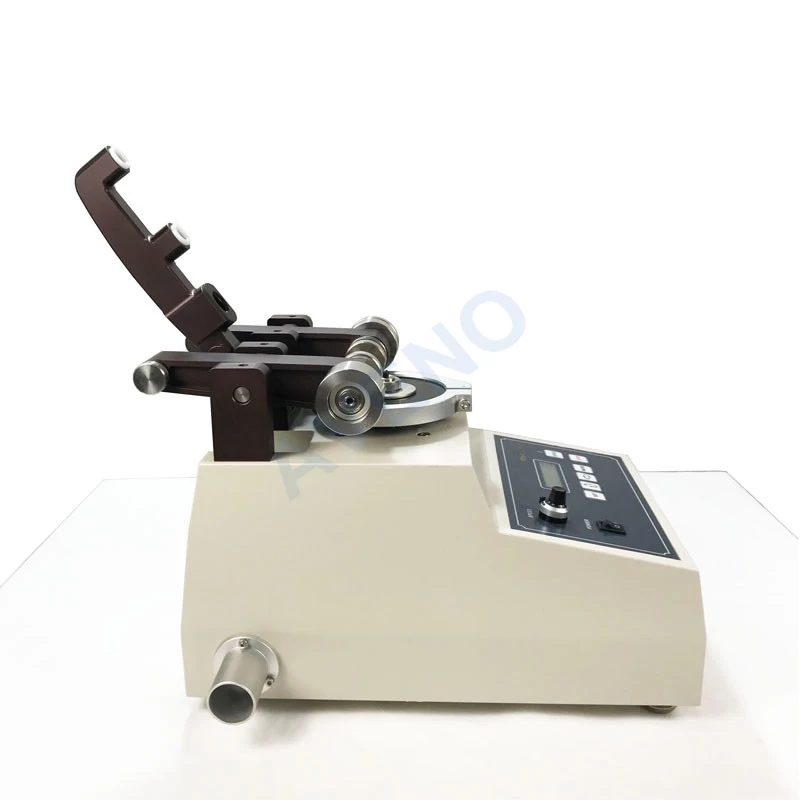

AF46-Taber Abrasion Tester
Application Of Taber Abrasion Tester
Taber Abrasion Tester is used for abrasion resistance test of cloth, paper, paint, plywood, leather, natural rubber, etc.
Test Principle Of Taber Abrasion Tester
Use grinding wheel and apply a certain weight on it and grinding. After the specified number of revolutions, take out the sample and observe its condition or compare the weight difference and record.
Standards Of Taber Abrasion Tester
ASTM D1044, ASTM D3884, ASTM D1044, ASTM D 4060, DIN52347, DIN53109, DIN 53754, DIN 53799, ISO 5470-1, ISO 9352, TAPPI T476, JIS K7204, JIS A1453, JIS K6902, JIS K6964, JISL1096
Key Specification Of Taber Abrasion Tester
|
Model
|
AF46-1
|
AF46-2
|
|
Test position
|
1position
|
2position
|
|
Control mode
|
LCD control
|
|
Rotation speed
|
(60 ± 2) r/min, (72 ± 2) r/min.
|
|
Load
|
250g, 750g, 1000g
|
|
Counter
|
LCD, 0 ~ 999999
|
|
Wheels model
|
CS-5, CS-10F, CS-17, CS-32, CS-33, CS-35, H-10, H-18, H-22,
H-38 (optional)
|
|
Dimension
|
53*32*31cm
|
|
Weight
|
18kg
|
|
Power
|
AC220V, 50/60HZ
|
Accessories Of Taber Abrasion Tester
|
Standard Accessories
|

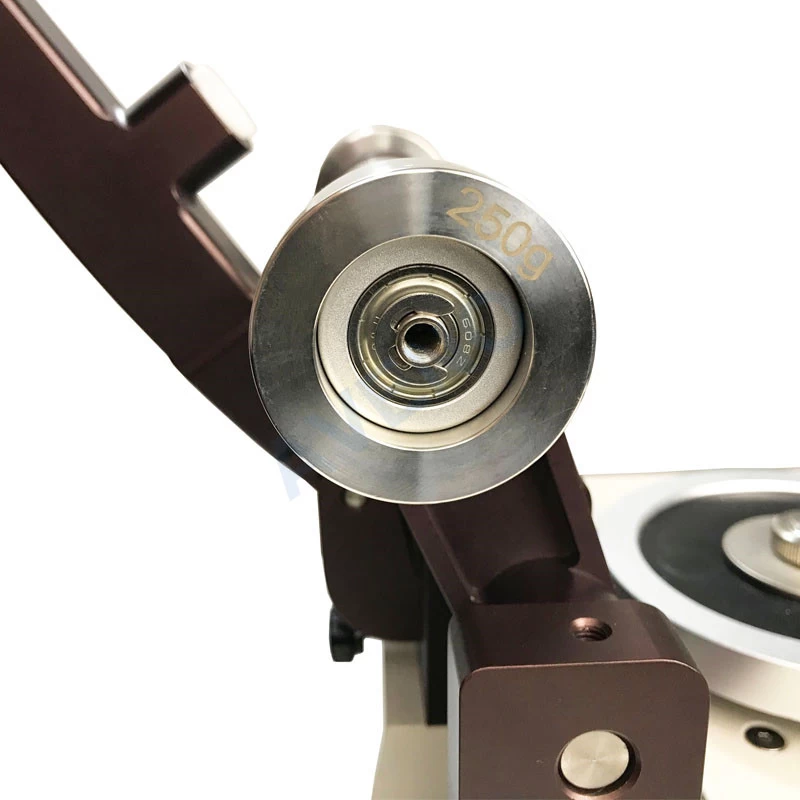

250g weight
|
1set
|
|
750g weight
|
1set
|
|
Sticker
|
5pcs
|
|
Power line
|
1pc
|
|
Option Accessories
|
Different
size of wheels
|
|
|

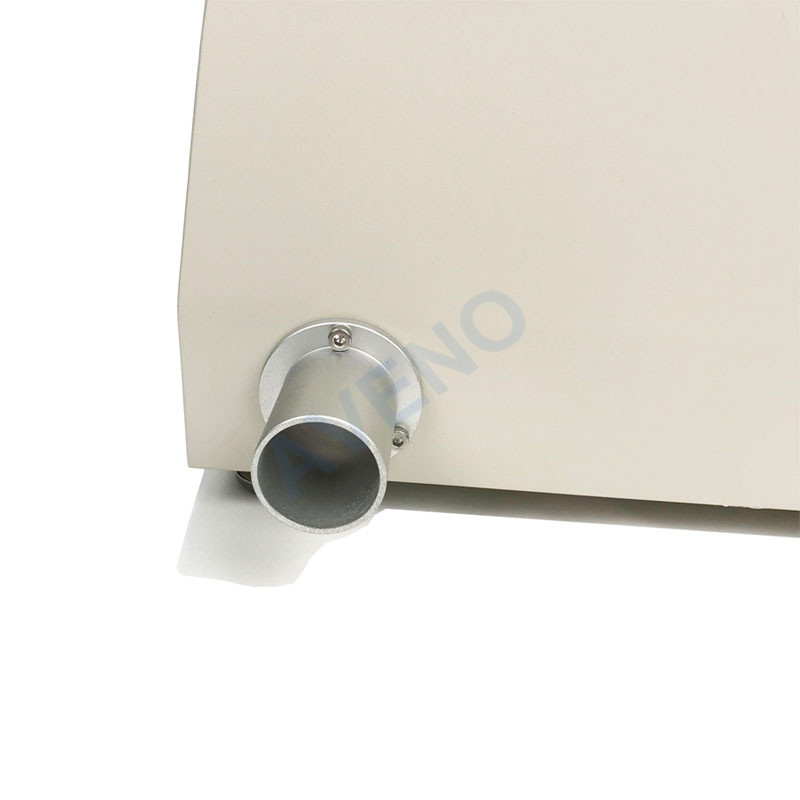

vacuum
cleaner
|
|
Related products

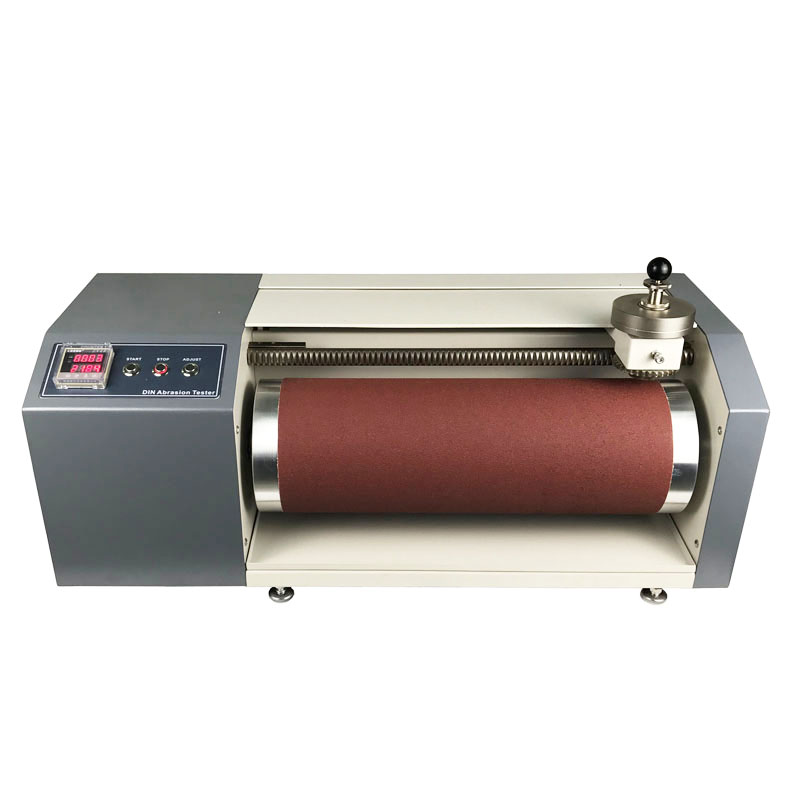

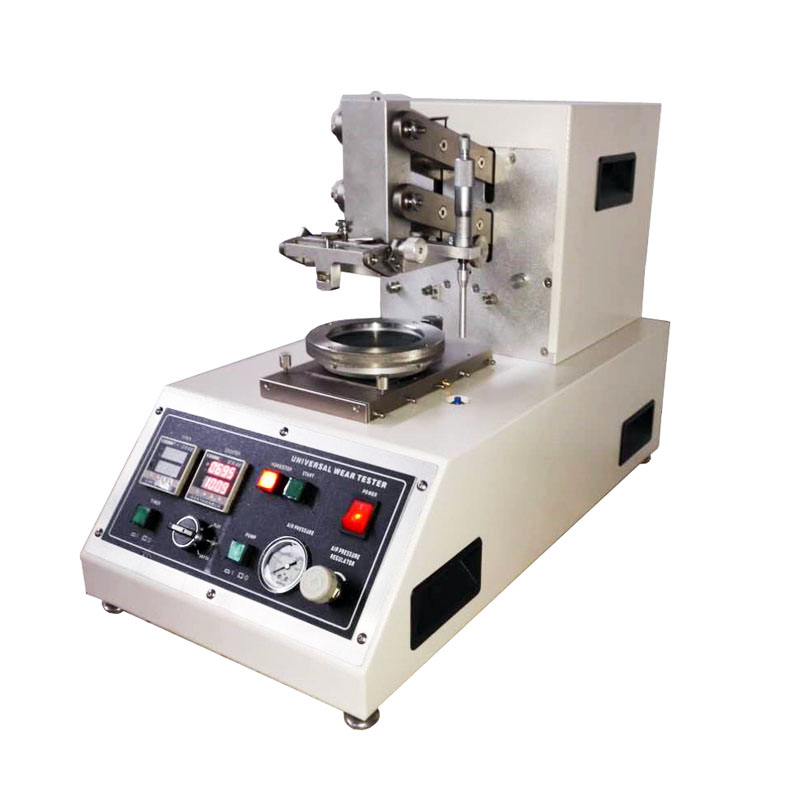

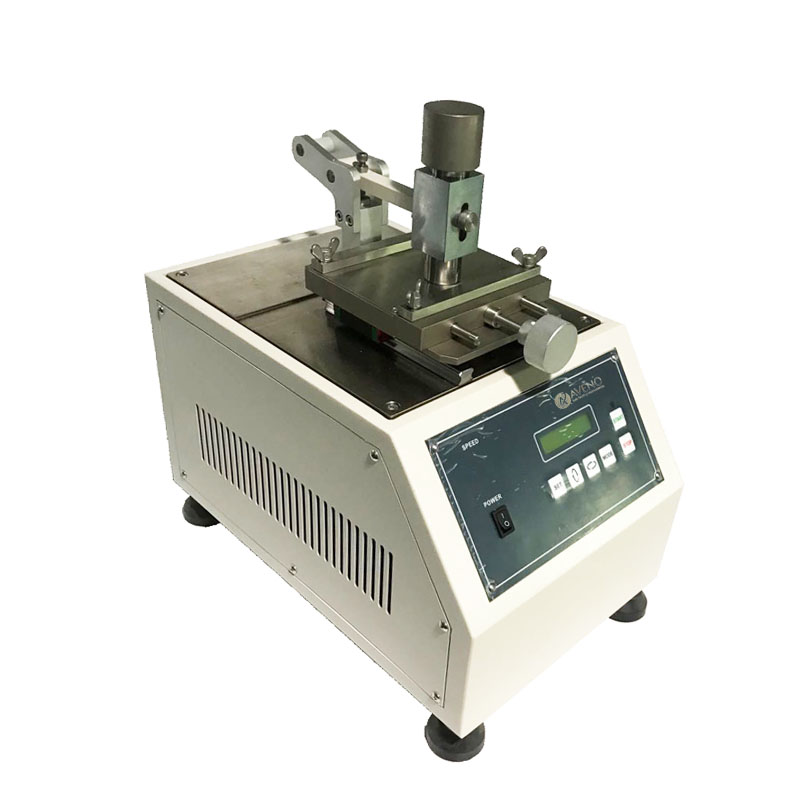

Universal Wear Tester (Stoll Quartermaster) IULTCS & Veslic Leather Abrasion Tester DIN Abrasion Tester
