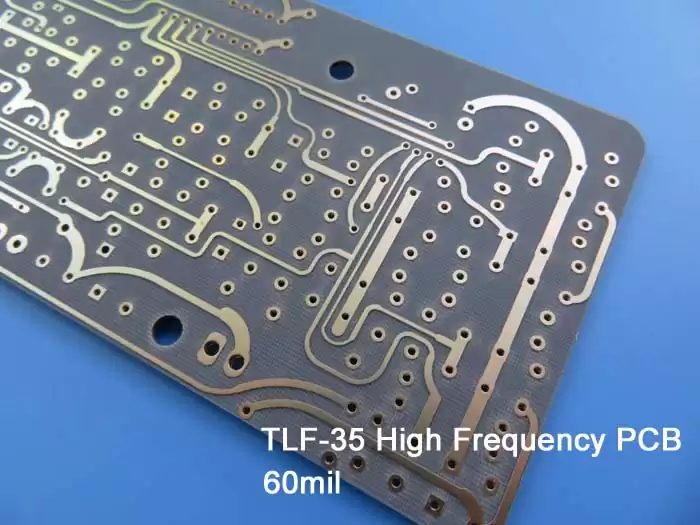

Taconic RF PCB Made on TLF-35 60mil 1.524mm With
Immersion Gold for Mixer, Filters and Couplers etc.
TLF-35A has excellent peel strength for 1/2
ounce and 1 ounce copper (even in comparison to standard epoxy materials), a
critical aspect whenever rework is required.
The ultra low moisture absorption rate and low
dissipation factor of TLF-35A minimizes phase shift with frequency. TLF-35A is
dimensionally stable due to the use of woven fabrics in its design. TLF-35A
base materials exhibit flammability of V-0, and are tested in accordance with IPC-TM-650.
TFL-35A has low dielectric constant at 3.5
+/-0.05, low dissipation factor at 0.002.
Benefits:
Low cost
Excellent peel strength
Exceptionally low DF
Low moisture absorption
Very high thermal reliability
Applications:
Filter, coupler, splitter, combiner and mixer
Antenna
High power Amplifier, TMA, TMB, LNA
Repeater
Passive components
Medical scanners
PCB Specifications:
|
PCB SIZE
|
165 x 50mm=1PCS
|
|
BOARD TYPE
|
Double
sided PCB
|
|
Number
of Layers
|
2 layers
|
|
Surface
Mount Components
|
YES
|
|
Through
Hole Components
|
NO
|
|
LAYER STACKUP
|
copper
------- 35um(1 oz)+plate TOP layer
|
|
TLF-35 1.524mm
|
|
copper ------- 35um(1oz) + plate BOT Layer
|
|
TECHNOLOGY
|
|
|
Minimum Trace and Space:
|
14
mil / 14 mil
|
|
Minimum
/ Maximum Holes:
|
0.4mm
/ 2.5mm
|
|
Number
of Different Holes:
|
0
|
|
Number
of Drill Holes:
|
0
|
|
Number
of Milled Slots:
|
0
|
|
Number
of Internal Cutouts:
|
0
|
|
Impedance
Control:
|
no
|
|
Number
of Gold finger:
|
0
|
|
BOARD
MATERIAL
|
|
|
Glass
Epoxy:
|
TLF-35
1.524mm
|
|
Final
foil external:
|
1.5
oz
|
|
Final
foil internal:
|
N/A
|
|
Final
height of PCB:
|
1.6
mm ±10%
|
|
PLATING AND COATING
|
|
|
Surface Finish
|
Immersion gold
|
|
Solder
Mask Apply To:
|
NO
|
|
Solder
Mask Color:
|
N/A
|
|
Solder
Mask Type:
|
N/A
|
|
CONTOUR/CUTTING
|
Routing
|
|
MARKING
|
|
|
Side of
Component Legend
|
N/A
|
|
Colour
of Component Legend
|
white
|
|
Manufacturer
Name or Logo:
|
Marked on the
board in a conductor and leged FREE AREA
|
|
VIA
|
N/A
|
|
FLAMIBILITY RATING
|
UL
94-V0 Approval MIN.
|
|
DIMENSION TOLERANCE
|
|
|
Outline
dimension:
|
0.0059"
|
|
Board
plating:
|
0.0029"
|
|
Drill
tolerance:
|
0.002"
|
|
TEST
|
100%
Electrical Test prior shipment
|
|
TYPE OF ARTWORK TO BE SUPPLIED
|
email
file, Gerber RS-274-X, PCBDOC etc
|
|
SERVICE AREA
|
Worldwide,
Globally.
|
Data Sheet of Taconic TLF-35:
|
TLF-35-xxxx-A
TYPICAL VALUES
|
|
Property
|
Test Method
|
Units
|
Value
|
Units
|
Value
|
|
Dielectric
Constant at 1.9GHz
|
IPC-TM 650 2.5.5.5.1
Mod
|
|
3.50±0.05
|
|
3.50±0.05
|
|
Dissipation
Factor at 1.9GHz
|
IPC-TM 650 2.5.5.5.1
Mod
|
|
0.0016
|
|
0.0016
|
|
Dissipation
Factor at 10GHz
|
IPC-TM 650 2.5.5.5.1
Mod
|
|
0.0022
|
|
0.0022
|
|
Water
absorption
|
IPC-TM 650 2.6.2.1
|
%
|
0.03
|
%
|
0.03
|
|
Peel
Strength(1oz copper)
|
IPC-TM 650 2.4.8
|
Lbs./linear inch
|
10
|
M/mm
|
1.8
|
|
Volume
Resistivity
|
IPC-TM 650 2.5.17.1
|
Mohm.cm
|
2.0 x 109
|
Mohm.cm
|
2.0 x 109
|
|
Surface
Resistivity
|
IPC-TM 650 2.5.17.1
|
Mohm
|
3.0 x 108
|
Mohm
|
3.0 x 108
|
|
Flexural
Strength Lengthwise
|
IPC-TM 650 2.4.4
|
psi
|
13,000
|
M/mm2
|
90
|
|
Flexural
Strength Crosswise
|
IPC-TM 650 2.4.4
|
psi
|
13,000
|
M/mm2
|
90
|
|
Thermal
Conductivity
|
IPC-TM 650 2.4.50
|
W/m/K
|
0.37
|
W/m/K
|
0.37
|
|
x-y
CTE(50-150℃）
|
IPC-TM 650 2.4.41
|
ppm/℃
|
9-12
|
ppm/℃
|
9-12
|
|
z CTE(50-150℃）
|
IPC-TM 650 2.4.41
|
ppm/℃
|
80
|
ppm/℃
|
80
|
|
Flammability
|
UL-94
|
|
V-0
|
|
V-0
|
