We are ISO9001/2015 factory, specialized in manufacturing coil type products( kinds of Transformers, Chokes, inductors, Ferrite Cores, Transformer Bobbins) for 10 years in china. Supply customized three phase common mode chokes, current compensated chokes, provide free samples for your testing.
Quick Details
|
Part No: Current Compensated Chokes
|
Brand name: MCT
|
|
Voltage Rating-UR: 250/440 Vac
|
Custom made: Available
|
|
High Voltage Test-Up: 2500Vac-50HZ-2Sec
|
Logo: Can be customized
|
|
Current Rating -IR: At 50Hz and 40°
|
Packing: Carton, can custom
|
|
Inductance Tolerance: -30% to+50%
|
MOQ: Any quantity
|
|
Test Frequency: -100kHz for LR≤1mH
|
OEM: Available
|
|
Design: Toroidal Ferrite Core
|
Shipping: Air, Ship, etc
|
|
Lead time: 25 days after payment
|
Certification: ISO9001,ROHS,CE
|
Part Information

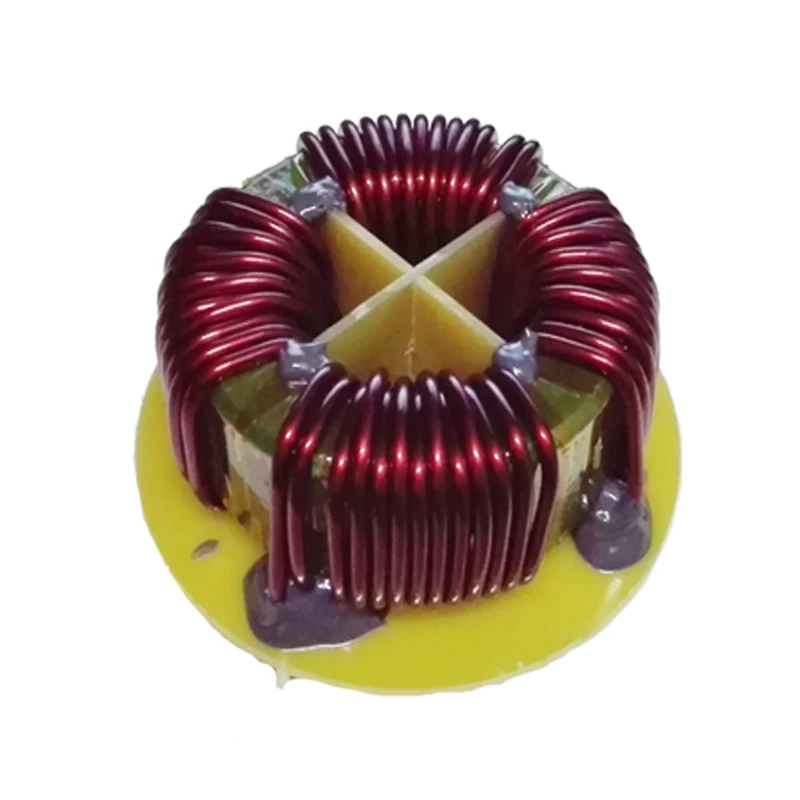

Product Name: Three/Four Phase Common Mode Chokes For Power Line
Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Switching power supplies. Suppression of common-mode and differential-mode interferences. High power switch-mode power supplies for consumer electronics. Power line chokes.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Product Specification
Electrical Data and Part Number(PN):
|
IR in A
|
LR in uH
|
RDC/mΩ
|
ΦA in mm
|
PN
|
|
10.0
|
2700
|
35
|
1.05
|
MCT-BBB-C01
|
|
12.0
|
2400
|
25
|
1.25
|
MCT-BBB-C02
|
|
16.0
|
1800
|
15
|
1.55
|
MCT-BBB-C03
|
|
20.0
|
1200
|
10
|
1.65
|
MCT-BBB-C04
|
|
25.0
|
1000
|
6
|
2.05
|
MCT-BBB-C05
|
|
30.0
|
820
|
4
|
2.30
|
MCT-BBB-C06
|
Electrical Data and Part Number(PN):
|
IR in A
|
LR in uH
|
RDC/mΩ
|
ΦA in mm
|
PN
|
|
10.0
|
4700
|
35
|
1.45
|
MCT-BBB-C07
|
|
12.0
|
3900
|
25
|
1.55
|
MCT-BBB-C08
|
|
16.0
|
3000
|
15
|
1.75
|
MCT-BBB-C09
|
|
20.0
|
2000
|
10
|
2.05
|
MCT-BBB-C10
|
|
25.0
|
1000
|
6
|
2.30
|
MCT-BBB-C11
|
|
30.0
|
680
|
4
|
2.55
|
MCT-BBB-C12
|
Electrical Data and Part Number(PN):
|
IR in A
|
LR in uH
|
RDC/mΩ
|
ΦA in mm
|
PN
|
|
8.0
|
4700
|
25
|
1.40
|
MCT-BBB-C13
|
|
10.0
|
3900
|
20
|
1.60
|
MCT-BBB-C14
|
|
12.0
|
3000
|
15
|
1.80
|
MCT-BBB-C15
|
|
16.0
|
2400
|
10
|
2.10
|
MCT-BBB-C16
|
|
22.0
|
2000
|
7
|
2.40
|
MCT-BBB-C17
|
For more details, welcome to contact us.
