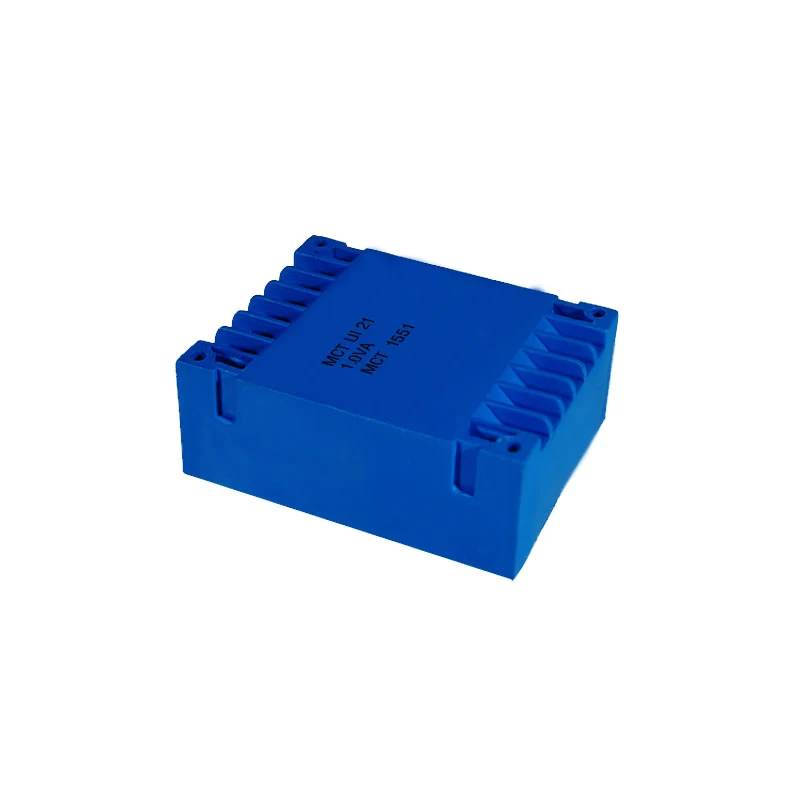

UI Series Vacuum Encapsulated Transformer for PCB Mount

Printed-Circuit-Board UI Flat-type transformers Output Power: 1.0 VA. Vacuum-encapsulated, bobbin type with dual chamber Windings. Excellent temperature fluctuation resistance properties. High electrical safety and long service-life features.  Self-extinguishing cast housing and sealing material. RoHS Directive-compliant.



Professional magnetic components factory, supplied various types electronic encapsulated transformers, inductors, transformer bobbins, magnetic cores. Our Factory is made up of 500 people, huge output can be finished every day. We have a technical team consist of 5 experienced engineers. If you have UI/EI power encapsulated transformer projects, you can send specification to us, we can quickly make encapsulated transformer samples for your testing. Our engineers also can design to meet your requirements.


Quick Details

Part No: UI 21 1.0VA

Brand name: MCT

Output Power up to 1.0 VA

Custom made: Available

Temperature class ta 70 °C/B

Logo: Can be customized

High voltage resistance

Packing: Carton, can custom

Bobbin: Dual chamber windings

MOQ: Any quantity

Certification: ISO9001,ROHS,CE

OEM: Available

Lead time: 25 days after payment

Shipping: Air, Ship, etc



Part Information

Product Name: UI Series Vacuum Encapsulated Transformer for PCB Mount

Product Range: Transformers, Inductors, Choke coils, Transformer bobbins, Magnetic cores.

Applications: Household appliances, printed circuit boards, low power industrial control products, meters and other industries.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.



Product Part Number

Frame size/Core height

Output Power

ta 70°C/B

Size(h)

Weight

Packaging unit

MCT UI 21/7.3mm

1.0V/A

14.9mm

0.050kg

40pieces


1.0 VA ta 70 °C. Frame size/Core height: MCT UI 21/7.3mm. No short-circuit proof.

Order No.

Primary

Voltage V

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

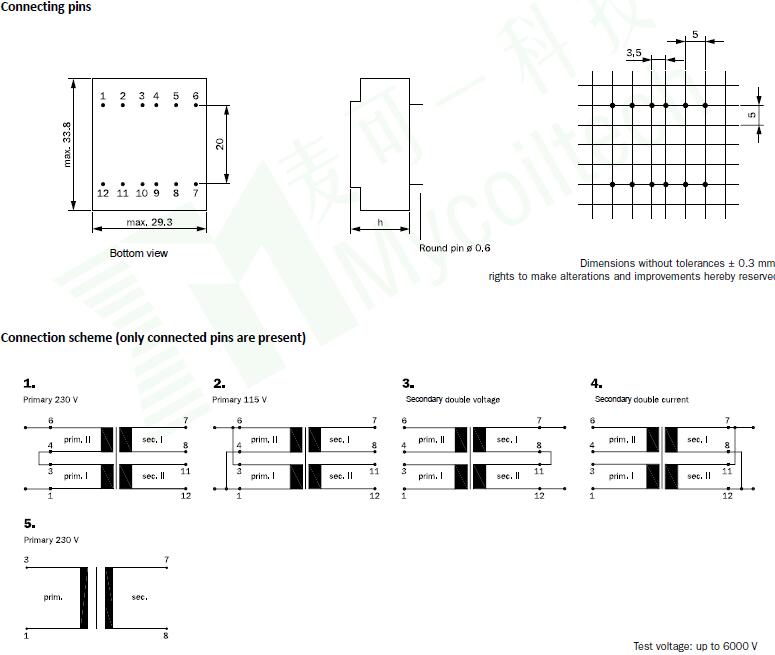

Connection

scheme

MCT UI 21 0011

230

1-3

1×6

333

7-8

1×4.7

5

MCT UI 21 0012

230

1-3

1×6

166

7-8

2×10.4

5

MCT UI 21 0013

230

1-3

1×7.5

133

7-8

1×12.9

5

MCT UI 21 0014

230

1-3

1×9

111

7-8

1×14.4

5

MCT UI 21 0015

230

1-3

1×10

100

7-8

2×15.4

5

MCT UI 21 0016

230

1-3

1×12

83

7-8

1×20.4

5

MCT UI 21 0017

230

1-3

1×15

67

7-8

2×24.6

5

MCT UI 21 0018

230

1-3

1×18

56

7-8

1×29.1

5

MCT UI 21 0019

230

1-3

1×21

47

7-8

1×34.0

5

MCT UI 21 0001

2×115

1-3/4-6

2×3

166

7-8/11-12

2×5.8

1-4

MCT UI 21 0002

2×115

1-3/4-6

2×6

83

7-8/11-12

2×11.4

1-4

MCT UI 21 0008

2×115

1-3/4-6

2×7.5

67

7-8/11-12

2×13.1

1-4

MCT UI 21 0003

2×115

1-3/4-6

2×9

56

7-8/11-12

2×17.1

1-4

MCT UI 21 0009

2×115

1-3/4-6

2×10

50

7-8/11-12

2×17.4

1-4

MCT UI 21 0004

2×115

1-3/4-6

2×12

41

7-8/11-12

2×21.8

1-4


Product Specification

UI21 Series Elecronic Encapsulated Transformer for Power Supply
