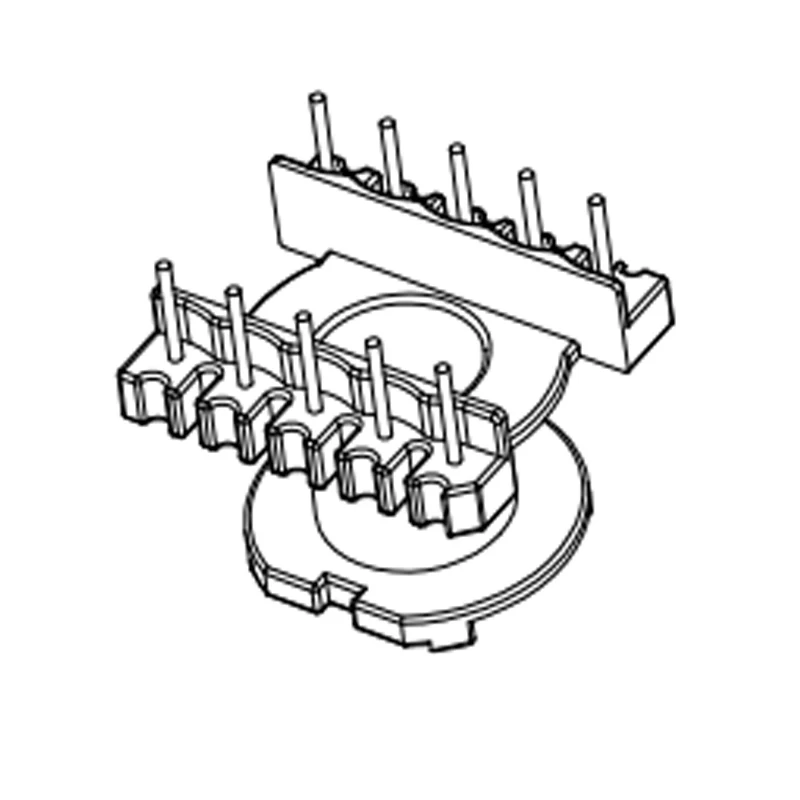

Vertical Bobbin EC28 For Electronic Isolation Transformer

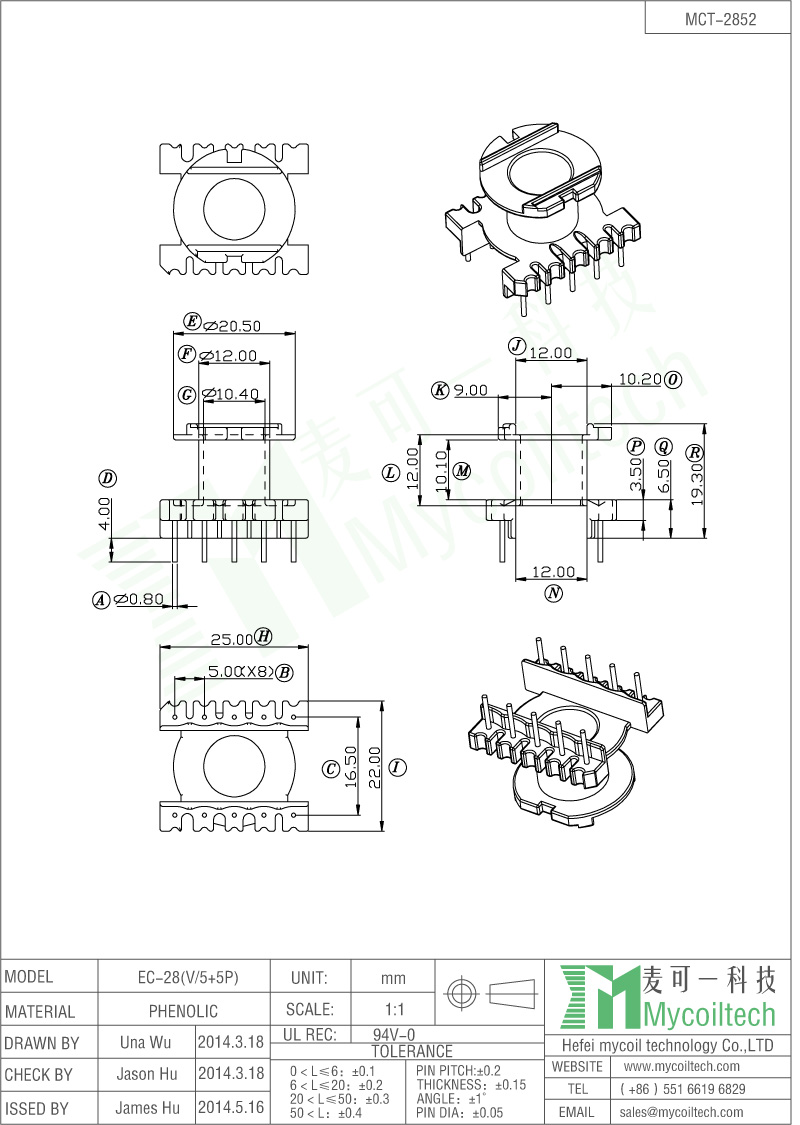

EC28 ferrite core transformer bobbin. 5+5 pin vertical EC/ER28 coil former. Bobbin Size=25.0mmX22.0mmX19.3mm. Parallel Distance=16.5mm. Pin pitch=5mm. Phenolic material transformer Bobbin. DIP transformer bobbin. UL REC:94V-0.



We are a factory,  specialized in producing and designing various SMPS transformers, coil inductors, filters, lan transformers for 10 years in China. We have professional oversea sells team, our main market is north American and Europe. OEM service and custom design also available.

Quick Details

Part Number: MCT-EC2852

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: Vertical Bobbin EC28  For Electronic Isolation Transformer

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu



Product Specification

EC28 ER28 current transformer bobbin
