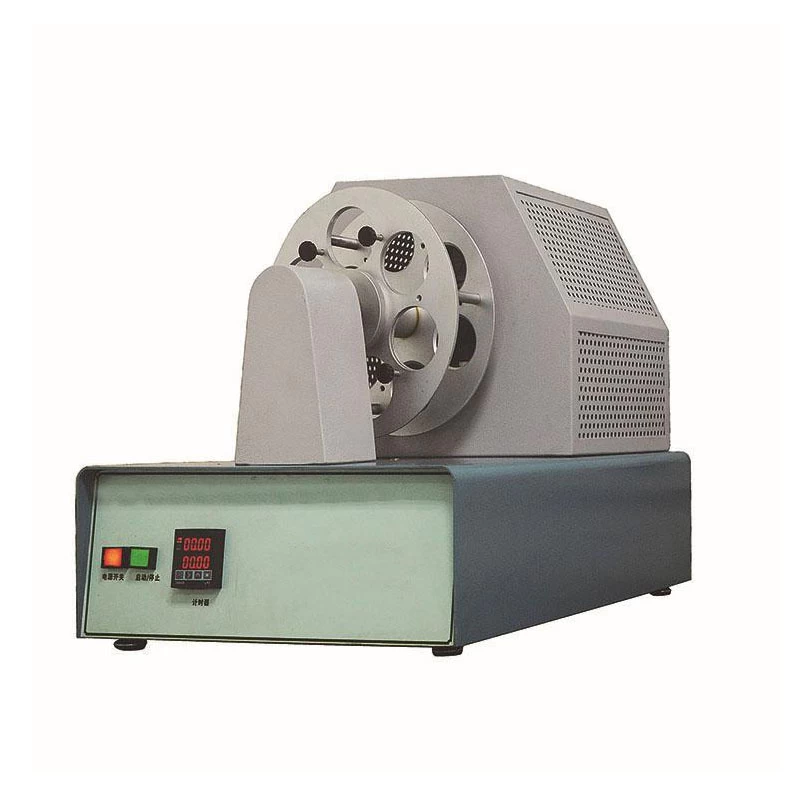

AF31 Water Vapor Permeability Tester
Application Of Water Vapor Permeability Tester
Water Vapor Permeability Tester is used to test resistance of water vapor permeability characteristic for vamp and upper shoe materials, both suitable for shoe surface and lining.
Standards Of Water Vapor Permeability Tester
EN ISO 20344, EN 344-1, EN420, DIN 5333, SATRA TM172
Key Specification Of Water Vapor Permeability Tester
|
Model
|
AF19 Water Vapor Permeability Tester
|
|
Test position
|
6
|
|
Beaker diameter
|
30mm
|
|
Beaker rotating speed
|
75±5r/min
|
|
Distance of beaker to fan
|
10mm
|
|
Power supply
|
AC220V, 50/60HZ
|
|
Dimension
|
40*56*43cm
|
|
Weight
|
50kg
|
