Best Price For Lab Planetary Ball Mill With 0.4L Volume and Output 100nm
SPECIFICATIONS
Working principle:

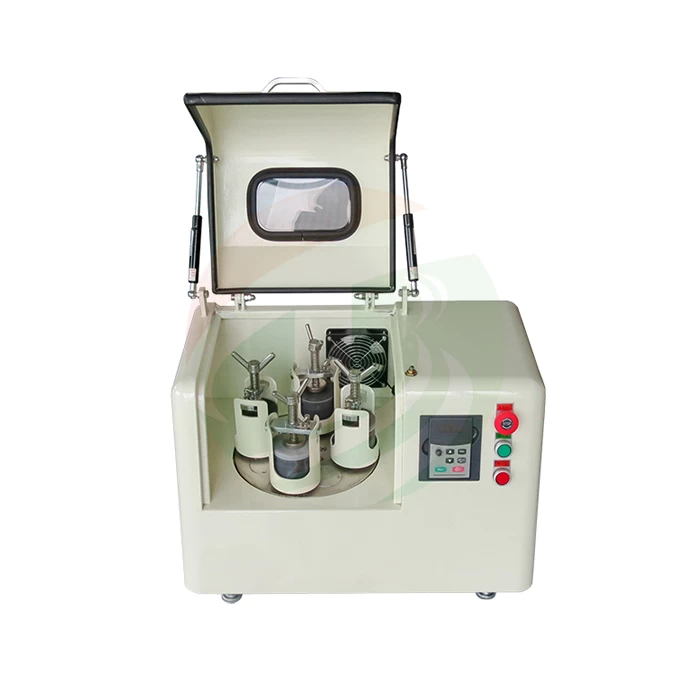

TOB-XQM series of variable frequency planetary ball mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be grinding and mixing by the mill with dry or wet method. The size of ground powder can be reduced to as small as 0.1 micrometer.
Technical Parameters:
|
Model
|
TOBXQM-0.4
|
|
Grinding tank volume (L)
|
0.1L*4
|
|
Grinding tank material
|
According to requirements
|
|

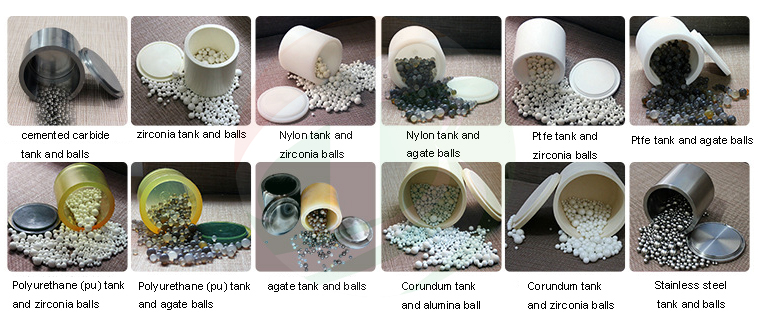

Grinding media
|
According to requirements
|
|
Maximum loading per tank
|
Material and grinding medium does not exceed two-thirds of the volume
|
|
Feeding material size
|
Soil material ≤ 10 mm, other materials ≤ 3 mm
|
|
Discharge material size
|
Min0.1um
|
|
Rotating speed
|
Revolution335r / min,
Rotation670 r / min
|
|
Speed ratio
(revolution: rotation)
|
1:2
|
|
Speed mode
|
Frequency, programmable stepless speed regulation, manual, automatic timing forward and reverse
|
|
Transfer method
|
Gear drive
|
|
Working Voltage
|
220V
|
|
Motor power and variable frequency power
|
0.75Kw
|
|
Way of working
|
Two or four cans work at the same time
|
|
Maximum continuous operating time
|
72hours
|
|
Programmable control (electronic monitoring)
|
Ball mill using high-tech microcomputer chip control, can be set to forward and reverse alternately run（0-999min）and forward, pause, reverse, pause, forward (0-999min) alternate operation according to the procedure. Particularly suitable for cooling or intermittent operation.
|

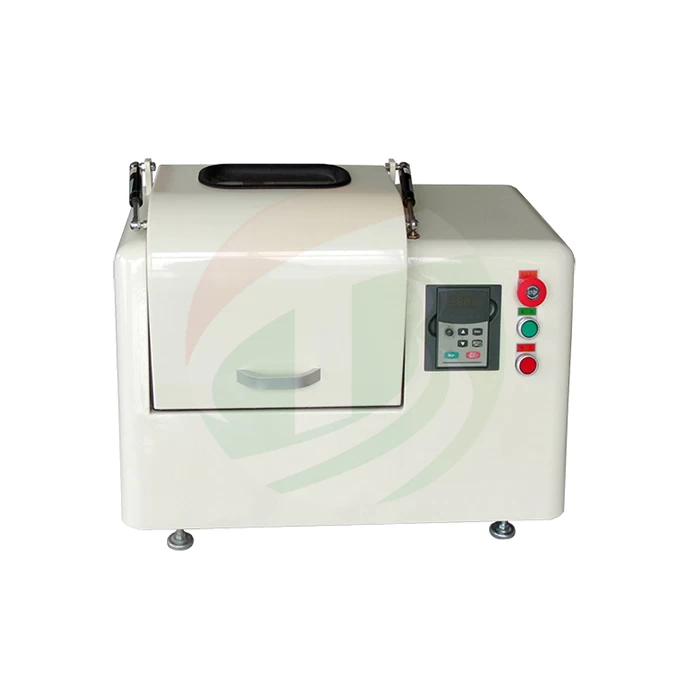

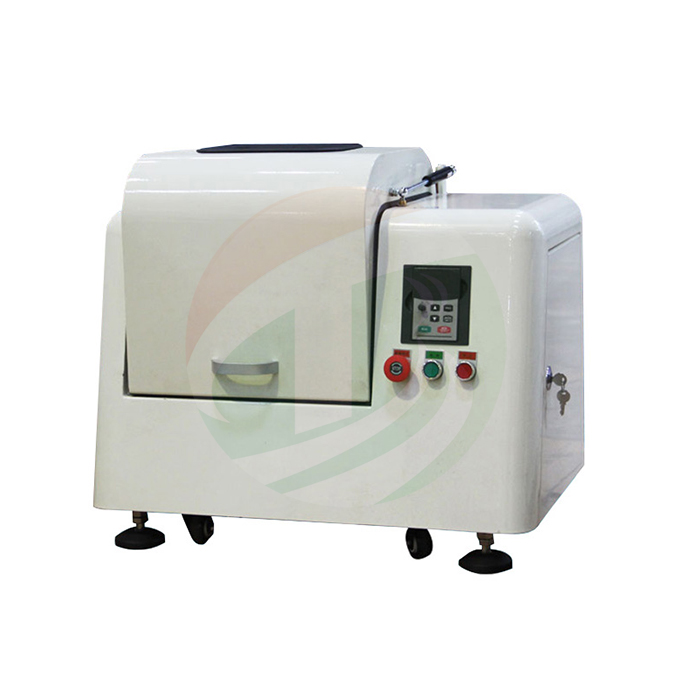

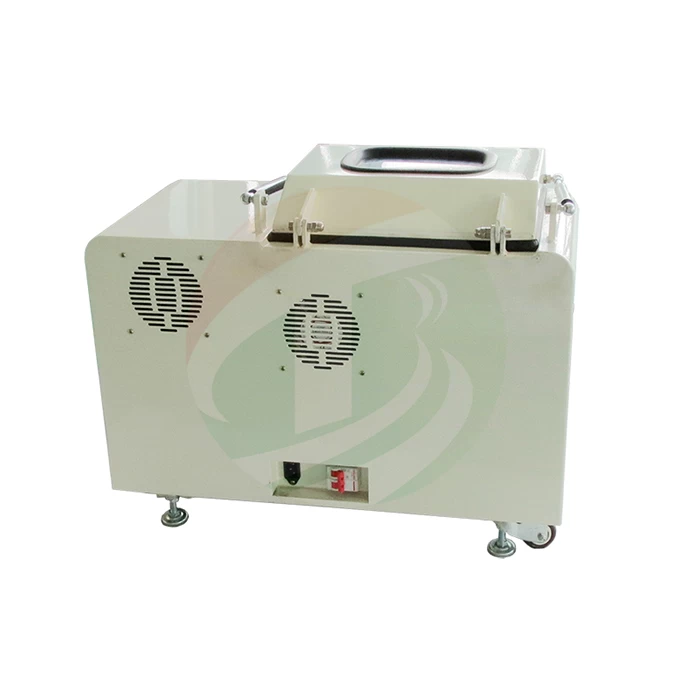

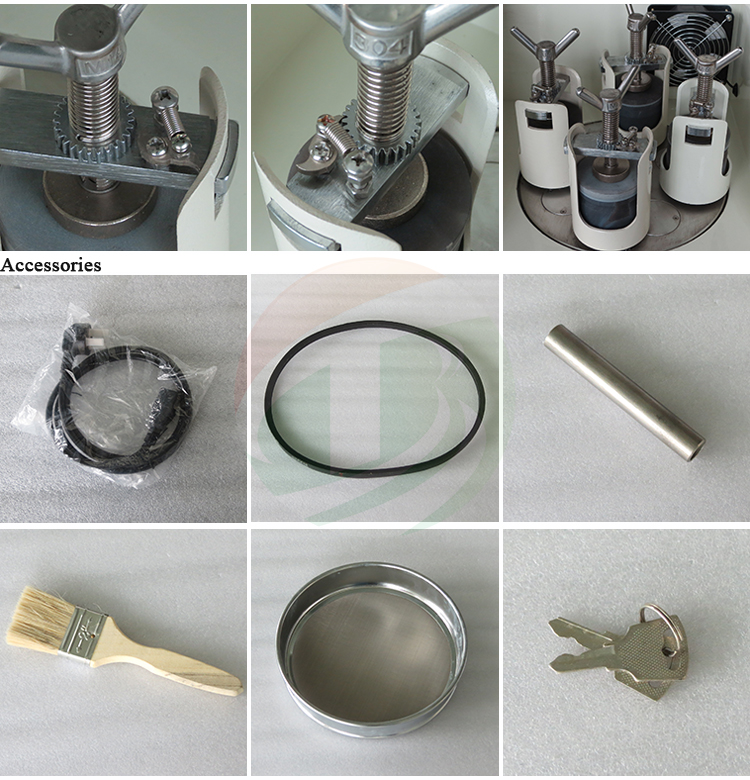

PRODUCT DISPLAY

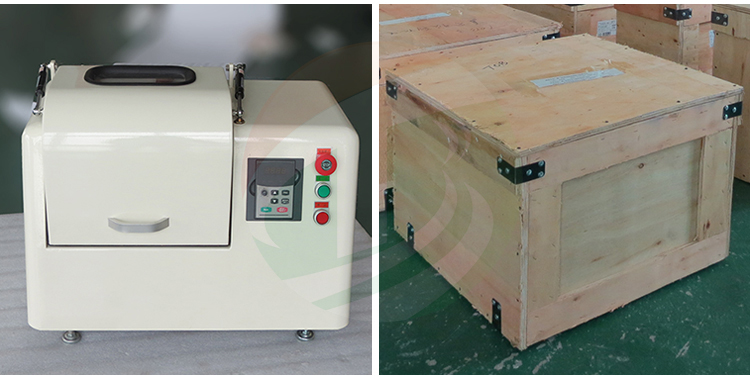

PACKING
