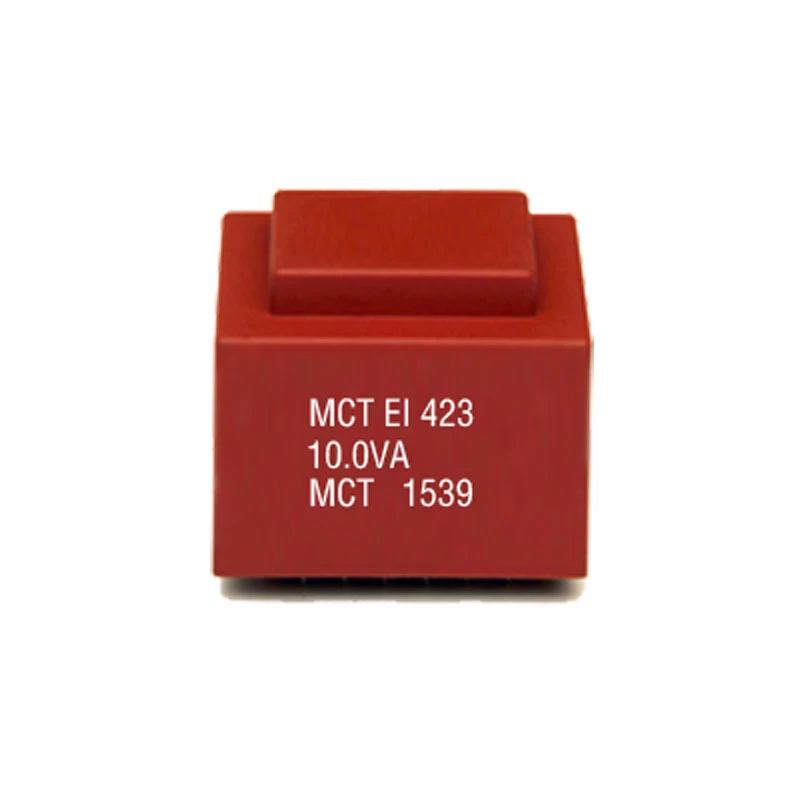

10.0 VA EI42 Encapsulated Switching Power Transformer for Power Supply

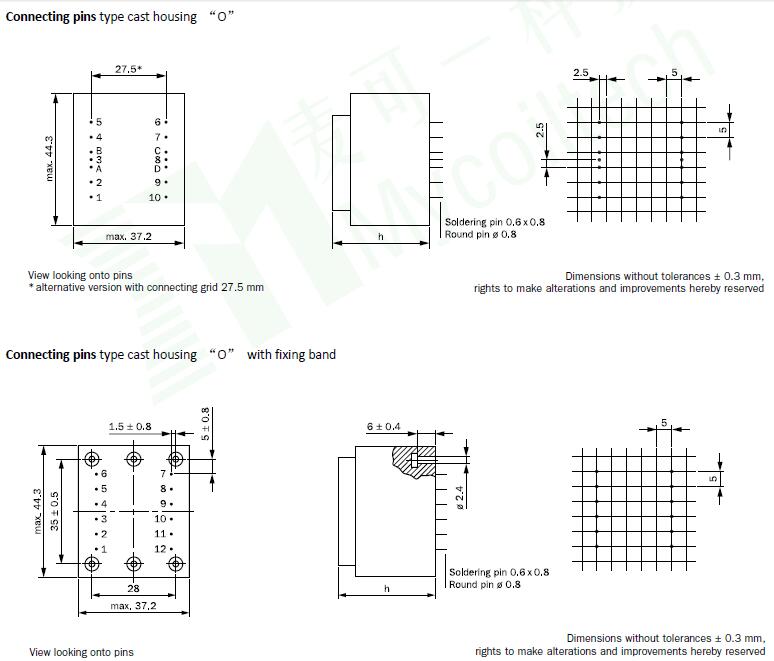

PCB mouting EI42 electrical encapsulated transformer with output power:3.0VA to 10.0VA. Non short-circuit-proof at temperature class ta 70 °C/B. Standard type cast housing“O”. Excellent temperature fluctuation resistance properties. Moisture-proof. Temperature class: Class B (130℃)



Customized designs power EI electronic encapsulated transformer from MCT, with RoHS Certification. Our Factory is made up of 500 people, huge output can be finished every day. Customized specifications and OEM service are accepted.



Quick Details

Part No: EI42 3.0VA-10.0VA

Brand name: MCT

Output Power up to 10.0 VA

Custom made: Available

Temperature class ta70 °C/B

Logo: Can be customized

High voltage resistance

Packing: Carton, can custom

Bobbin: Dual chamber windings

MOQ: Any quantity

Certification: ISO9001,ROHS,CE

OEM: Available

Lead time: 25 days after payment

Shipping: Air, Ship, etc



Part Information

Product Name: 10.0 VA EI42 Encapsulated Switching Power Transformer for Power Supply

Product Range: Transformers, Inductors, Choke coils, Transformer bobbins, Magnetic cores.

Applications: Household appliances, printed circuit boards, low power industrial control products, meters and other industries.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.



Product Specification

EI Low Frequency Power Transformer for Measuring Instruments


Product Part Number

Frame size/Core height

Output Power

Ta 70°C/B

Height(h)

Weight

Packaging unit

MCT EI 421/8.5 mm

3.0V/A

26.2mm

0.120kg

40 /50pieces**

MCT EI 422/14.8mm

6.0 V/A

32.3mm

0.200kg

40/50 pieces**

MCT EI 423/20.0mm*

10.0 V/A

38.0mm

0.250kg

50 pieces


If you have any request, please contact us, we will give you fast reply.
