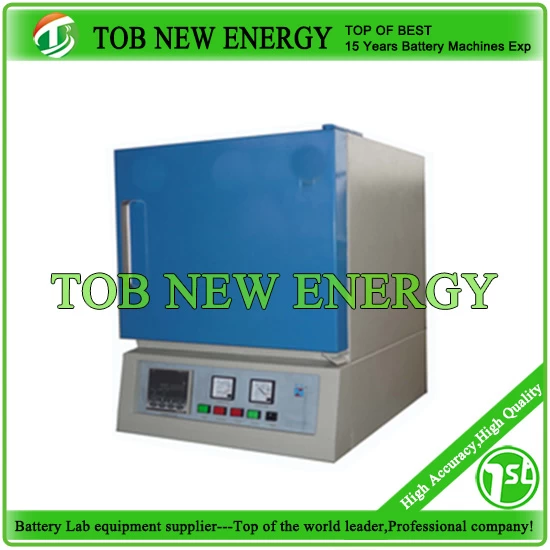

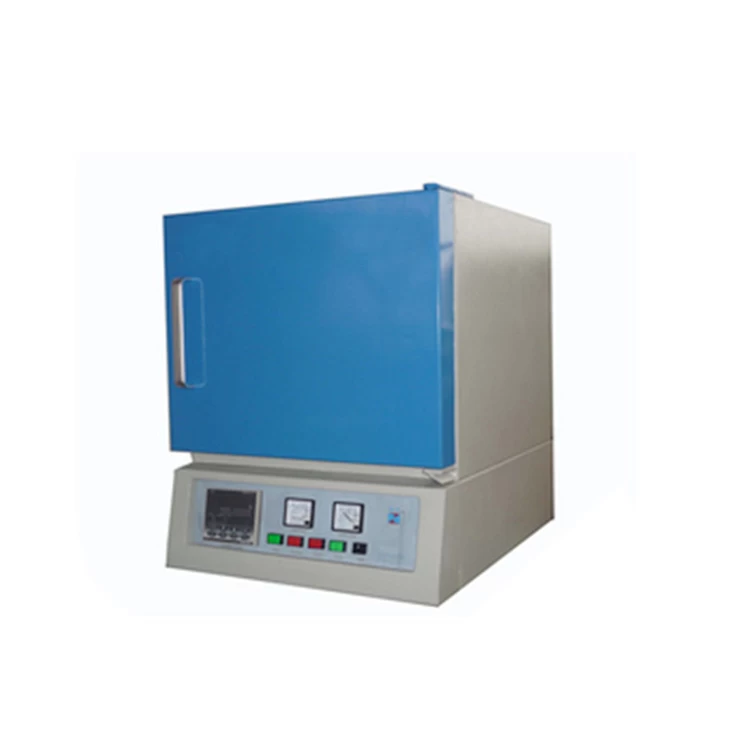

1100°C Mini Muffle Furnace with Programmable Controller For Powder Sintering
SPECIFICATIONS
The TOB-KBF1100 Modelmini muffle furnaceadoptselectric Resistance wireas heating element, using double shell structure and 40 program temperature control system, electric phase-shifting trigger, thyristor control, furnace chamber using polycrystal alumina fiber material, double layer between the furnace shell is equipped with air cooling system, to rise and down temperature quickly. (Up to 1000℃ within 20mins)
Thismini lab muffle furnaceshas balanced Temperature field, low surface temperature, elevating temperature rate quickly, and energy saving advantages, It is the ideal laboratory equipment for universities, research institutes, industrial and mining enterprises to do powder such as battery materials LiFePO3, LiMnNiO3 sintering, Metal annealing, high temperature experiment and quality inspection.
|
Model
|
Dimension (D*W*H)
|
Power
|
Voltage
|
Max temperature
|
|
TOB-KBF1100-I
|
300*200*120mm
|
2.5kw
|
AC110V/220V
|
1100℃
|
|
TOB-KBF1100-II
|
300*200*200mm
|
3.5kw
|
|
TOB-KBF1100-III
|
300*250*250mm
|
6kw
|
|
TOB-KBF1100-IV
|
400*300*300mm
|
10kw
|
380V
|
|
Heating element
|
Electric Resistance wire
|
|
Temperature controller
|
40 program temperature control system,
With over temperature, broken accidentally protection function,
6 groups of PID adjustment
Control precision of + / - 1 ℃
|
|
furnace chamber
|
Polycrystal alumina fiber
|
|
Warranty
|
One year limited warranty with lifetime support
|
