10mm Thickness Sphere Open Cell Aluminum Foam

Sphere open cell aluminum foam is with the characteristics of both of open cell and closing cell aluminum foam.



High quality Sound-absorbing and Impact Resistant Material Sphere Open Cell Aluminum Foam


SPECIFICATIONS

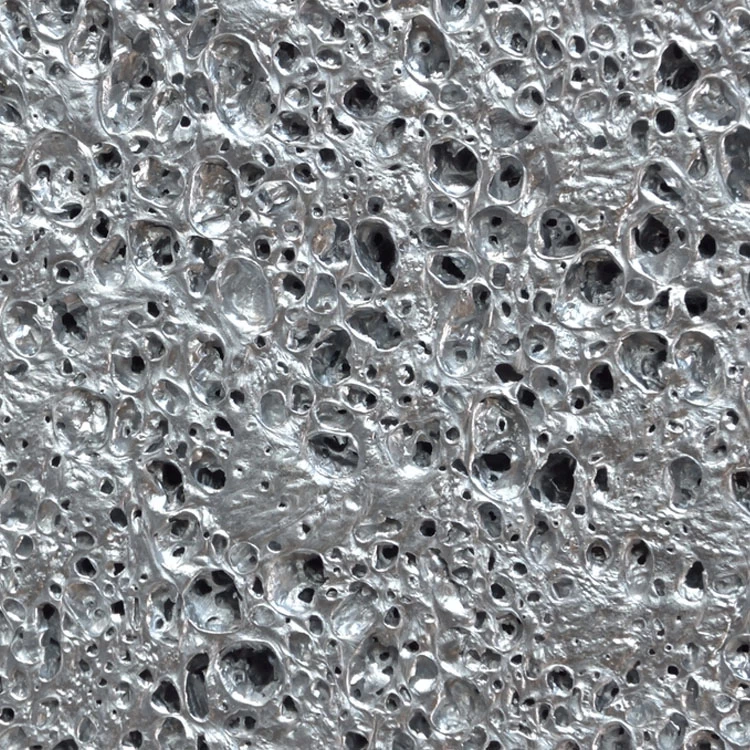

Sphere open cell aluminum foamis with the characteristics of both of open cell and closing cell aluminum foam, Hole shape is circular, aperture relative rules, hole wall open a small round hole connected to the ball, to six directions, avoid the straight hole, is advantageous to the amount of sound absorption, sound filter and attenuation.


In actually use, can get the ideal effect of noise reduction through design to the sphere size (diameter of 2-11 mm), wall hole size (0.5 2 mm in diameter) and thickness and making process control.


Sphere open cell aluminum foamfor the current domestic aluminum foam sound-absorbing material at the top of the product, suitable for all kinds of vehicle body and mechanical equipment deadened the noise reduction;

Due to the sphere uniform distribution, pore shape, the same rules of hole wall, also longer than absorb energy, has excellent impact resistance.

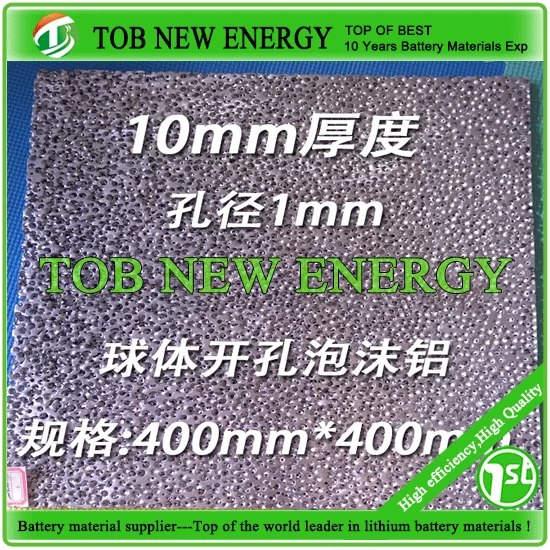

Model : TOB-AlF-010-Sphere

Material : Aluminum Foam, Purity> 98%, Sold in sheet.

Dimension : 400*400*10mm, or customized as request

Thickness : 10mm

The aperture : 1 mm

Porosity : 50%-80%

Through Hole Rate : ≥98%


PACKAGE AND SHIPPING

1 Standard exported package : Internal bottle sealing, outside the aluminum-plastic composite membrane sealing

2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
