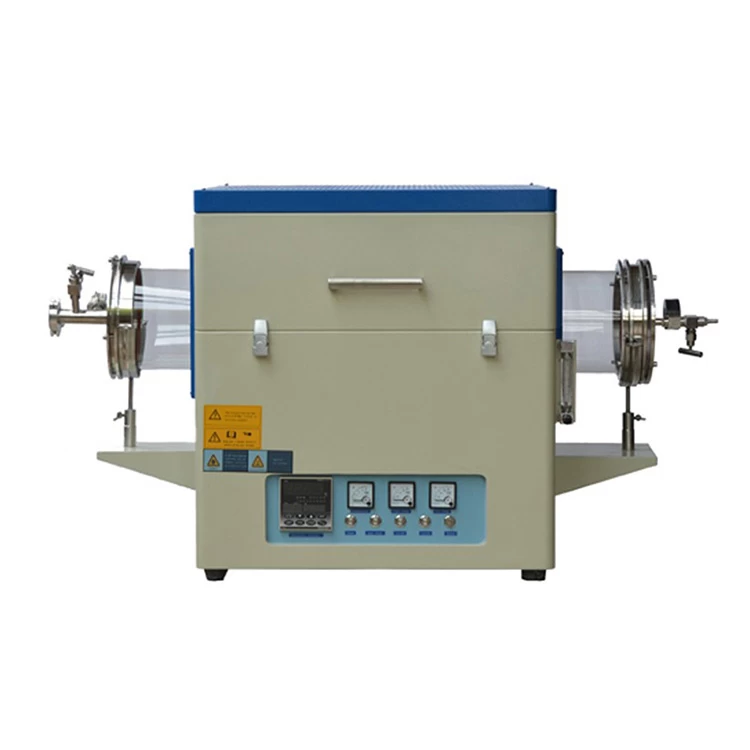

1200℃ vacuum furnace
SPECIFICATIONS

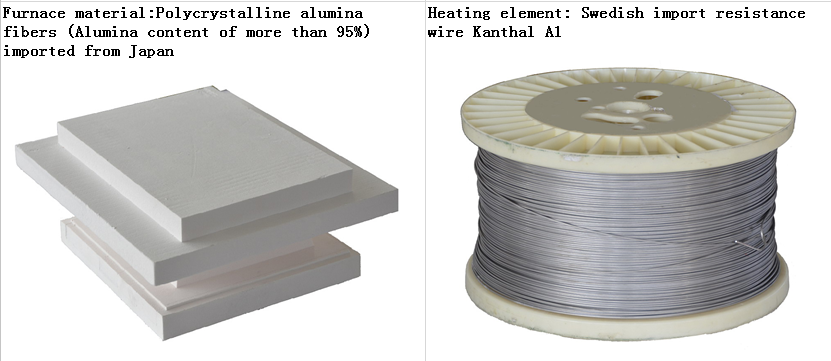

The tube furnace with resistance wire (Sweden Canthal A1) for the heating element
using double-shell structure and 30 program temperature control system, phase trigger, SCR control,
furnace polycrystalline alumina fiber material, having temperature field balance, the surface temperature is low,
lifting the temperature fast rate, energy-saving advantages.
Colleges and universities, research institutes, industrial and mining enterprises to do high-temperature sintering atmosphere, reducing atmosphere, CVD experiment, vacuum annealing with the ideal product.
|
Model
|
TOB-DSP-
1200℃-I
|
TOB-DSP-
1200℃-II
|
TOB-DSP-
1200℃-III
|
TOB-DSP-
1200℃-IV
|
TOB-DSP-
1200℃-V
|
TOB-DSP-
1200℃-VI
|
|
Power
|
2.5 KW
|
3.5KW
|
3.5KW
|
4KW
|
5kw
|
6kw
|
|
Furnace tube
size(mm)
|
Dia 60(OD)
X1000
|
Dia80(OD)
X1000
|
Dia100(OD)
X1000
|
Dia120（OD)
X1000
|
Dia150(OD)
X1000
|
Dia200(OD)
X1000
|
|
Dimension
|
580X370
X515
|
580X420
X565
|
580X420
X565
|
600X440
X585
|
610X490
X630
|
650X540
X680
|
|
Power supply
voltage
|
220V
|
|
Phase number
|
Single-phase
|
|
Temperature
control mode
|
Yudian temperature control
30 sections can only use PID temperature regulation.
FP93 temperature control (from Japan)
(Replace imported instruments, for an additional fee)
1,40 section program temperature control can be divided into 4,2,1 group program,
if the program is divided into four groups, each program segment 10,
2,6 group PID control, low, medium and high temperature can each with a set of PID,
such that each segment is capable of controlling the temperature is very accurate.
|
|
Control accuracy
|
+/- 1 ℃
|
|
Trigger
|
Phase-shift trigger
|
|
SCR
|
106 / 16E Germany Simon Kang
|
|
Max
temperature
|
1200 ℃
|
|
Rated temperature
|
1100 ℃
|
|
Heating rate
|
≤30 ℃/ Min (Available upon request modification)
|
|
Heating length
|
400mm
|
|
Thermocouple
Type
|
K type
|
|
Recommended
heating rate
|
≤15 ℃/ Min
|
|
Vacuum degree
|
1.General vacuum and drive gas out by:TW-1.5A
2.2XZ-2 Vacuum degree pumps can be able to get around 10Pa
3.TOB-DSP-VS 0.1vacuum system can pumped 0.1Pa
(and equipped with a resistive vacuum gauge display)
4.TOB-DSP-VS high vacuum system
(which is composed of molecules and mechanical pump)
enables vacuum degree pumped 10-3 Pa.
|
|
Certification
|
ce
|
|
Surrounding
surface temperature
|
≤45℃
|
|
Security System
|
With the furnace air switch and fuse,
when the current exceeds the rated current,
it will automatically jump open, effective protection electric stove.
|
|
Switch
protection system
|
The furnace trip switch is installed,
when the lid open relay will automatically cut off the main power supply,
effectively ensure the safety of users.
|
