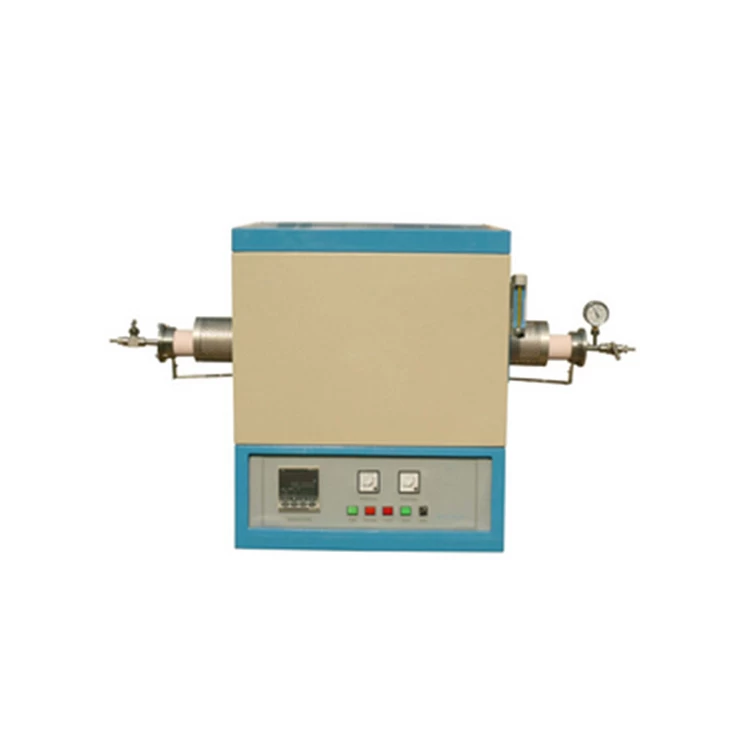

1400℃ Horizontal Tube Furnace

The TOB-KTL1400 Modeltube furnaceis ahorizontal tube furnaceadopts Silicon carbide as heating element. 40 segments programmable temperature controllers are installed with 6 groups of PID adjustment.



1400°C Single Zone Horizontal Tube Furnace with Vacuum Flanges For Nano Materials Research

SPECIFICATIONS



1 The TOB-KTL1400 Modeltube furnaceis ahorizontal tube furnaceadopts Silicon carbide as heating element. 40 segments programmable temperature controllers are installed with 6 groups of PID adjustment.

2 It is the ideal laboratory equipment for universities, research institutes, industrial and mining enterprises to do High temperature atmosphere sintering, Atmosphere reduction, CVD experimental, vacuum annealing such as for preparing nano materials and film.

Model

Tube Size

Power

Dimension

(L*W*H)

Voltage

Heating Zone

Length

Max Heating

Temperature

TOB-KTL1400-I

Φ40×800mm

2.5kw

400×260×525

AC110V/220V

200mm

1400℃

TOB-KTL1400-II

Φ60×1000mm

4kw

650×450×670

260mm

TOB-KTL1400-III

Φ80×1000mm

4kw

650×450×670

TOB-KTL1400-IV

Φ100×1000mm

6kw

650×500×700

Heating element

Silicon carbide

Temperature controller

40 program temperature control system,

With over temperature, broken accidentally protection function,

6 groups of PID adjustment

Control precision of + / - 1 ℃

Furnace chamber

1600 type Polycrystal alumina fiber

Tube material

99 alumina tube

Vacuum Flange &

Fitting Ports

Stainless steel flange with Gas nozzle, valve, pressure gauge

Pressure measure

system

Pressure gauge (Resistance vacuum gauge can be chosen according requirements)

Air intake control

Flow meter (Protons flow controller can be chosen according requirements )

Vacuum system

Vacuum pump can be chosen

Warranty

One year limited warranty with lifetime support
