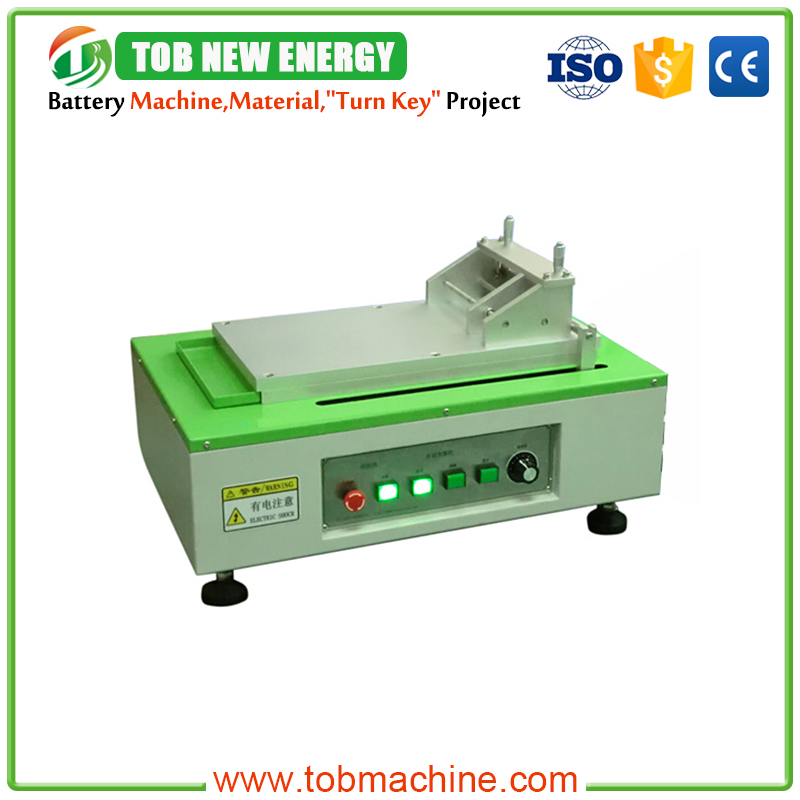

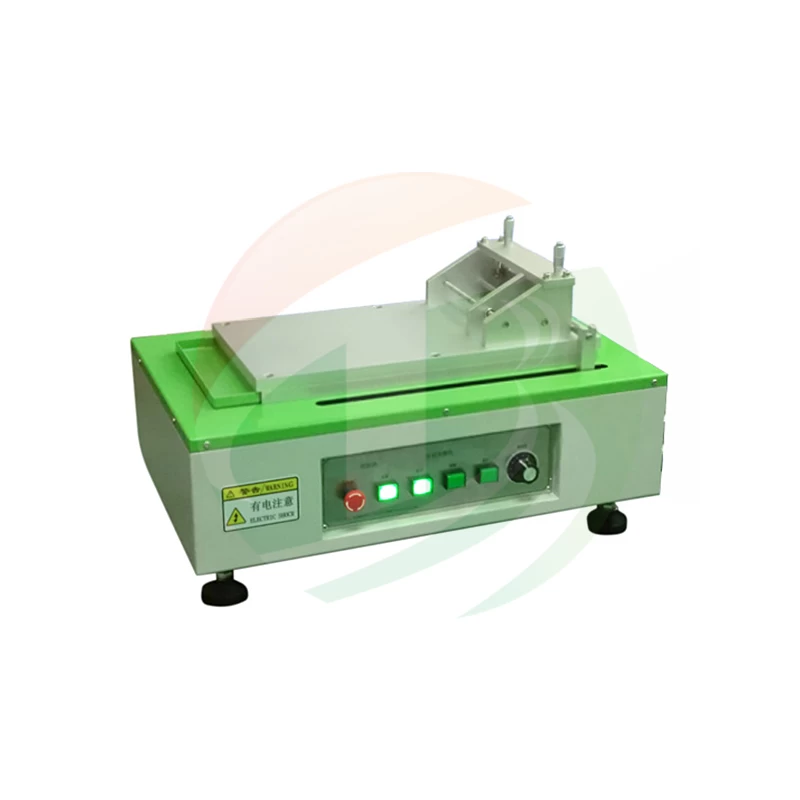

Automatic Film Coater with Vacuum Chuck and Adjustable Doctor Blade For Battery Electrode Coating
SPECIFICATIONS
TOB-TM300 is aAutomatic Film Coaterwith Vacuum aluminum plate designed to produce films with consistent thickness by using micrometer adjustable applicators or fixed thickness applicators. It has an unique driving system to produce smooth coating on all types of materials. The flat vacuum chuck is built in to hold substrate sheet in place, which is particularly useful when coating on thin substrate and making uniform tape casting. One micrometer adjustable applicator is included for immediate use. This machine can be used for research on ceramic tape casting. crystal film, special nanometer film andLi-Ion battery electrode coating.
This model is without heating function, Heating lid is available at extra cost for drying . please select modeTOB-VFC-150 if we need hot function.
|
Model
|
Film Coater Machine TOB-TM300
|
|
Working Voltage
|
110V AC or 208 - 240V AC 50/60Hz Single Phase
|
|
Power
|
200W
|
|
Traverse Speed
|
0 - 100 mm/sec variable
Accuracy: 10mm/sec
|
|
Max Stroke
|
300 mm
|
|
Max. Coating Dimensions
|
150mm(W) * 300mm(L)
|
|
Platform
|
Aluminum alloy flat vacuum chuck
Vacuum Chuck Dimensions: 410mm(L) *200mm(W) *30mm(H)
|
|
Film Applicator
|

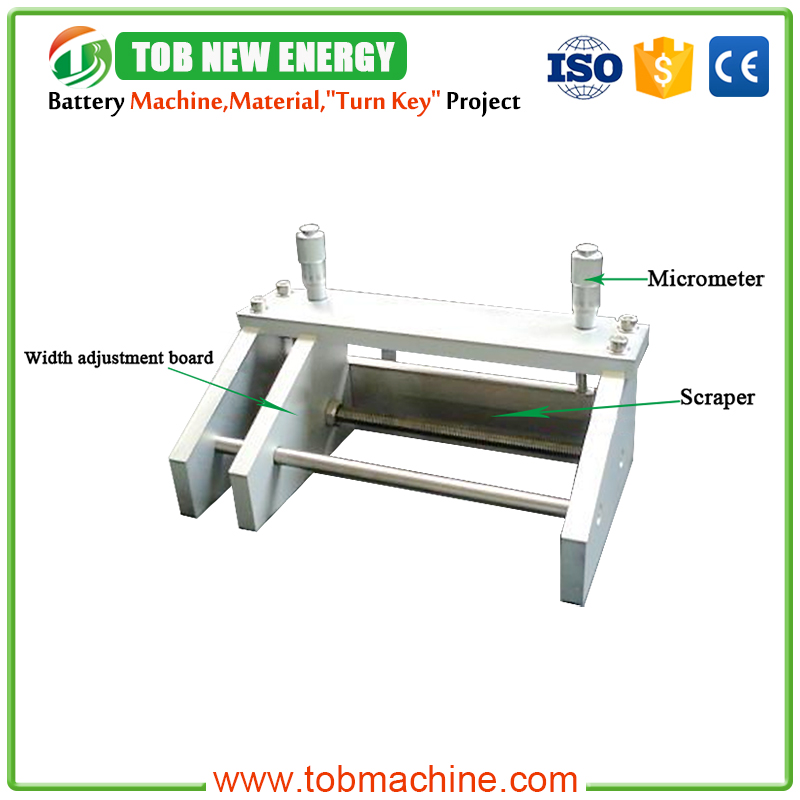

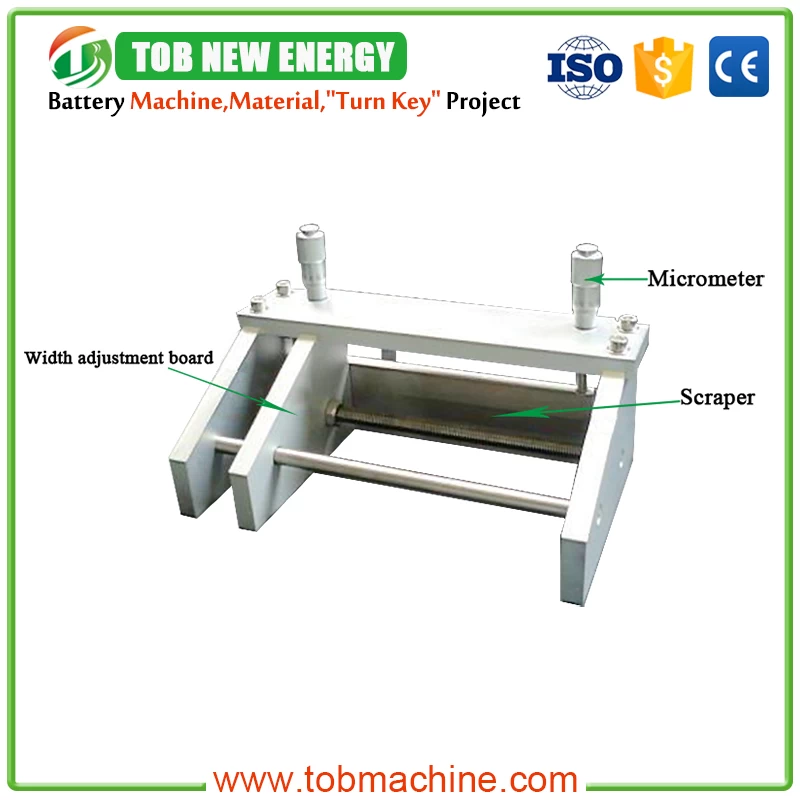

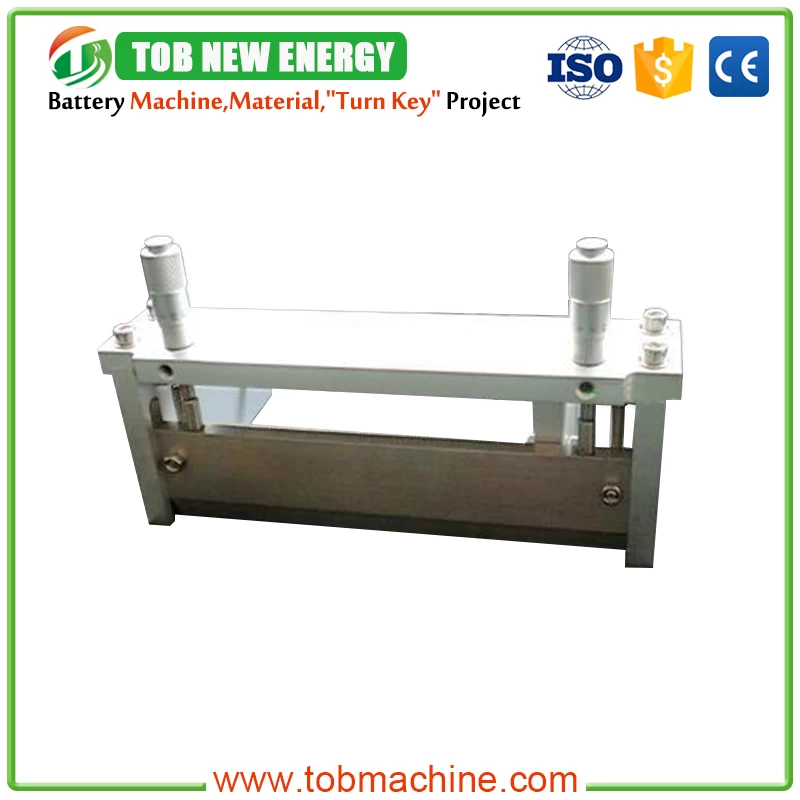

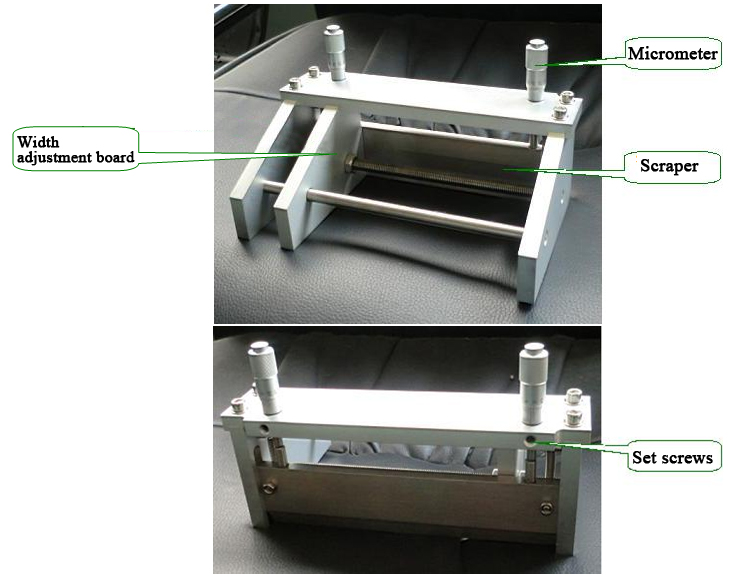

One 150 mm width Micrometer Adjustable Film Applicator is included,
with adjustable thickness from 0.01 mm - 3.5 mm
Traverse Pusher is included for pushing the doctor blade to ensure constant speed coating
|
|
Product Dimensions
|
550mm(L) *310mm(W) * 330mm(H)
|
|
Net Weight
|
50kg
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Application Notes
|
Rolling is absolutely necessary to ensure good density and adhesion of electrode materials to
the current collector substrate after coating. Please select a rolling press from here.
You may need a vacuum oven to dry the films after coating
You may need a vacuum mixer to remove air bubbles inside the slurry and to make
all coatings uniform
You may need a Slurry Viscosity Tester to make coatings consistent
|
