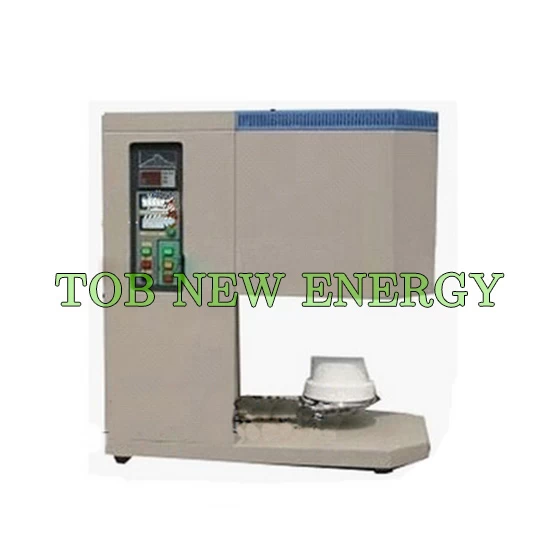

High Temperature 1700℃ Crucible Furnace For Powder Sintering
SPECIFICATIONS
Thiscrucible furnaceadopts silicon molybdenum rods as heating element, using 708P type intelligent temperature control instrument and B double platinum rhodium thermocouple together to adjust the internal temperature of the furnace temperature measurement, automatic control. Thiscrucible furnacehas maximum temperature of 1700 ℃ For high temperature sintering.
|
Model
|
1700℃ Crucible Furnace TOB-LCF-1700C
|
|
Heating mode
|
Silicon molybdenum bar heating
|
|
Furnace effective size
|
Φ200*180mm
|
|
Working temperature
|
≤1700℃
|
|
Max temperature
|
1700℃
|
|
Temperature rising speed
|
10℃/min
|
|
Temperature accuracy
|
±1℃
|
|
Source voltage
|
AC110V/220V 50/60HZ
|
|
Heating power
|
6.5kw
|
|
General dimension
|
480*500*950mm
|
|
Weight
|
110kg
|
|
Structure
|
51 steps programmable intelligent control
Fiber inner materials for temperature up to 1700℃
Lift model at bottom, simple for operation
|
|
Standard configure
|
1pcs crucible tongs, 1pair High temperature gloves,
2pcs heating elements, 1pcs thermocouple.
|
|
Warranty
|
One year limited warranty with lifetime support
|
