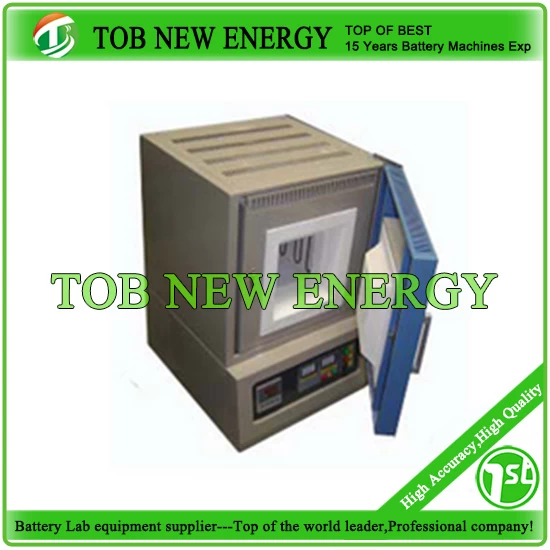

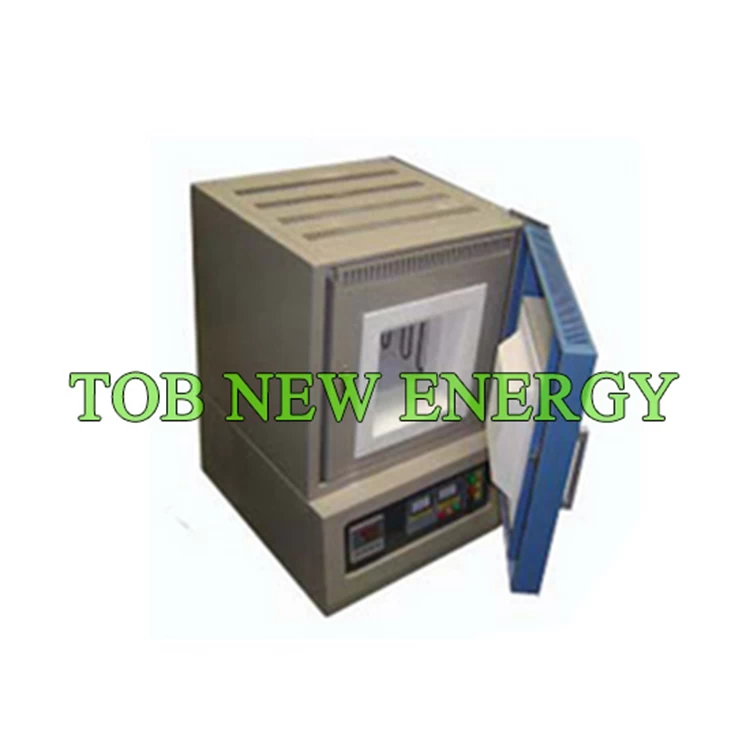

1700 Degree Muffle Furnace With Silicon Molybdenum Rods Heating
SPECIFICATIONS
The TOB-KBF1700Degree Muffle Furnaceadopts 1800 type Silicon molybdenum rods as heating element, using double shell structure and 40 program temperature control system, electric phase-shifting trigger, thyristor control, furnace chamber using polycrystal alumina fiber material, double layer between the furnace shell is equipped with air cooling system, to rise and down temperature quickly.
This 1700 Degree Muffle Furnacehas balanced Temperature field, low surface temperature, elevating temperature rate quickly, and energy saving advantages, It is the ideal laboratory equipment for universities, research institutes, industrial and mining enterprises to do powder such as battery materials LiFePO3, LiMnNiO3 sintering, Ceramic sintering, high temperature experiment and quality inspection.
|
Model
|
Dimension (D*W*H)
|
Power
|
Voltage
|
Max temperature
|
|
TOB-KBF1700-I
|
160*150*150mm
|
5kw
|
AC110V/220V
|
1700℃
|
|
TOB-KBF1700-II
|
400*200*200mm
|
12kw
|
|
Heating element
|
1800 type Silicon molybdenum rods
|
|
Temperature controller
|
40 program temperature control system,
With over temperature, broken accidentally protection function,
6 groups of PID adjustment
Control precision of + / - 1 ℃
|
|
Furnace chamber
|
1800 type Polycrystal alumina fiber
|
|
Warranty
|
One year limited warranty with lifetime support
|
