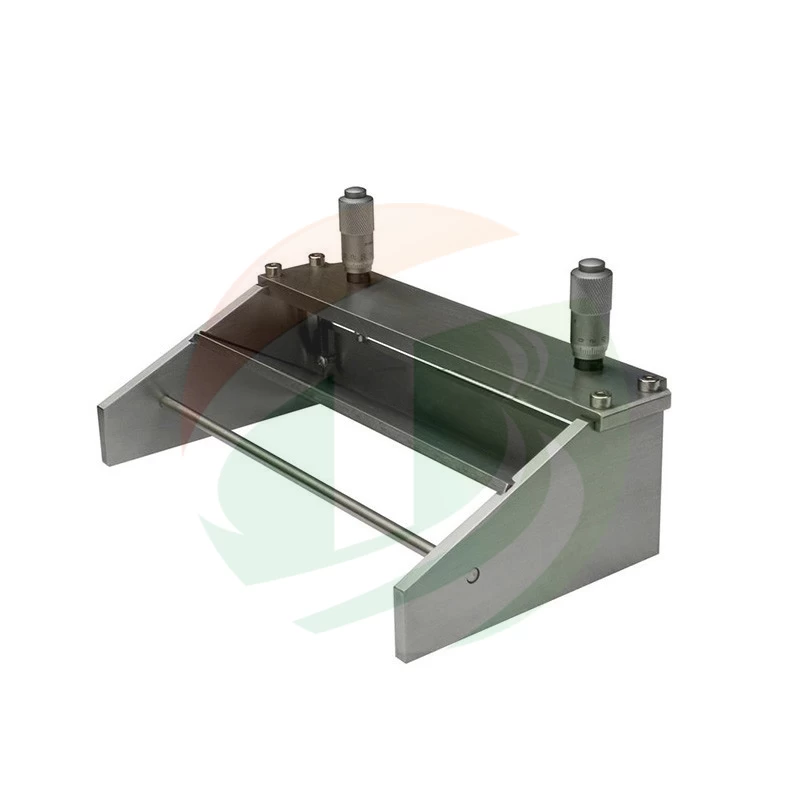

180mm Width Film Applicator With Slurry Guiding Plate

The operator sets the blade clearance by adjusting the micrometers. This is excellent tool to make quality film for material research laboratories to make ceramic tape casting, battery electrodes, and various coating at lower cost. Stainless steel knife blade with precision ground edge.



Micrometer Adjustable Film Applicator - 180 mm Width For Li ion Battery Electrode Coating


SPECIFICATIONS



Adjustable Film Applicator - This unique wet film applicator features micrometer heads for knife blade adjustment.

The operator sets the blade clearance by adjusting the micrometers. This is excellent tool to make quality film for material research laboratories to make ceramic tape casting, battery electrodes, and various coating at lower cost. Stainless steel knife blade with precision ground edge.

Features

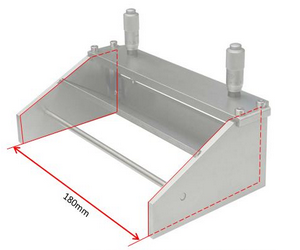

180 mm standard width.

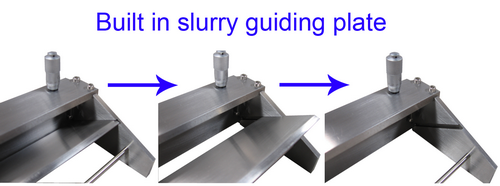

Built in slurry guiding plate to make film coating at easy.

Make wet film thickness between 0 - 5000 microns.

Micrometer head's controllable accuracy is 10 microns.

Slurry Capacity: 72 ml.

PRODUCT DISPLAY



 Electrode Film Applicator  Lab Film Applicator

180 mm Width Coating Machine
