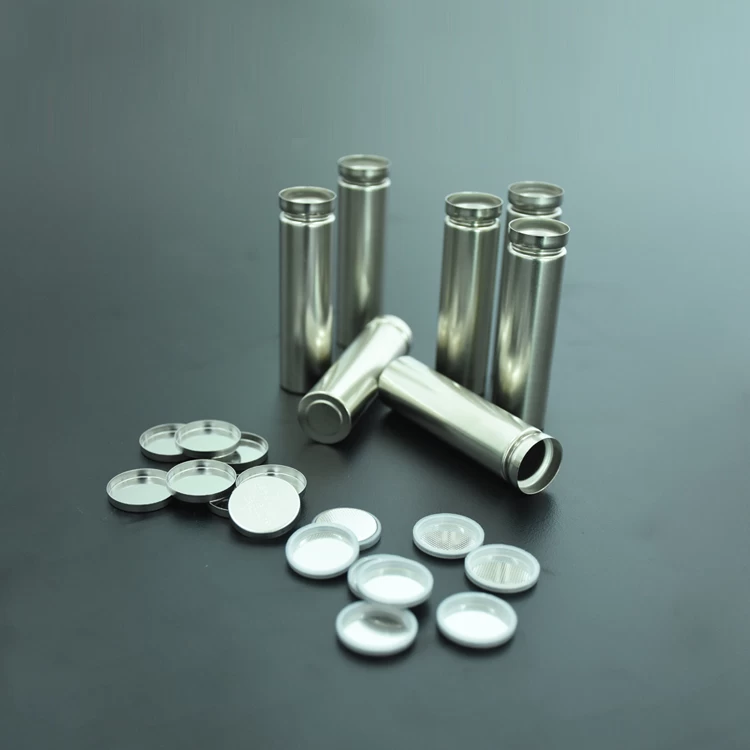

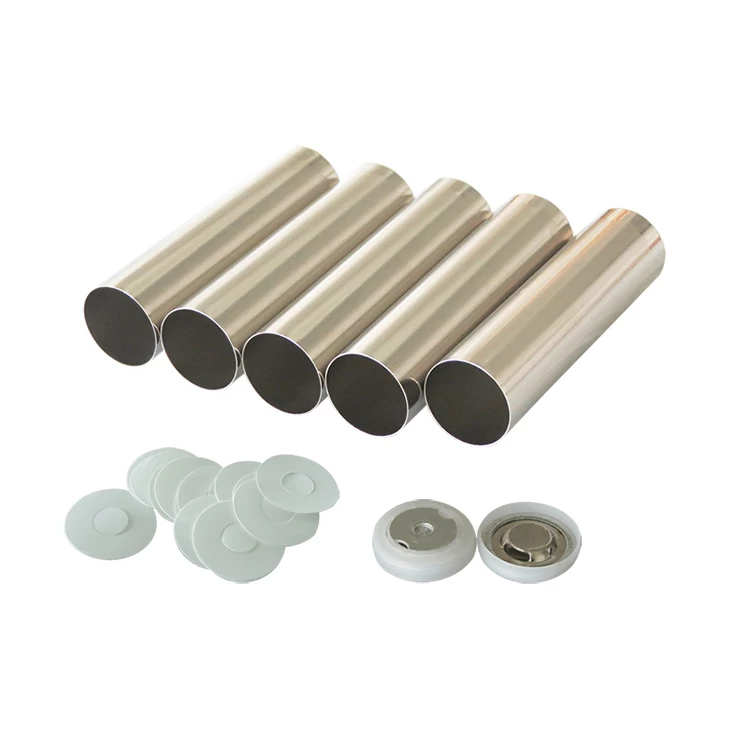

26650 Cylinder Cell Case with Anti-Explosive Cap and Insulation O-ring
SPECIFICATIONS
50pcs/bag
Mode:T-1865
|
26650 Battery Case Dimensions
|
26mm(D) x 0.25mm(T) x 67mm(H)
|
|
Top Cap
|
· Dimensions: 17.5m(D) x 4.05mm(H)
Safety valve's open pressure: 2.5MPa
(the cap valve will open to release
interior high pressure if over
2.5MPa to ensure no explosion from the can)
|
|
Top Insulator
|
Dimensions: 16.1mm(D) x 2.6m(T)
|
|
Tther
|
aluminum spacers+sealing O-rings
|
|
|
|
PACKAGE AND SHIPPING
|
1 Standard exported package : Internal plastic bottle sealing, outside the aluminum-plastic composite membrane sealing
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
|
SERVICES
|
1 We supply machines with battery technology support.
2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.
3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.
4 We can also supply a full set of battery technology for battery design, research and producing.
|
