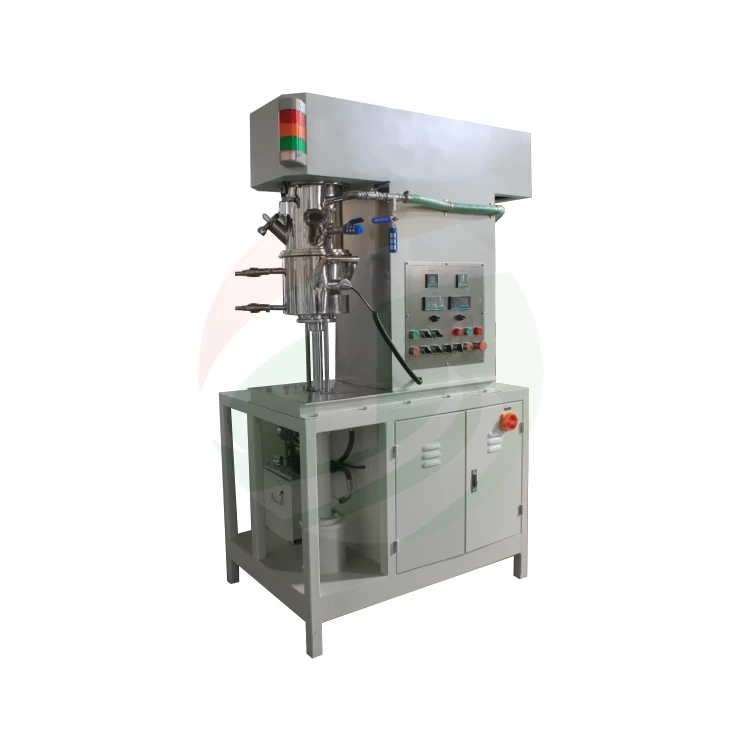

Model

TOB-XFZH02

Lower Barrel Parts

Design total volume

3.8L

Effective volume

1.2L-2L

Container inner diameter

180mm

Container inside depth

150mm

Container material

Contact with material 304

Tempering jacket form

Single-layer jacket for barrel wall for cooling or heating; single-layer jacket at the bottom of the barrel for cooling or heating

Tempering jacket port

G3/8", with quick-open type union, jacket pressure resistance ≤0.4MPa

Tempering jacket circulation system

prepared by customer,

jacket inlet temperature ≤ 8 ° C, cooling water flow > 1.5 L / min

Discharge materials form

No discharge valve at the bottom of the barrel

Design environment temperature

-10~+120°C

Move mode

no

Mixing Parts

Working frequency

5-50hz

Mixing power

0.75kw

Mixing blade speed

8-76rpm

Planetary box rotate speed

5-52rpm

Mixing blade diameter

94mm

Mixing blade model

Variable section helical twist type, 90° spiral

Mixing blade material

304 stainless steel

Mixing blade line speed

0.03-0.37m/s

Mixing blade number

2pcs

paddle distance

6±1mm

Paddle and barrel wall distance

3+1mm

Paddle and bucket bottom distance

2-3mm

Dispersing Parts

Working frequency

5-50hz

Dispersing power

1.1kw

Dispersing rotate speed

450-4450rpm

Dispersing plate diameter

60mm

Dispersing model

Serrated

Dispersing plate material

304 stainless steel

Dispersing line speed

1.3-13m/s

Dispersing number

1pcs

Dispersing shaft number

1pcs
