350*200 Compact Vacuum Sealing Machine For Battery Pouch Pre-vacuum Sealing
TOB-YF350-S compactvacuum sealing machineis amanual pouch sealing machinemainly used for Heat sealing aluminum-laminated case in glove box after injection of electrolyte into pouch Li-ion cell or after formation for final seal (polymer Li-Ion cell). Heatable sealer blade is built into the chamber, automatically sealing the aluminum film pouch case for polymer battery.
It is with KF40 Connection port, which can connect in glove box directly.
SPECIFICATIONS
|
Model
|
Compact Vacuum Sealer TOB-YF350-S
|
|
Source voltage
|
AC 220V, 50HZ
|
|
Power
|
2000W
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Vacuum degree
|
More than -95Kpa
|
|
Sealing head TEM
|
RT-250℃, adjustable
|
|
TEM accuracy
|
±2℃
|
|
Sealing time
|
1-99s, adjustable
|
|
Sealing Blade
|
Hard type (without rubber, only for Al case sealing,
not suitable for sealing case with tab in between)
|
|
Sealing width
|
8mm (Customized)
|
|
Sealing head length
|
350mm
|
|
Suitable battery size
(Inner size)
|
350*200*15mm
|
|
Air source
|
0.5-0.7MPa
|
|
Package Size
|
120*60*55cm
|
|
Package weight
|
90kg
|

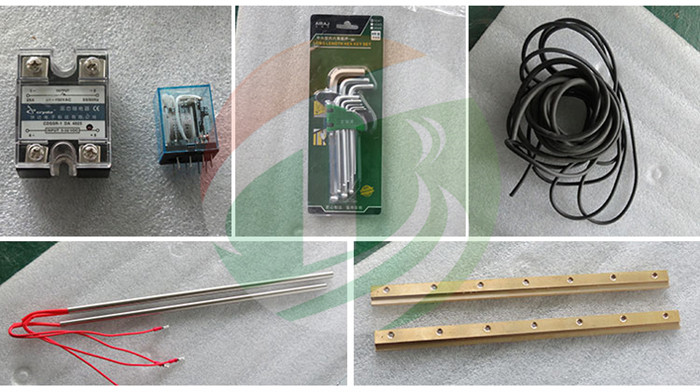

STANDARD PACKAGE LIST
|
Item
|
Qty
|
|
Compact Vacuum Sealer
|
1 set
|
|
Power line (according to your requirements )
|
1 pcs
|
|
Foot pedal
|
1 pcs
|
|
Socket head wrench
|
1 set
|
|
Relay
|
2 pcs
|
|
KF40 Connection port
|
1 pcs
|
|
Operating manual (English)
|
1 book
|

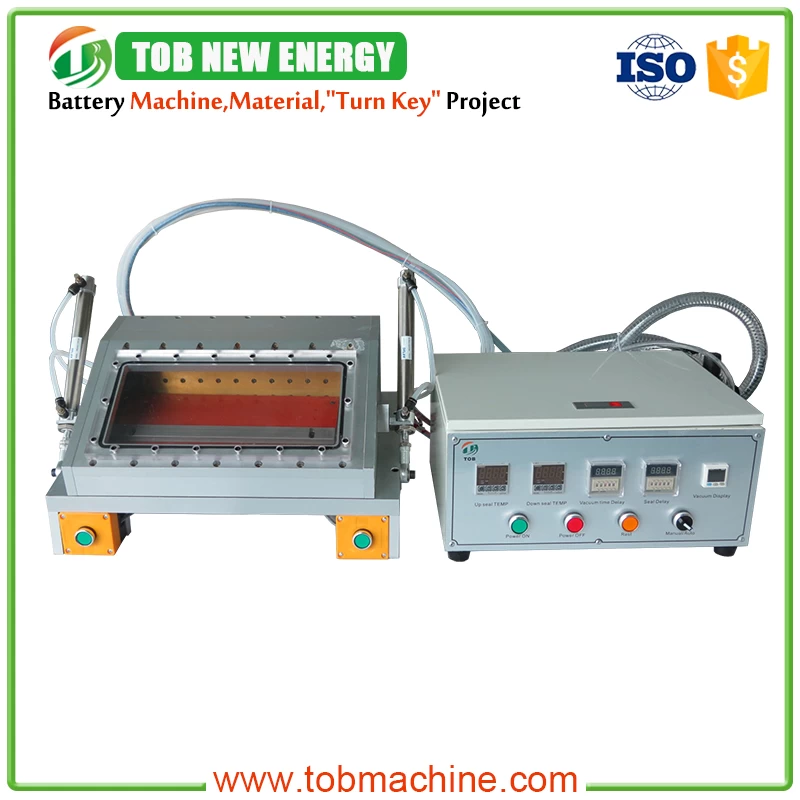

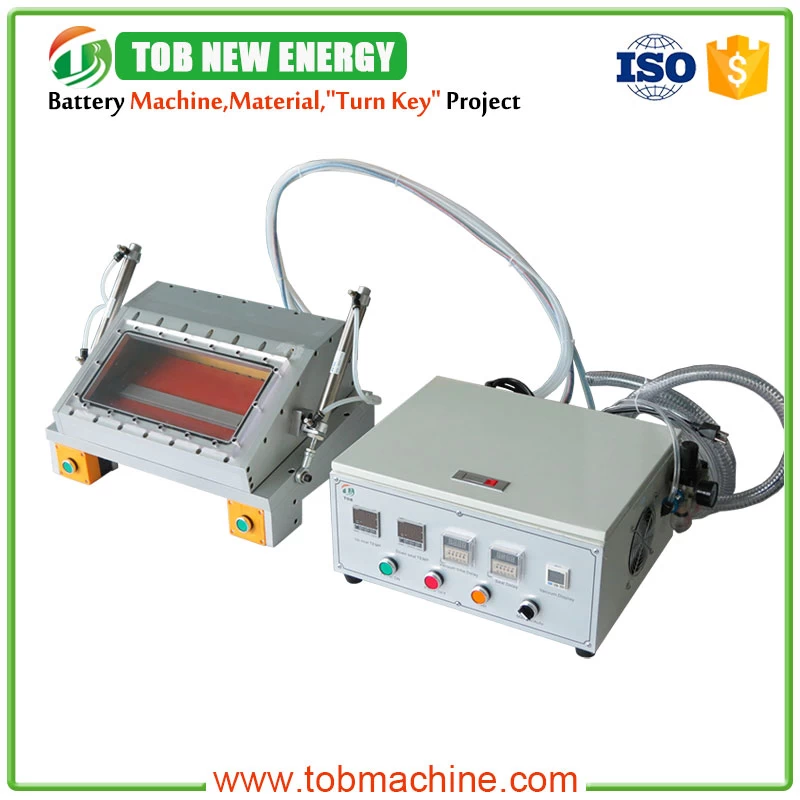

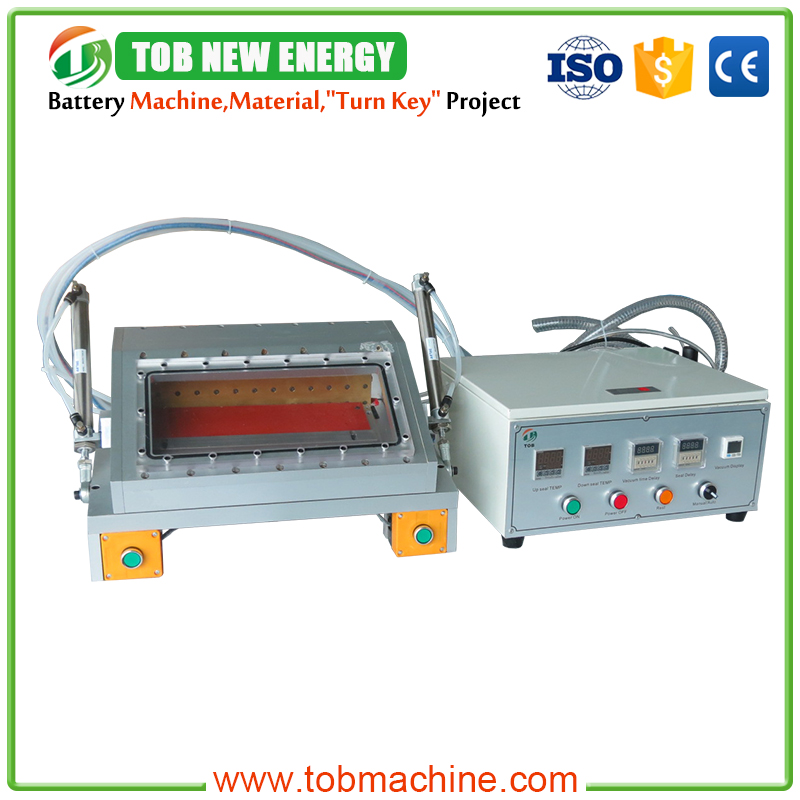

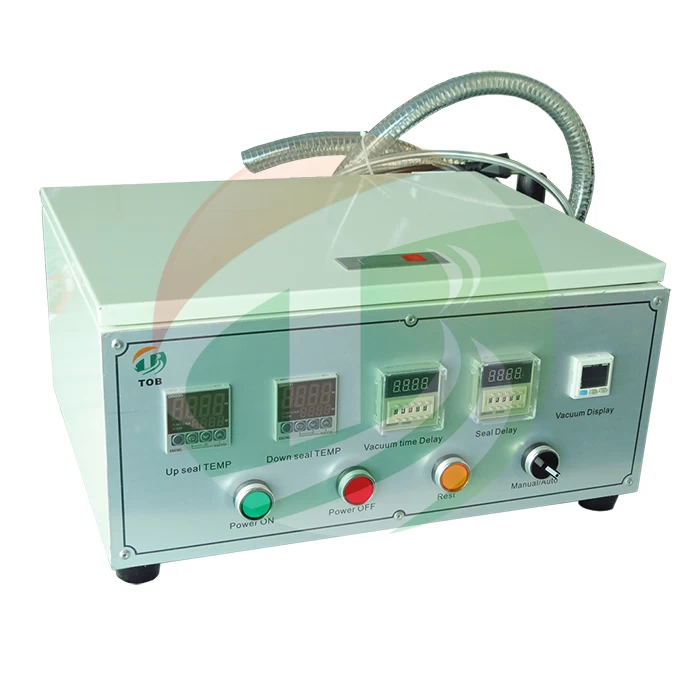

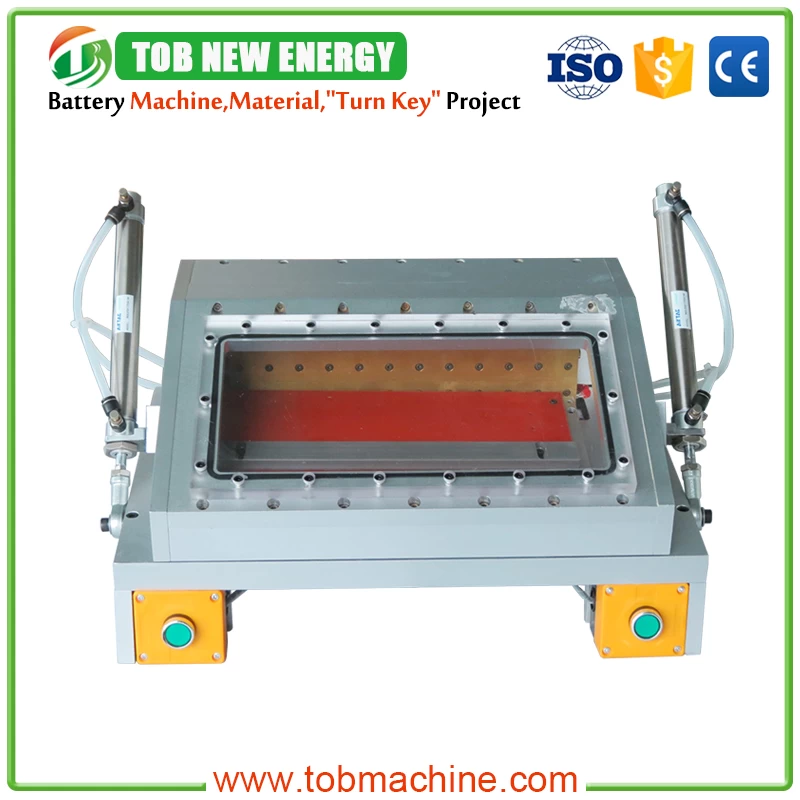

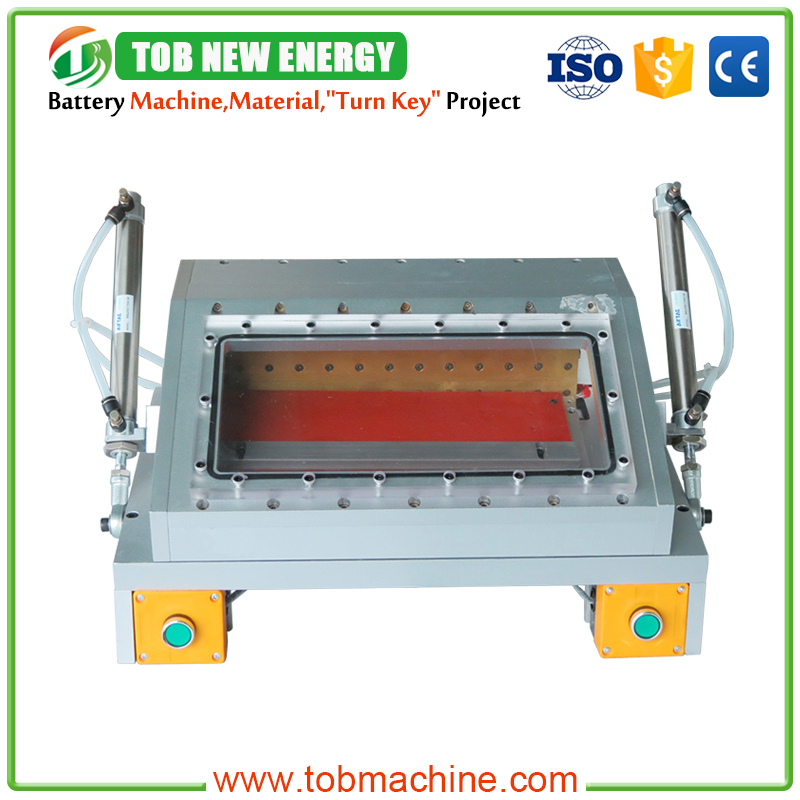

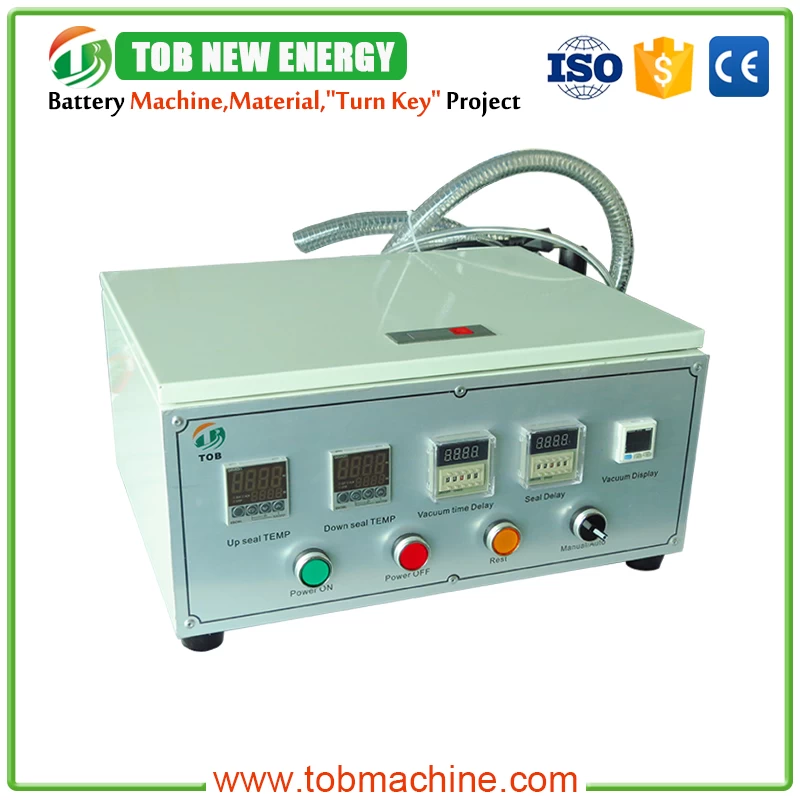

Product Display

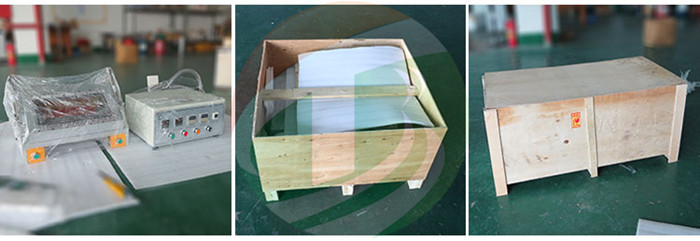

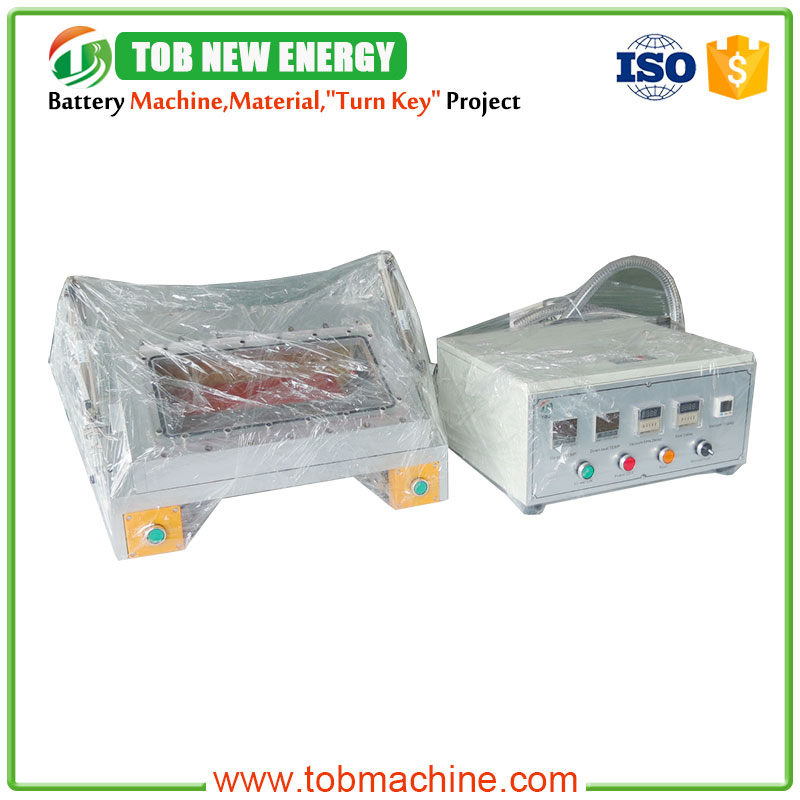

PACKAGE
