500mm Width Automatic Cutting Machine For Lithium Battery Electrode Big Pieces Preparation After Coating Process
SPECIFICATIONS

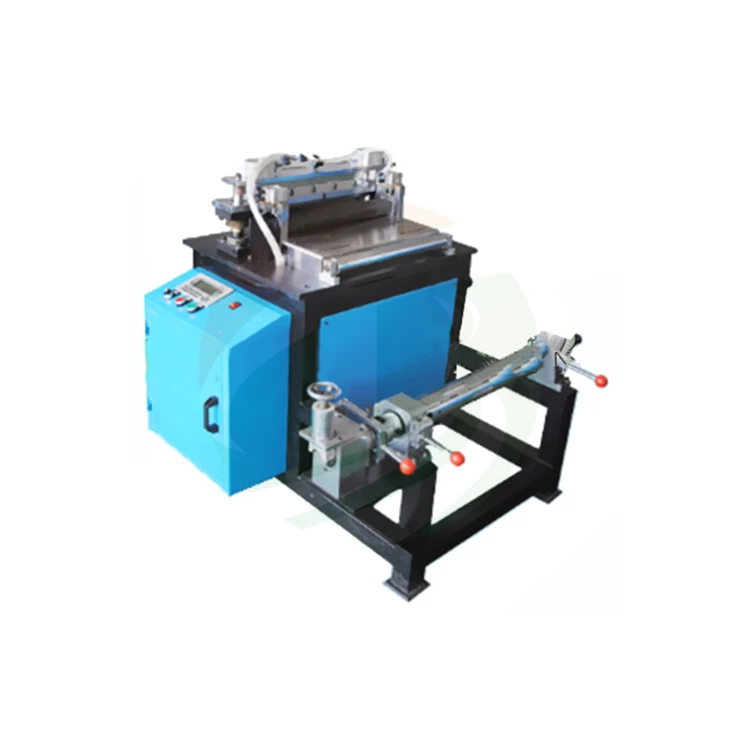

TOB-JK-CPJ-500Automatic Battery Cutting machine(roll cutting) is used for preparing big piece electrode after coating process if without continuous rolling press machine.
The Coated roll electrode will be cutted to big pieces by thisautomatic cutting machineand easy for Rolling press to increase electrode density.
|
Model
|
Automatic Battery Cutting Machine TOB-JK-CPJ-500
|
|
Working Voltage
|
AC110V/220V, 50/60HZ
|
|
Max. Power Consumption
|
1500W
|
|
Cutting Method
|
Automatic roll cutting for battery electrode
The cutting quantity, cutting length can be set,
it will be automatically stop when finish the setting work
|
|
Max Cutting Width
|
500mm, With Fixed length accuracy ±0.3mm, Can customized according request
|
|
Fixed cutting length
|
1mm to 10M can be set
|
|
Cutting Thickness
|
100 - 300 microns
|
|
Cutting Speed
|
0-4000times/Hour
|
|
Product Dimensions
|
1000mm(L) * 1100mm(W) *1000mm(H)
|
|
Net Weight
|
380kg
|
|
Warranty
|
One year limited warranty with lifetime support
|
