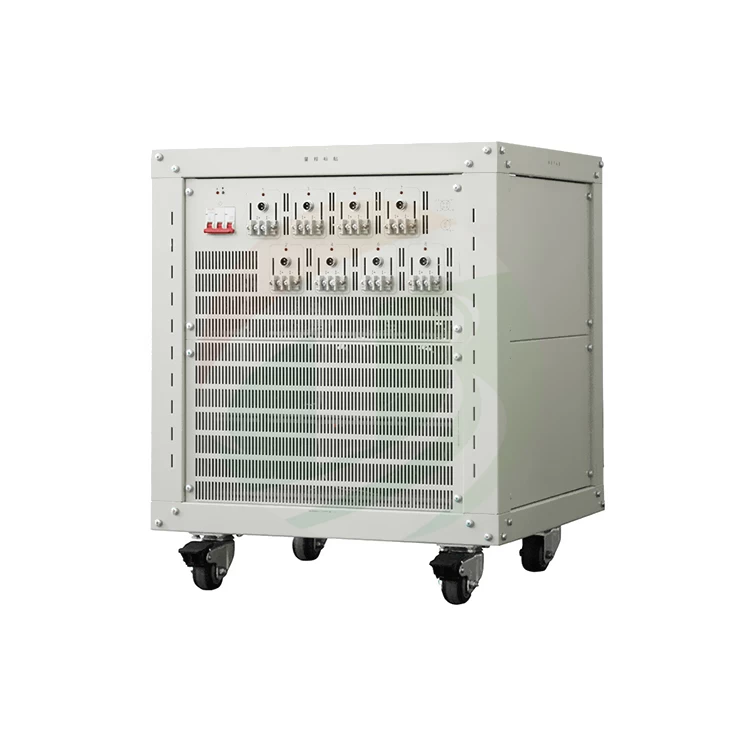

8 Channels 5V30A Battery and Super Capacitor Tester With Charge-discharge cycle Testing Function
SPECIFICATIONS
TOB-CT-4008-5V30A-NFA Battery and Super Capacitor Tester is mainly used for lithium battery and supercapacitor performance testing with charging and discharging life cycle testing system.
|
Project index
|
Parameter index
|
|
Input Power
|
AC 220V ±10% / 50Hz (AC110V/60HZ)
|
|
resolution
|
AD：16bit；DA：16bit
|
|
Input Resistance
|
≥1MΩ
|
|
Input Power
|
2127W
|
|
Channel Features
|
Constant Current Source and Constant Voltage Source
with Independent pairs of Closed-loop Structure
|
|
Channel Control Mode
|
Independent Control
|
|
Voltage
|
Per Channel Voltage Range
|
Charge: 25mV~5V；Discharge：25mV~5V
|
|
Discharge Min Voltage
|
2.5V
|
|
Accuracy
|
± 0.05% of FS
|
|
Stability
|
± 0.05% of FS
|
|
Current
|
Per Channel Current Range
|
Charge：150mA~30A；Discharge：150mA~30A
|
|
Accuracy
|
± 0.05% of FS
|
|
Stability
|
± 0.05% of FS
|
|
Power
|
Per Channel Output Power
|
150W
|
|
Stability
|
± 0.1% of FS
|
|
Time
|
Current Response Time
|
1ms (0-Full Range)
|
|
Step Time Range
|
≤(365*24 )hour/step，
Time Form Support 00：00：00(h、min:s、ms)
|
|
Data Recording
|
Record Condition
|
Lower sampling time：100ms
|
|
Lower sampling Voltage：5mV
|
|
Lower sampling Current：30mA
|
|
Record Frequency
|
10Hz
|
|
Charge
|
Charge Mode
|
Constant Current Charge、Constant Voltage Charge、
Constant Current and Constant Voltage Charge、CPC
|
|
End Conditon
|
Voltage、Current、Relative Time、Capacity
|
|
Discharge
|
Discharge Mode
|
CCD、CPD、CRD
|
|
End Condition
|
Voltage、Current、Relative Time、Capacity、
|
|
Pulse
|
charge
|
CCC
|
|
Discharge
|
CCD
|
|
Min Pulse Width
|
500ms
|
|
Automated Switch
|
Automated swith from charge to discharge for each pulse
|
|
End Condition
|
Voltage, Test Time
|
|
Cycle
|
Loop Measure Range
|
1~65535 times
|
|
Max Steps Per Loop
|
254
|
|
Nested Loop
|
Nested loop Function，Max Support 3 Layers
|
|
Protection
|
Software Protection
|
l Power-down Data Protection
|
|
l Off-line Testing Function
|
|
l Setting Protection Condition，Setting Parameter：
Low Voltage limit、Upper Voltage limit、Low Current limit、
Upper Current limit、Delay Time
|
|
Hardware Protection
|
Additional Anti-reverse Protection Model
|
|
Voltage and Current Testing Sample
|
4-wire connecting
|
|
Noise
|
<85dB
|
|
Database
|
MySQL Database
|
|
A Means of Communication of Upper Machine
|
TCP/IP Protocol
|
|
Data Output
|
EXCEL、TXT、Graph
|
|
Communication Interface
|
Ethernet Port
|
|
Per Unit Main Channels No.
|
8
|
|
Dimensions
|
12U，482*508*378(mm)
|
