Semi-Automatic Adjustable Slitter Machine for Electrodes of Cylinder Battery And Prismatic Battery Without Changing Cutter Blade
SPECIFICATIONS
1 TOB-ASM-500Adjustable slitting machine is a semi-automatic slitting machine (roll slitting) for preparing electrode of cylinder batteries and prismatic batteries in R&D laboratories and production line.
2The Adjustable slitting machine is with cutting width adjusting range from 25-300 mm without changing cutter blade.
|
Model
|
Adjustable Slitter Machine TOB-ASM-500
|
|
Source voltage
|
AC110v-220V customized according to requirements. 50HZ/60HZ
|
|
Power
|
1000W
|
|
Warranty
|
One year limited warranty and lifetime support
|
|
Compressed air
|
≥ 0.6MPa
|
|
Vacuum air source
|
≤ -0.095MPa
|
|
Suitable electrode width
|
≤ 500mm
|
|
Slitting width
|
25-300mm, adjustable
|
|
Dimension
|
1300*900*1400mm
|
|
Weight
|
200kg
|
|
Slitting speed
|
0-30m/min
|
|
Knife life
|
＞200 000 times
|

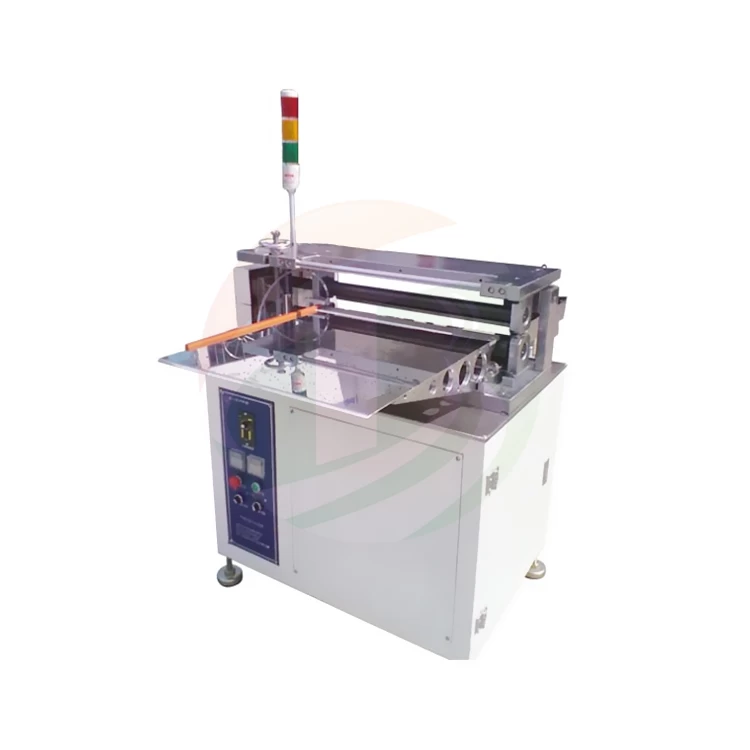

PRODUCT DISPLAY
PACKAGE AND SHIPPING
|
1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
|
SERVICES
|
1 We supply machines with battery technology support.
2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.
3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.
4 We can also supply a full set of battery technology for battery design, research and producing.
|
