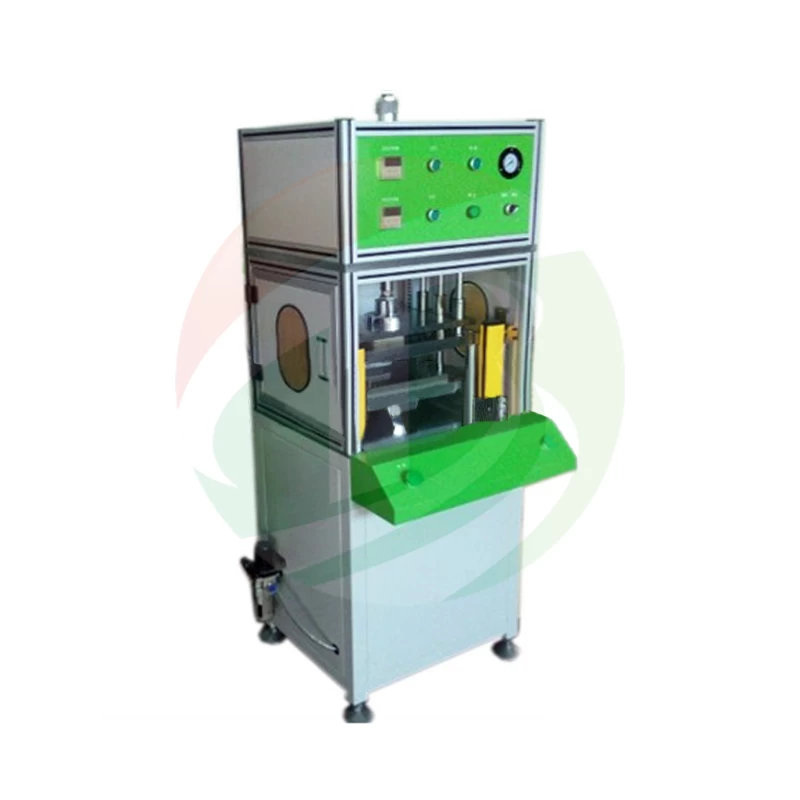

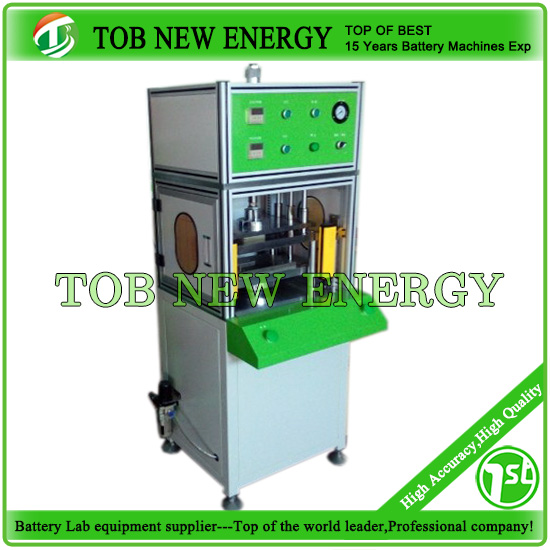

Aluminum Film Forming Machine For Pouch Cell Case

TOB-CK150 Aluminum laminated film punching forming machine is used for lithium polymer battery/ pouch cell cup forming in the production line of making pouch cell batteries.



Semi-automatic Aluminum-Laminated Films Punching Forming Machine Used For Pouch Cell Case/Cup Forming


SPECIFICATIONS



1 TOB-CK150Aluminum laminated film punching forming machineis used for lithium polymer battery/ pouch cell cup forming in the production line of making pouch cell batteries.

2 The machine is used to prepare polymer cases made ofAluminum Laminated Films.


Model

Pouch Cell Case Forming Machine  TOB-CK150

Working Voltage

110 - 240V AC, single phase 50/60HZ

Power

100 W

Warranty

One Year limited warranty with lifetime support

Advantages

1 Structure of guide pin, slide up/down smoothly with high precision

2 Change mould, adjust tensile depth simply, quickly

3 Use screen and casing protection, guarantee safety

4 High strength of chrome steel and aluminum alloy,

surface roasts the paint processing through environmental protection electroplating

5 With manual and auto two kinds operating mode,

Customer can choose freely according to their needs.

Punching

aluminum-laminated

film thickness

0.1-0.2mm

Max Die size

(L*W*D)

200*200*6mm, Customized according to needs

Air Pressure Requirement

0.5 - 0.7 MPa (Air Compressor is not included)

Max. Cup Depth to Punch

< 6.0 mm

Max. Punching Pressure

5 metric tons

Stroke Frequency

< 8 seconds per trial

Product Dimensions

700mm(L) x 640mm(W) x 1650mm(H)

Net Weight

220 kg

Shipping Dimensions(L*W*H)

69" x 31" x 19", 176*80*74cm


PRODUCT DISPLAY

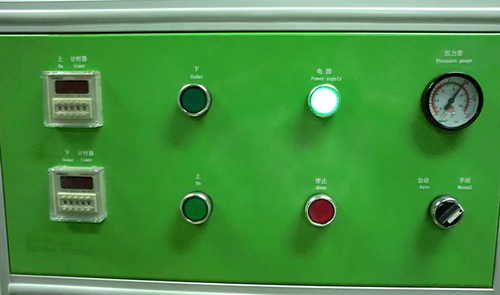

English panel for pouch forming machine

English panel for pouch forming machine

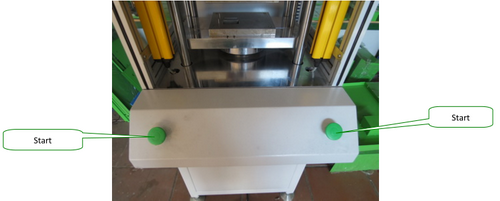

Double start button

Double start button for pouch forming machine

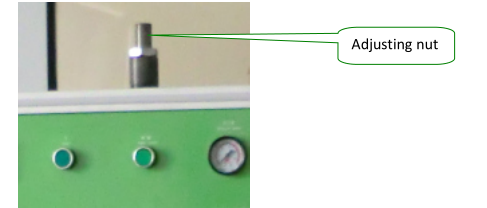

Punching thickness adjusting

Punching thickness adjusting for pouch forming machine



PACKAGE AND SHIPPING

1 Standard exported package : Internal anticollision protection, external export wooden box package

2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode

3 Responsible for the damage during shipping process, change the damage part for free

4 Supply with suitable voltage input and power plug according to customer's country requirements.

5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.


SERVICES

1 We supply machines with battery technology support.

2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.

3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.

4 We can also supply a full set of battery technology for battery design, research and producing.
