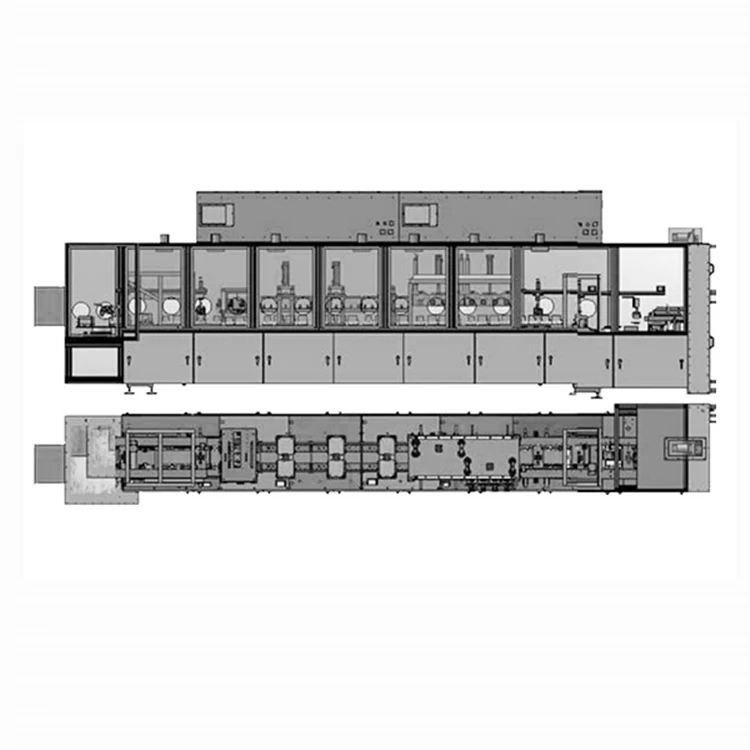

Automatic Electrolyte Battery Filling Using Conveyor System For Polymer Battery Filling System
SPECIFICATIONS
This Automatic Battery Filling System is automatic polymer battery filling machine, it includes Bar code scanning, weigh before filling, automatic injection electrolyte, automatic vacuum holding, automatic vacuum sealing, weigh after filling, automatic discharging, etc.

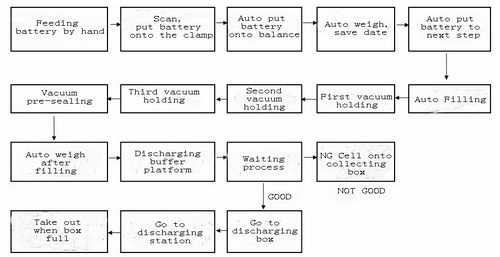

Automatic battery filling system work process
|
Model
|
Automatic Battery Filling System TOB-AFMY-200
|
|
Source voltage
|
AC220V, Single phase. Customized according country request
|
|
Power
|
10KW
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Compressed air
|
0.6MPa
|
|
Output
|
6ppm, according to vacuum holding and sealing time
|
|
Vacuum flow
|
350M3/hour
|
|
Suitable battery size
|
Length 130-285mm, Width 100-170mm, Thickness 8-11mm
|
|
Structure configuration
|
Trough body
|
3SET
|
|
Battery rotating mechanism
|
1SET
|
|
Automatic feeding mechanism
|
1SET
|
|
Weight before filling
|
1SET
|
|
Into the jig transfer institution
|
1SET
|
|
Pour institutions without electric pump
|
1SET
|
|
Vacuum holding box
|
3SET
|
|
Vacuum pre-sealing
|
1SET
|
|
Discharge transfer institution
|
1SET
|
|
Weight after filling
|
1SET
|
|
Automatic discharging device
|
1SET
|
|
Automatic receiving institutions
|
2SET
|
|
With PLC, Touch screen,
|
|
|
Driving motor
|
2SET
|
|
Project control system
|
1SET
|
|
CAM drive motor
|
2SET
|
|
Vacuum holding box
|
1-99s can be set, with -95kpa vacuum degree
|
|
Vacuum pre-sealing machine
|
Sealing stamp width : 8mm
Sealing head length : 300mm
Sealing TEM : Max 260℃, adjustable
Sealing Head parallelism : ±0.02mm
Vacuum degree : -90KPa
|
|
Dimension (L*W*H)
|
8000*1500*2400mm
|
|
Weight
|
4000kg
|
