Automatic Desktop Grinder Machine with Agate Mortar And Pestle For Lab Research
SPECIFICATIONS
TOB-SFM-8 is designed for grinding & mixing small batch of chemical and compound automatically for R&D laboratory. Its mortar and height adjustable pestle are designed for efficient, easy, and uniform grinding. The mortar can be taken off easily for cleaning. It is an excellent tool for preparing various ceramic materials in research lab so as to save labor. Grinding time can be set using the automated controller. Minimum granularity can be as small as microns even nanometers.
|
Working Voltage
|
Input: 24V DC
110- 240V AC to 24V DC power adapter is included
Power adapor is UL , TUV, CSA and CE approval for worldwide use.
|
|
Max. Power Consumption
|
150W
|
|
Grinding Bowl
|
Agate Mortar & Agate Head Pestle included
Mortar Dimensions: Ø120mm x 34mm Dia.
|
|
Grinding Speed & Pressure
|
Mortar: 0 - 10rpm
Pestle: 0 - 80rpm adjustable
Grinding pressure is adjustable by spring
|
|
Dimension
|
240mm(L) x 240mm(W) x 500mm(H) or 9.4" x 9.4" x 19.7"
|
|
Net Weight
|
15kg
|
|
Warranty
|
One year limited warranty with lifetime technical support
|
|
Compliance
|
CE, TUV, UL, CSA certified in power supply
Machine is safe 24VDC input, which can be used without any safety certification
|
|
Application note
|
This compact automatic grinder can be put into a glove box via
air-lock port and operate under inert gas
|

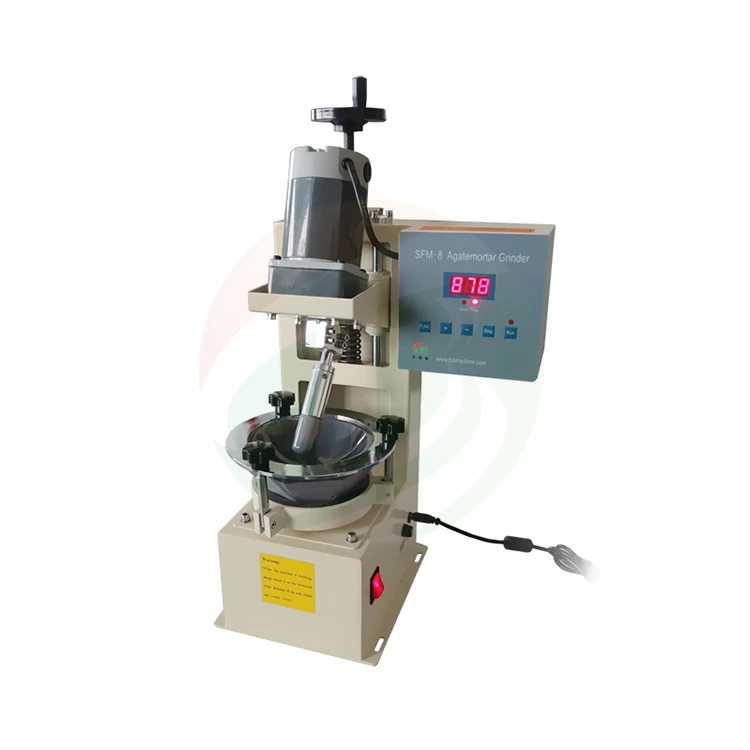

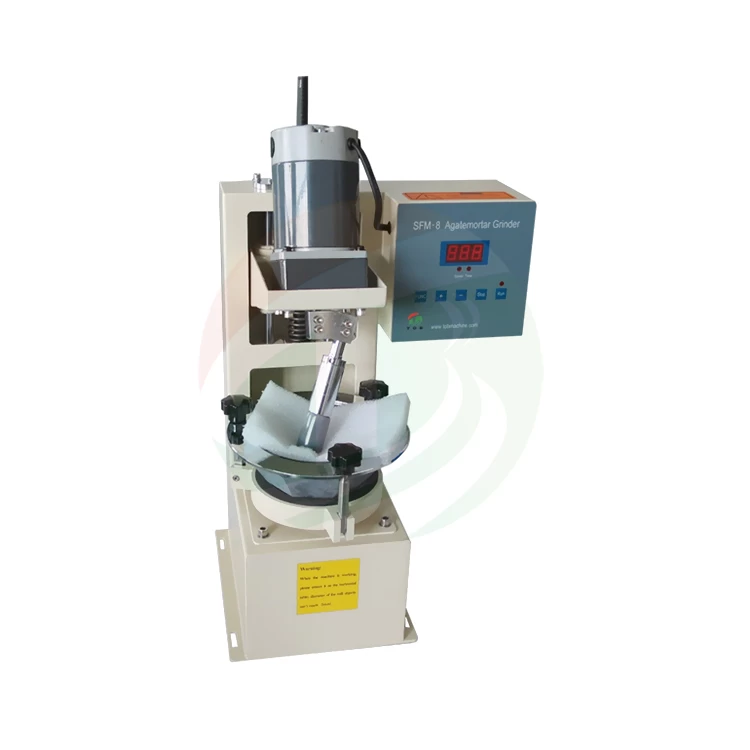

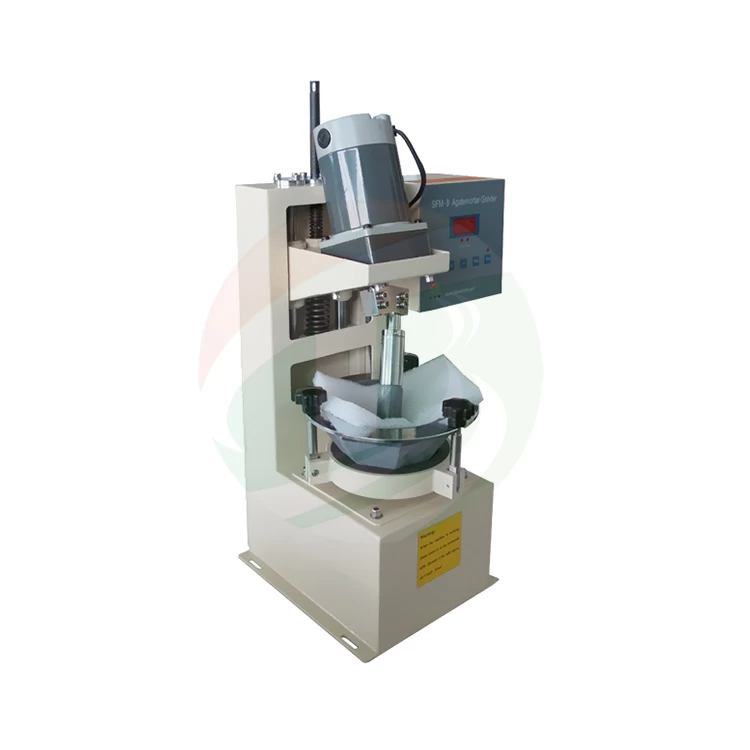

PRODUCT DISPLAY
PACKING
