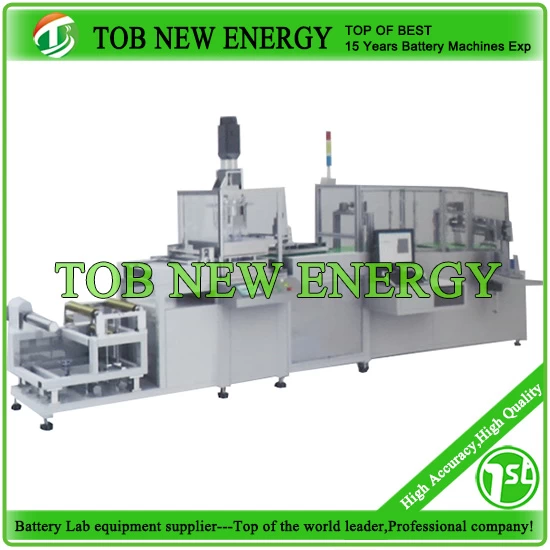

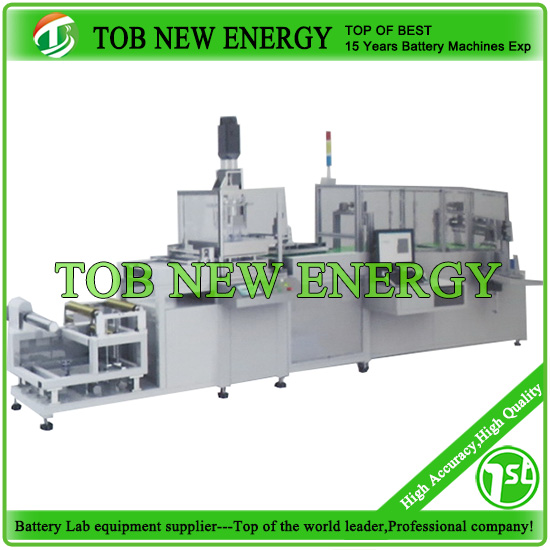

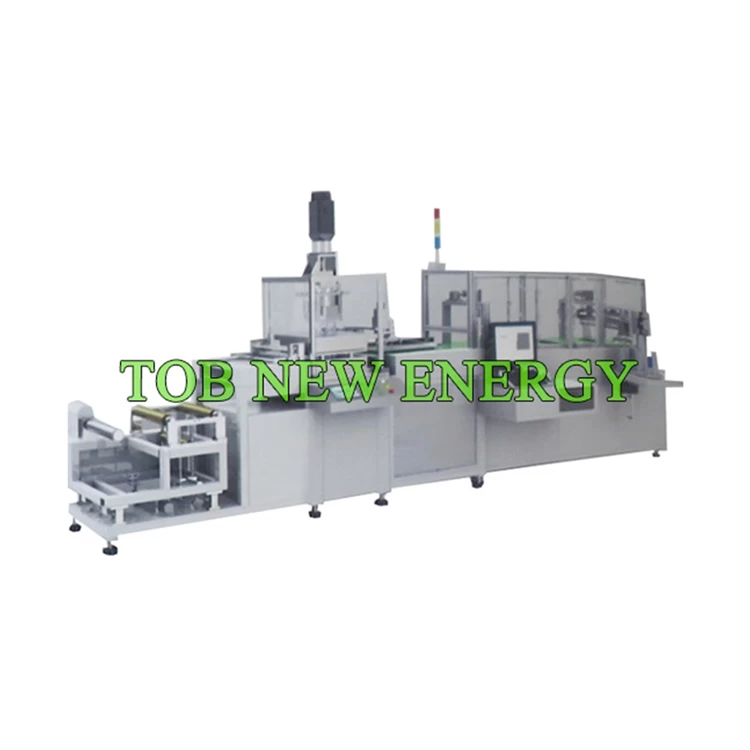

Automatic Die Cutting / Punching Machine For Anode and Cathode Electrode for Stacking Pouch Cell
SPECIFICATIONS
This machine is used for make the roll electrode into cell shape electrode automatically.
1 Roll electrode feeding automatically, controlled by Photoelectric switch
2 Adopt laser module to get high efficiency and accuracy
|
Model
|
TOB-04-350-DC
|
|
Source voltage
|
AC 220V, 50HZ
|
|
Power
|
4.2KW
|
|
Air compression
|
0.6-07MPa
|
|
Suitable battery size
|
≤350*200mm
|
|
Max electrode width
|
360mm
|
|
Cutter die height
|
23.8mm
|
|
Accuracy of struggle
|
0.1mm
|
|
Capacity
|
40-60times/min
|
|
Dimension
|
2800*1400*900mm
|
|
Weight
|
2500kg
|

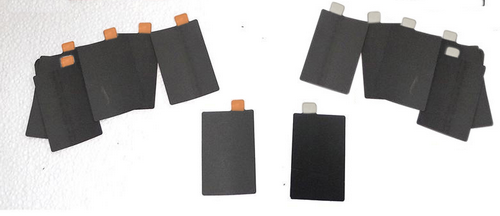

Finished electrode of the die cutter machine
