5-channel Automatic 18650 Battery Grading Sorting Machine For Battery Pack Preparing
SPECIFICATIONS
The Battery Automatic Sorting Machine is a must equipment for Battery Pack
Manufacturer for voltage and resistance testing and sorting.
|
Model
|
TOB-FX-05
|
|
Voltage
supply
|
220V/50HZ(or
can be customized)
|
|
Power
|
1.6kw
|
|
Air Pressure
|
0.4-0.8Mpa
|
|
Display screen
|
7.5 inch touch screen, 3-axis PLC programmer
|
|
Suitable for
|
18650 battery
|
|
Receiving channel
|
6 channel, 5 sorting and matching channel,1 unqualified
channel
|
|
Internal resistance setting
|
0mΩ-999.9 mΩ
|
|
Voltage setting
|
0-6V
|
|
Weight
|
<200KG
|
|
Code sweeping function
|
No, can be customized
|
|
Production efficiency
|
Without code sweeping, about 5000pcs/h
|
|
With code sweeping, about 3000pcs/h
|
|
Feeding
|
By hopper,
500pcs cells one time
|
|
External
connection
|
Customizable
automatic connection padding machine
|
|
Tester
|
Standard tester: HOPETECH HK3560
|
|
High speed tester
|
|
Voltage accuracy 0.00005V
|
|
Internal resistance precision 0.01 mΩ
|
|
Motion device
|
Step shifting using closed-loop stepper motor, and the positioning
is accurate.
|
|
The synchronous belt conveys the cell to prevent the cell surface
damaged
|
|
Advantage
|
Automatic collection the
production quantity to show current production efficiency
|
|
Test data
can be stored in U disk
|
|
Customizable
scan code and database data docking
|
|
Optional
cell dynamic tester, Practical embodiment the quality and load performance of
cell
|
|
The
equipment debugging is simple, easy to learn and easy to understand, with
fault alarm
|
|
Package size
|
L1150*W930*H1390mm
|
|
Weight
|
About 250kg
|

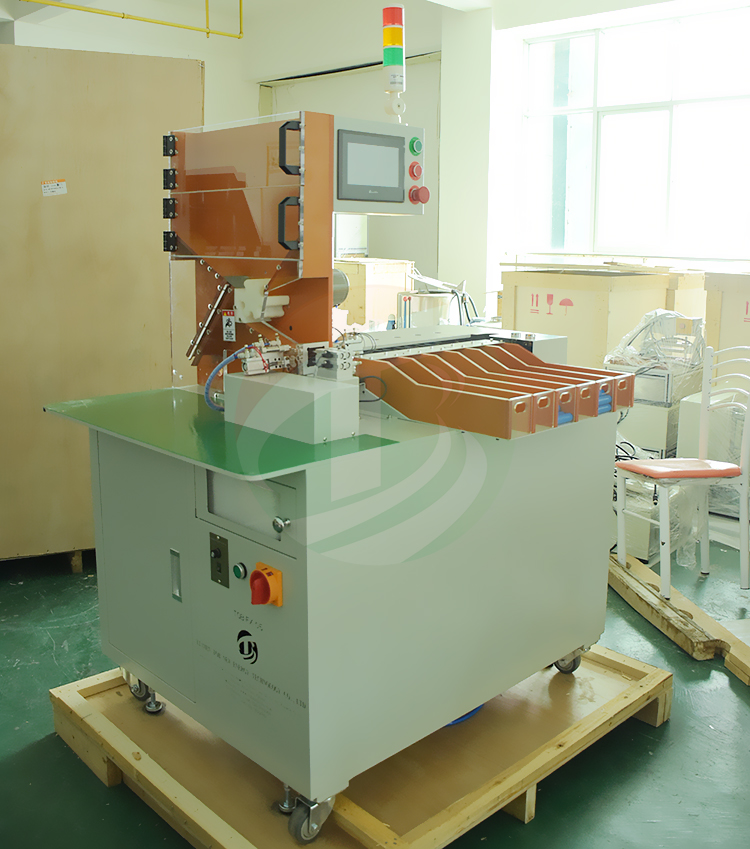

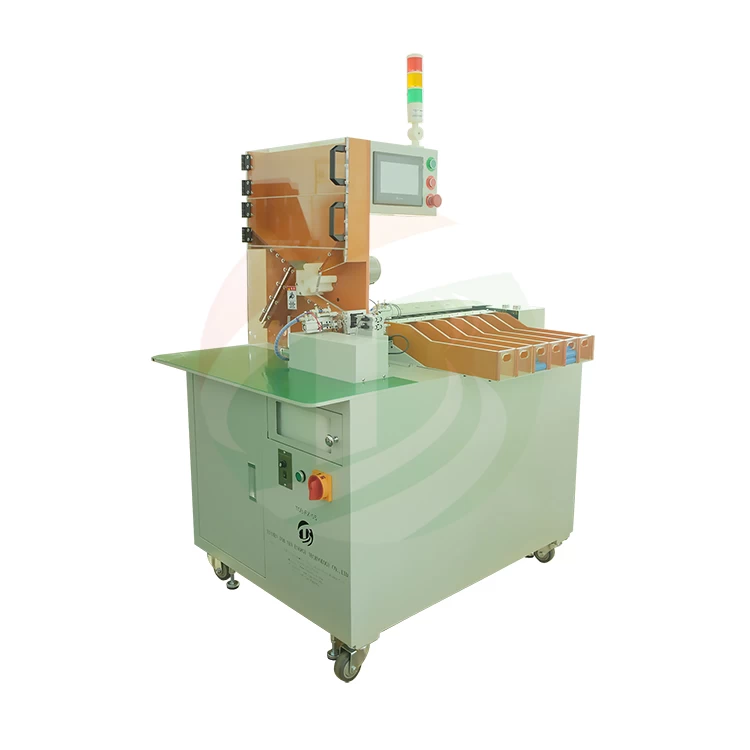

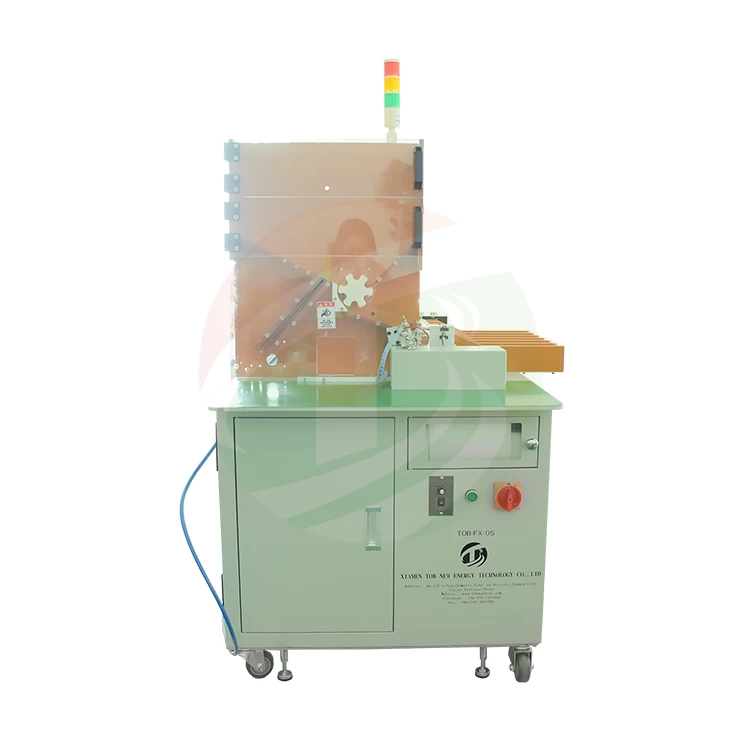

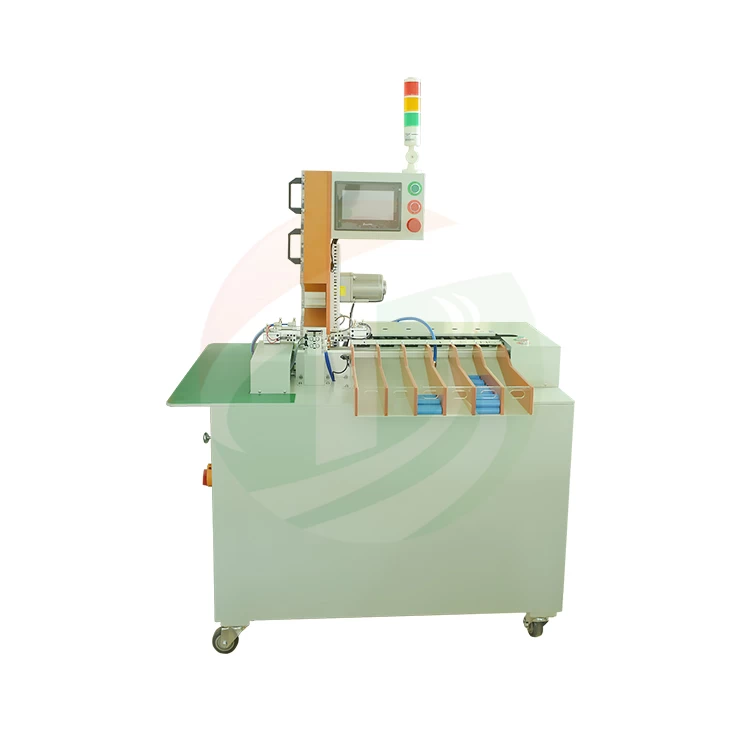

PRODUCT DISPLAY

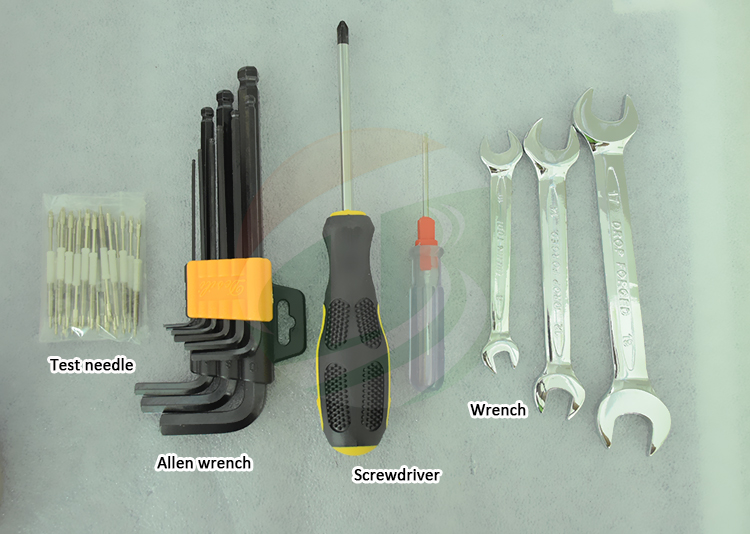

PACKAGE
