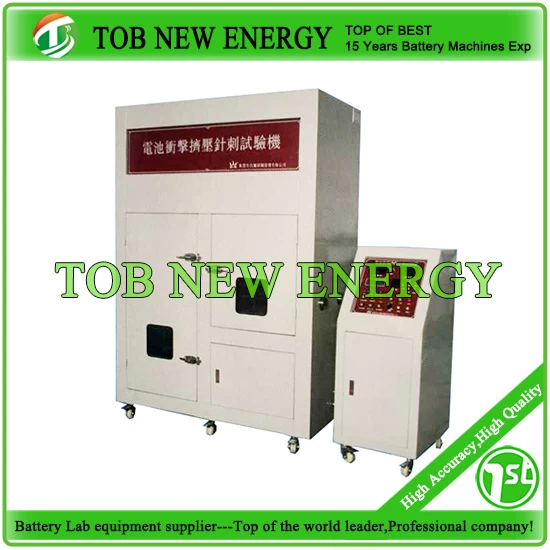

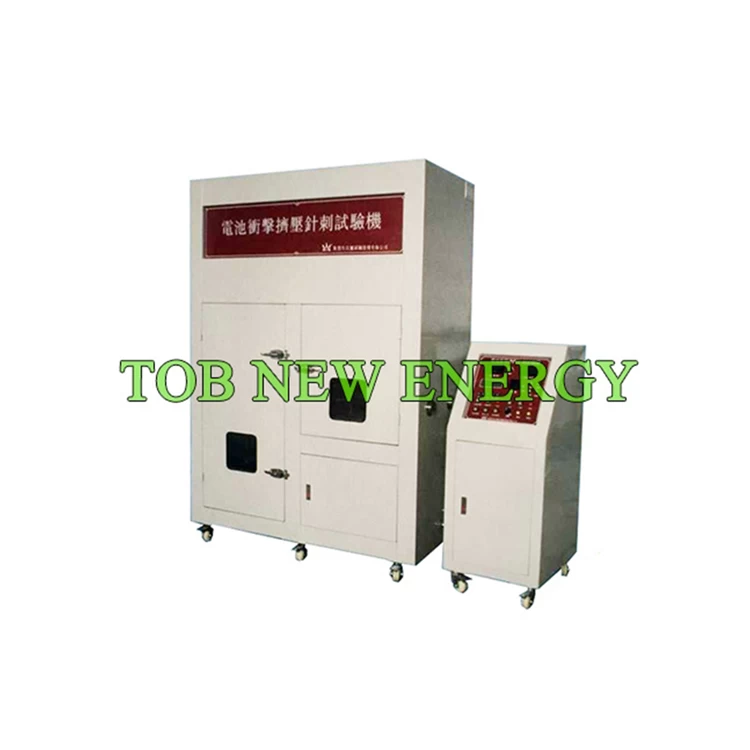

Battery Nailing Needling and Crushing Testing Machine For Lithium Battery Safety Performance Testing
SPECIFICATIONS
|
Model
|
Battery Nailing Needling And Crushing Machine TOB-BE-6048
|
|
Testing space
|
W200*H200*D200mm
|
|
Testing box dimension
|
W1480*D720*H2040mm
|
|
Controller dimension
|
W500*D500*H1200m
|
|
Source voltage
|
AC 380V, 50HZ
|
|
Power
|
2000W
|
|
Weight
|
About 450kg
|
|
Falling Ball weight
|
9.1kg、10kg
|
|
Falling Ball height
|
610~1000mm(Digital can be set)
|
|
Bar Diameter
|
15.8mm or 7.9mm（can choose）
|
|
Power test model
|
Electric、Free fall
|
|
Pressure range
|
1KN~15KN(Standard is 13KN)
|
|
Upper platen diameter
|
150mm（no less than 20cm2）
|
|
Power error range
|
1%Up and down
|
|
Needing speed
|
10~150mm/s（stay speed can be control）
|
|
High temperature needle
|
Diameter
|
|
Delay function
|
0~9999second
|
