Compact Battery Pouch Vacuum Sealing Machine Used For Lithium Aluminum Film Vacuum Pre-sealing Before Electrolyte Filled And Final Vacuum Seal After Formation
SPECIFICATIONS
1 Thebattery pouch vacuum sealing machineTOB-JK-200 is mainly used forsealing aluminum-laminated casein glove box after injection of electrolyte into pouch Li-ion cell or after formation for final seal (polymer Li-Ion cell).
2 The vacuum sealing machine is with sealing machine and control box separately design, When used for pre-sealing, the sealing unit can be used in the glove box.
3 For final sealing, it can be used for lab or small quantity producing, if with production line, Suggest use the vacuum sealing machine for final pouch. (The simple vacuum sealing machine TOB-SVS system, Or the Turntable type vacuum sealing machine TOB-TVS system)
|
Model
|
Vacuum pre-sealing machine TOB-JK-200
|
|
Power Supply
|
110V-240V, selectable, Single Phase 50/60Hz
|
|
Power
|
1200W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Sealing Pressure
|
Vacuum chamber lid and sealing die need to be drived
by compressed high purity inert gases with recommended 60 psi
|
|
Vacuum degree
|
-90kpa-0, adjustable
|
|
Sealing head length
|
200mm, customize
|
|
Sealing stamp width
|
5mm, customized
|
|
Sealing temperature
|
RT-250℃, adjustable with control accuracy of +/-2°C
|
|
Heating Timer
|
0 - 99 seconds Adjustable
|
|
Air supply
|
0.4-0.6MPa
|
|
Dimension(L*W*H)
|
Sealing Unit : 600mm(L) x 300mm(W) x 500mm(H)

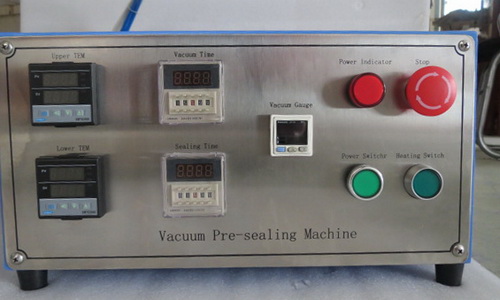

Control Unit: 400mm(L) x 450mm(W) x 200mm(H)
|
|
Package dimension
|
660*600*590mm
|
|
Net weight
|
Sealing machine : 45kg
Control box : 15kg
|
|
Package weight
|
75kg
|
|

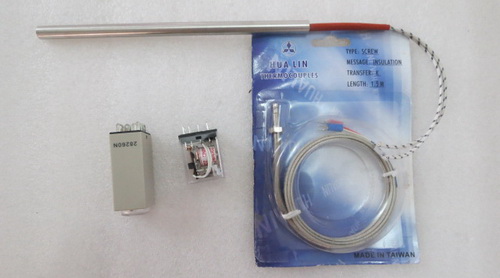

Accessories parts
|
1 piece heating pipe
3 meters seal components
1 piece intermediate relay
1 piece time relay
1 customized power plug line
|

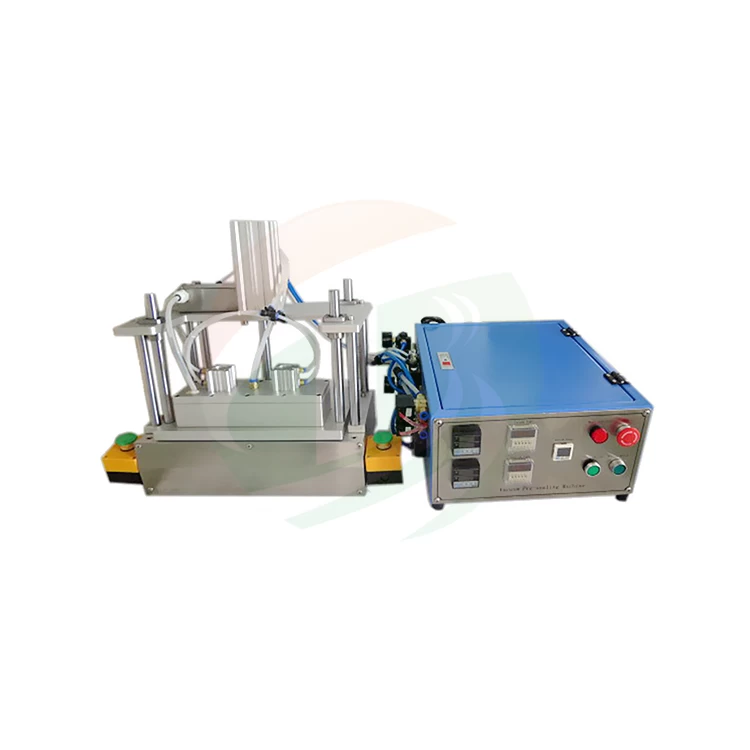

PRODUCT DISPLAY
