Battery Sealing Machine For Pouch Top-side Sealing

TOB-JD-TSS-300 Battery Sealing Machine is a compact heating sealer for sealing aluminum-laminated films during pouch cell (polymer Li-Ion cell) case preparation with 300mm length sealing bar.



Lithium Battery Sealing Machine Used For Pouch/Case Top and Side Heating Sealing Adopts Soft Sealing Method


SPECIFICATIONS



1 TOB-JD-TSS-300Battery Sealing Machineis a compact heating sealer for sealing aluminum-laminated films during pouch cell (polymer Li-Ion cell) case preparation with 300mm length sealing bar.

2 The Battery Sealing Machineadopts soft sealing bar, The sealing is copper in bottom and aluminum and Silicone rubber piece on top. So it can be used for both top and side sealing for pouch cell.

3 It can prepare the pouch cell for the injection of electrolyte by sealing the side and top of the pouch cell with tab.

4 The sealing bar can be customized according to requirement, Sealing head length 200-400 mm customized, and we can also put different sealing width in one sealing head.


Model

 Battery Sealing Machine TOB-JD-TSS-300

Source voltage

AC110V-240V, Customized

Heating pipe power

1000W

Warranty

One Year limited warranty with lifetime support

Max sealing length

300mm

Sealing time

0-99s can be set

Sealing time accuracy

±0.1s

Sealing temperature

0-250℃

Temperature control accuracy

±2℃

Parallelism of upper and lower

sealing head

0.01mm

Sealing stamp width

6mm(customized)

Sealing stamp thickness

0.19-0.3mm

Dimension

355*470*540mm

Weight

73kg

Shipping weight

90kg

Shipping dimension

45*57*74cm


PRODUCT DISPLAY

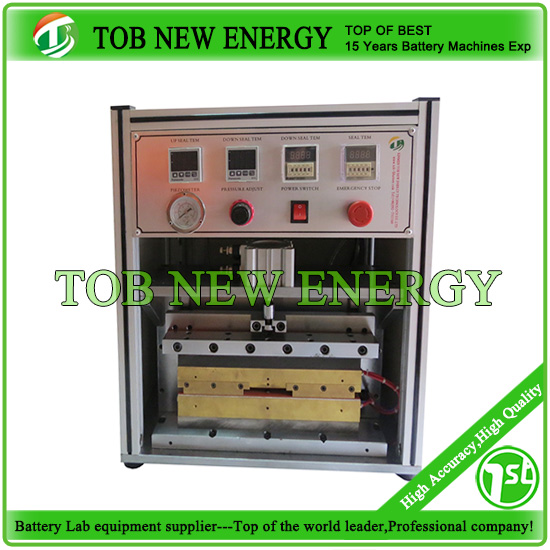

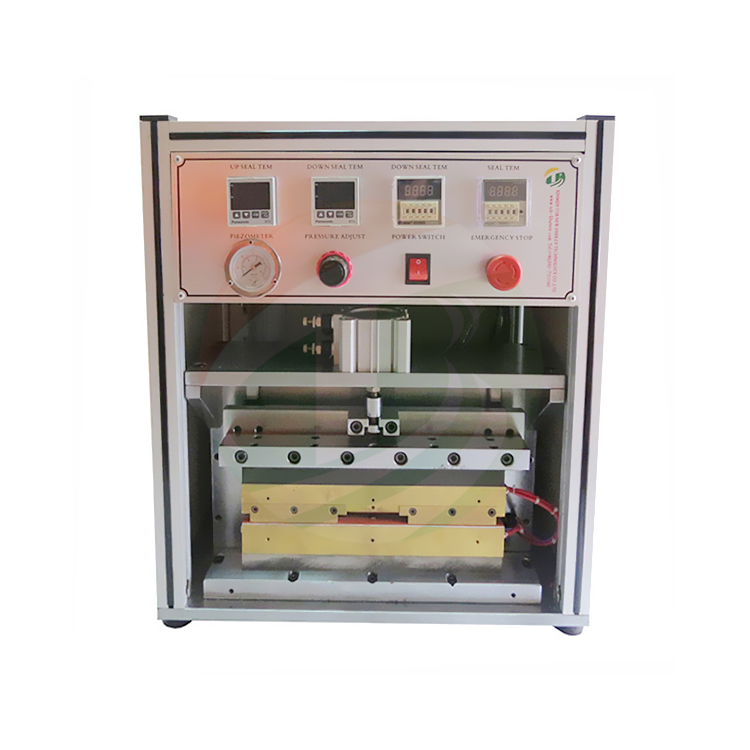

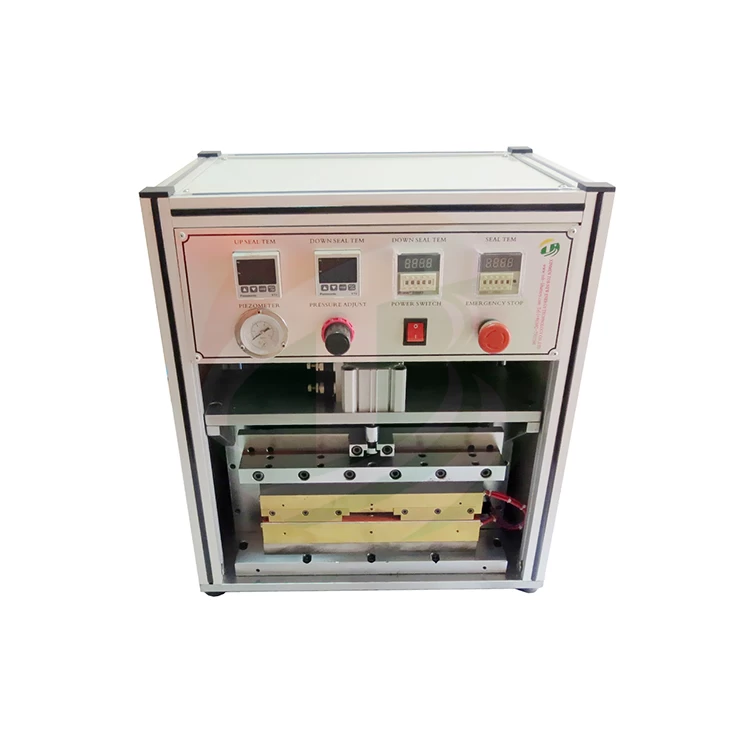

Battery Sealing Machine

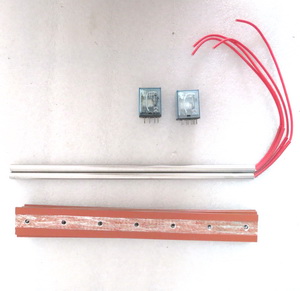

Battery sealing machine accessories - Heating tube, Relay, And Aluminum and Silicone plate

   Battery sealing machine accessories

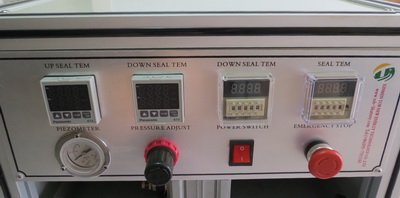

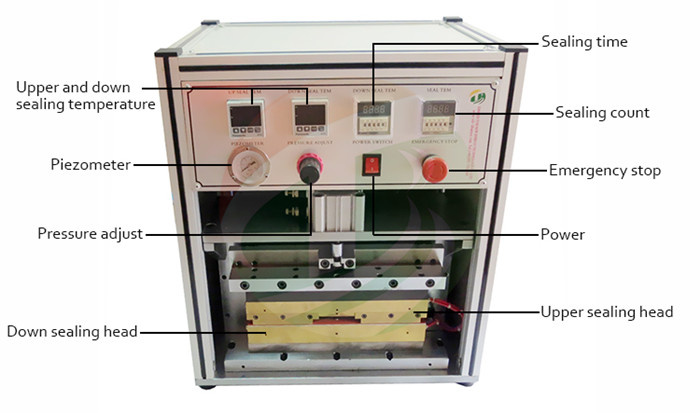

English panel for battery sealing machine

English panel for battery sealing machine

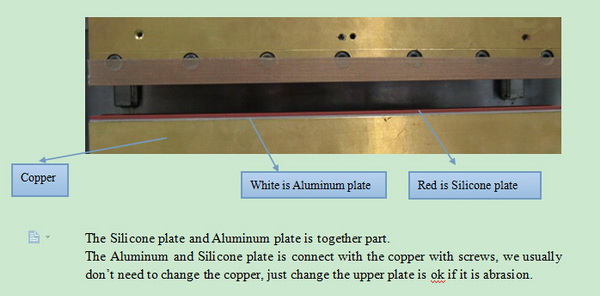

Explain for soft sealing method

Explain for soft sealing method
